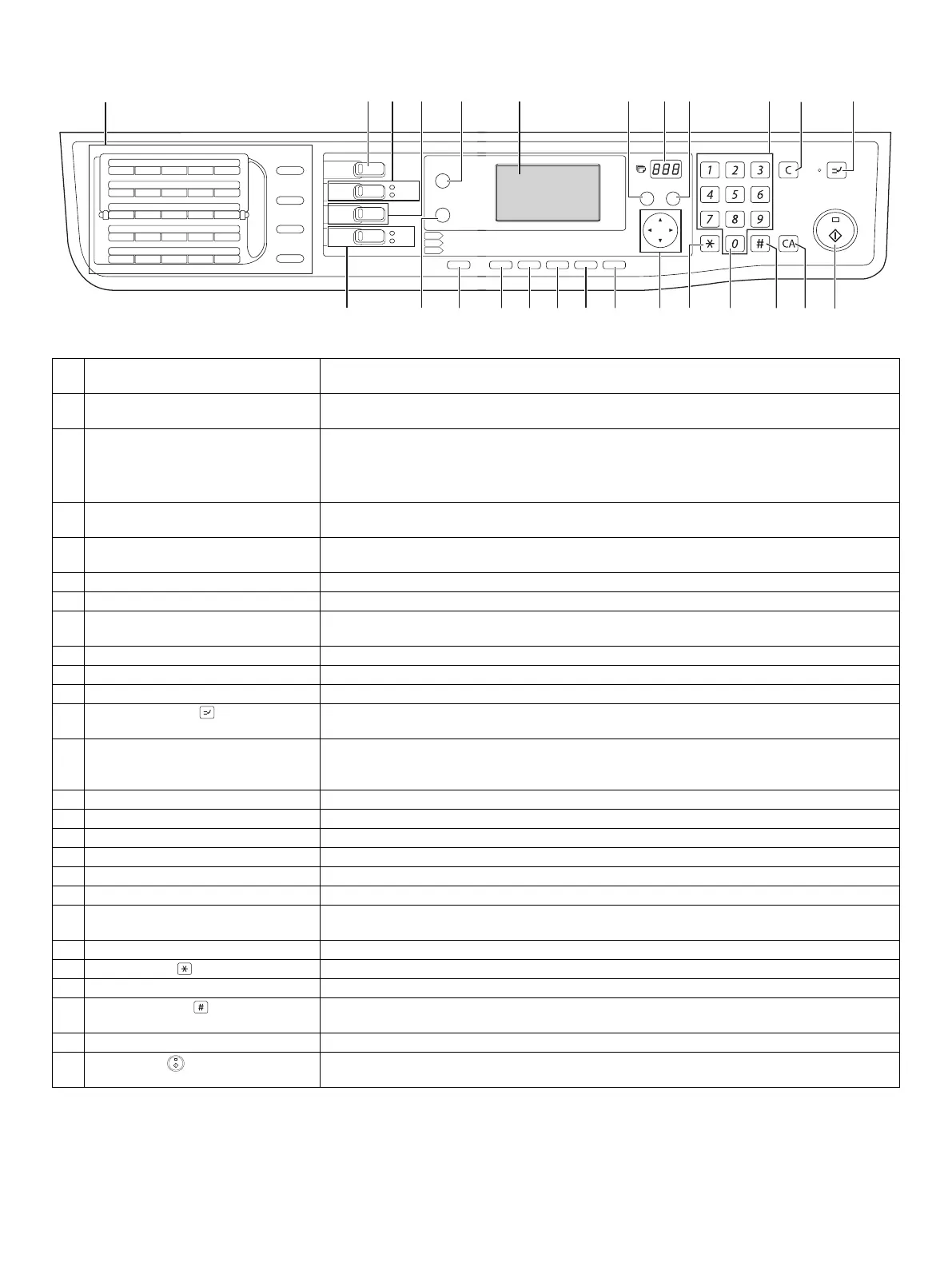

MX-M182 EXTERNAL VIEWS AND INTERNAL STRUCTURES 5-3
3. Operation Section
21 22 23 24 25
16 17 18 19 20
11 12 13 14 15
06 07 08 09 10
01 02 03 04 05
EXPOSURE
COLOUR MODE
PROGRAM
COPY
SCAN
FAX
SPECIAL
FUNCTION
FAX STATUS
SHIFT
SYMBOL
SPACE/–
SPEAKER
REDIAL/PAUSE
SPEED
COMM. SETTING
LINE
DATA
DATA
ON LINE
FAX
SCAN
PRINT
COPY
12345
13 14 15
ABC DEF
JKLGHI MNO
TUVPQRS WXYZ
@.-
_
READ-END
ACC. #-C
BACK
OK
INTERRUPT
COPY RATIO
ADDRESS
ADDRESS
DUPLEX SCAN
DUPLEX SCAN
2-SIDED COPY
PAPER SELECT
RESOLUTION
RESOLUTION
AUTO IMAGE
FORMAT
BROADCAST
OUTPUT
ORIGINAL SIZE
ORIGINAL SIZE
6 7 8 9 10 11 12
16 17 18 19 20 21 22 23 24 25 26
1 Keys for fax function (when the fax
option is installed)
These are used in fax mode.
2 [COPY] key / indicator Press to select copy mode. If pressed when "Ready to copy." appears or during warm-up, the total
number of sheets used appears while the key is pressed.
3 [PRINT] key / indicator Press to select print mode.
• ONLINE indicator Print jobs can be received when this indicator is lit.
• DATA indicator This lights steadily when there is a print job in memory that has not been printed, and blinks
during printing.
4 [SCAN] key / indicator Press to select scan mode. To use the machine as a network scanner, see the "Operation Guide
(NETWORK EXPANSION KIT)" that accompanies the machine.
5 [FAX STATUS] key (when the fax option
is installed)
This key is used in fax mode.
6 Display Shows various messages.
7 [BACK] key Press to return the display to the previous screen.
8 Copy number display The selected number of copies appears. During copying, this shows the remaining number of
copies.
9 [OK] key Press to enter the selected setting.
10 Numeric keys Use to select the number of copies.
11 [C] key Press to clear the set number of copies or stop a copy run.
12 [INTERRUPT] key ( ) / INTERRUPT
indicator
Interrupts a copy run to allow an interrupt copy job to be performed.
13 [FAX] key / indicator (when the fax option
is installed)
LINE indicator, DATA indicator
This key is used in fax mode.
14 [SPECIAL FUNCTION] key Press to select special functions.
15 [EXPOSURE] key Use to select the exposure mode. "AUTO", "TEXT", or "PHOTO" can be selected.
16 [PAPER SELECT] key Use to manually select a paper tray.
17 [COPY RATIO] key Press to select a reduction or enlargement copy ratio.
18 [AUTO IMAGE] key Press to have the copy ratio selected automatically.
19 [OUTPUT] key Use to select the sort function.
20 [2-SIDED COPY] key
(MX-M182D/MX-M202D/MX-M232D)
Select the two-sided copying mode.
21 Arrow keys Press to move the highlighting (which indicates that an item is selected) in the display.
22 [ACC.#-C] key ( ) Press the end the use of an account and return the display to the account number entry screen.
23 [0] key Press during a continuous copy run to display the number of copies completed.
24 [READ-END] key ( ) When copying in sort mode from the document glass, press this key when you have finished scanning
the original pages and are ready to start copying.
25 [CA] key Clears all selected settings and returns the machine to the default settings.
26 [START] key ( ) / indicator Copying is possible when this indicator is on. Press the key to start copying. This indicator blinks when
auto power shut-off mode has activated. Press the key to return to normal operation.
