MX-M182 OPERATIONAL DESCRIPTIONS 11-1
[11] OPERATIONAL DESCRIPTIONS

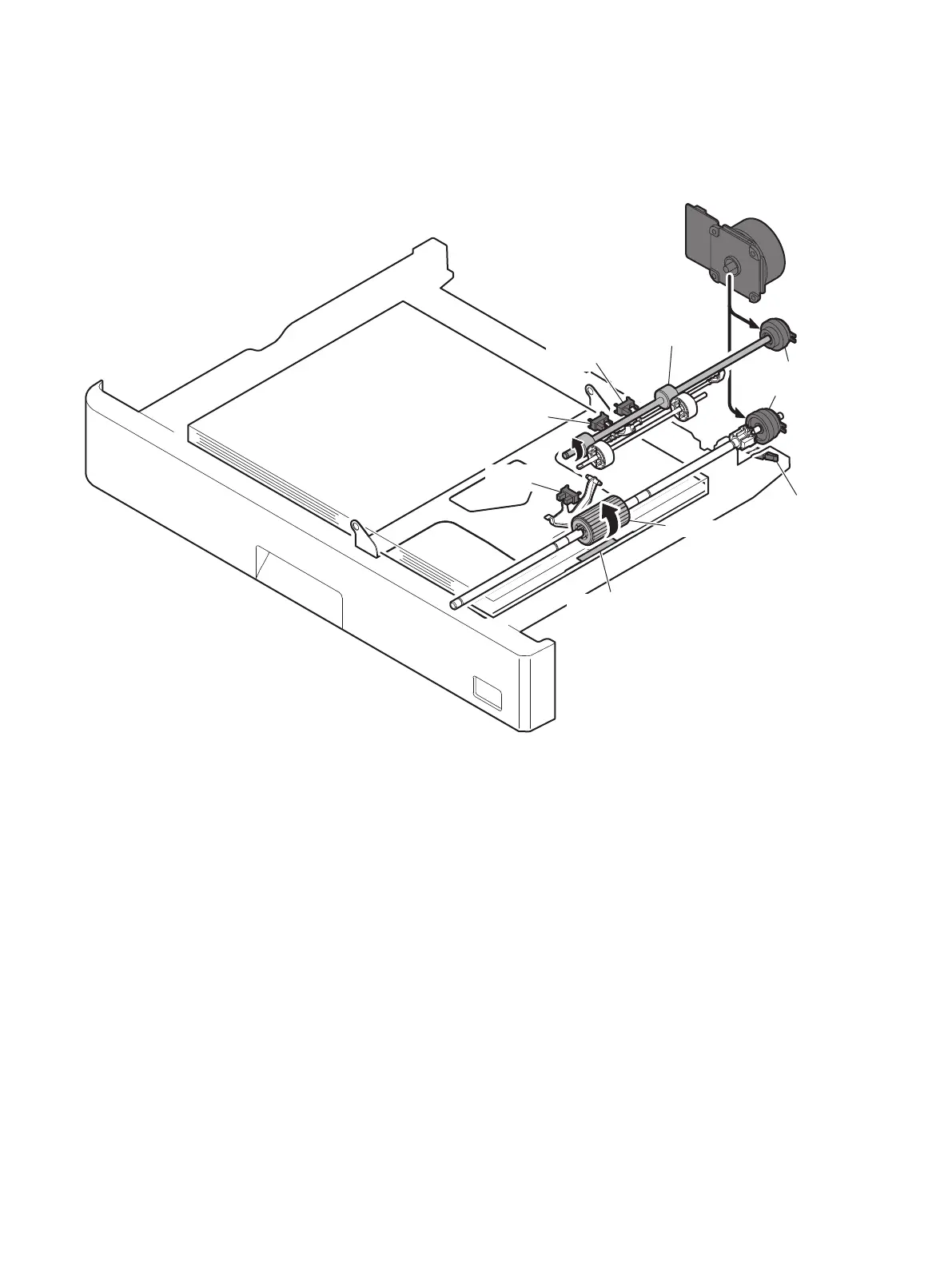

1. Paper feed operation
• When copy/print movement is started, a main motor is a timing of the rotary (drive system) paper pickup, and a paper feed clutch does ON, and a
paper feed roller turns.
• A transportation clutch does ON, and the paper is sent to the transportation department.
* By a separation plate to prevent against double feed of paper.
Main motor
Transportation clutch
Paper feed clutch
Tray detection
switch
Paper pass
sensor
Transport roller
Paper feed roller
Separation plate
Door open/close
sensor
Paper empty
sensor
To Next Page
