Sharp MX-M232D

MX-M182 DISASSEMBLY AND ASSEMBLY 10-9

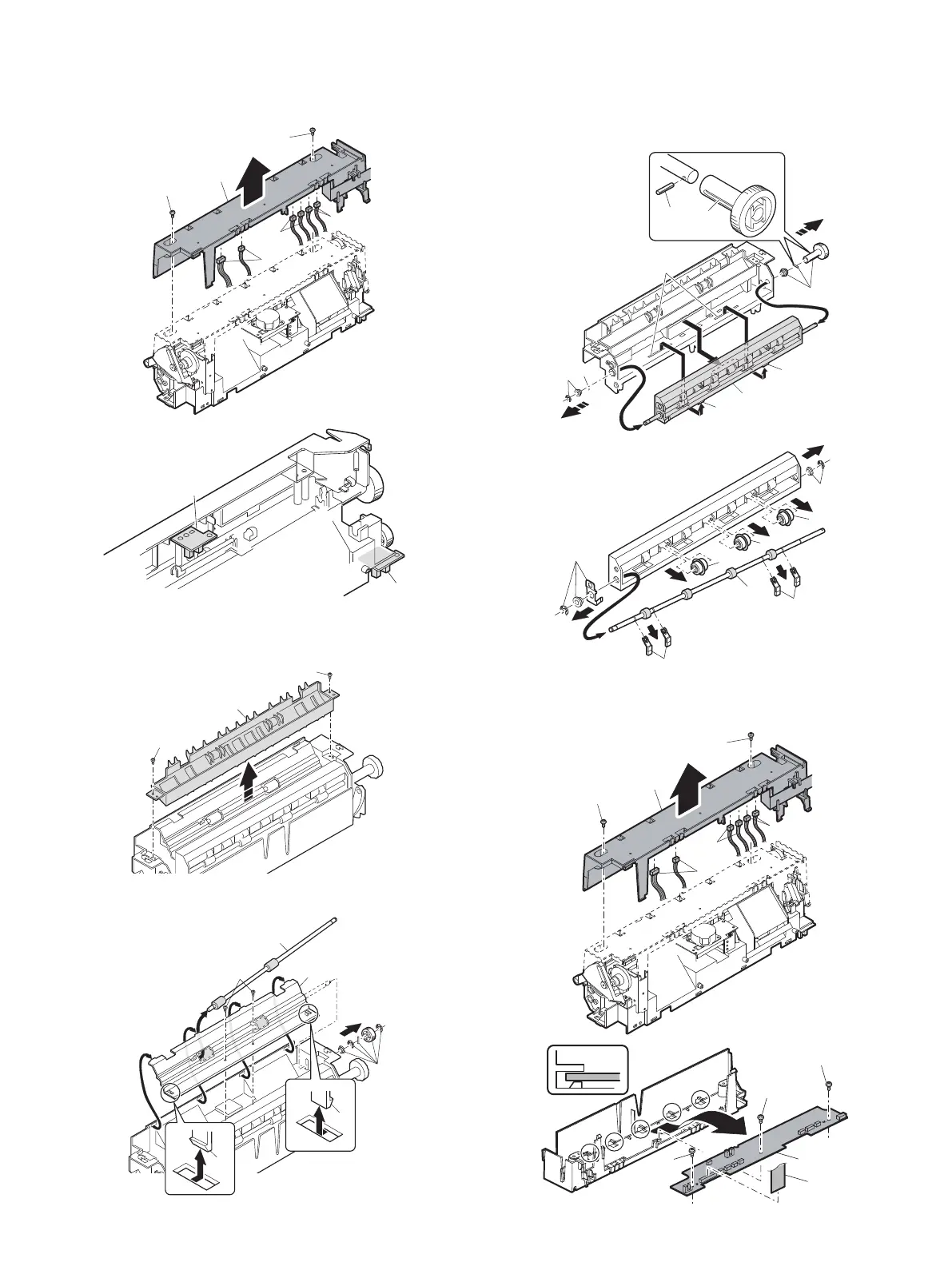

D. Paper exit sensor / duplex sensor
(A) Paper exit sensor
(B) Duplex sensor
E. Transport roller
F. Paper exit roller
Assembly: Insert the spring pin so that the waveform (A) of the spring
pin faces in the longitudinal direction of the paper exit
drive gear long hole (B).

Be sure to insert two ribs (C) into the groove (D).
G. Paper exit interface PWB
