Sharp MX-M232D Service Manual

MX-M182 SIMULATIONS 7-6
03 03 Shifter operation check
Used to reciprocate the shifter 4 times.
During execution, the status of the shifter HP sensor is displayed on the right upper section of the screen.
(When the sensor is detected, the display is highlighted.)
[CA] key: Exits the simulation mode.
[INTERRUPT] key: Returns to the sub code input window.
* When the above [CA] key or [INTERRUPT] key is pressed during operation of the shifter, the shifter is
returned to the home position before terminating the operations.
Japan only
04 Job separator operation check
Used to operate the job separator up and down for 30sec.
During operation, the status of the upper limit sensor and the lower limit sensor is displayed on the right
upper section of the display.
[CA] key: Exits the simulation mode.
[INTERRUPT] key: Returns to the sub code input window.
When the operation is interrupted, the job separator is shifted to the home position before terminating the
simulation similarly to the shifter.
(Only when the job
separator is
installed.)
11 Shifter home position check
Used to check the operations of the shifter HP sensor and the shifter. When this simulation is executed, the
initial menu is displayed. By the following key operations, the left operation and the right operation of the
home position sensor and the shifter can be executed separately.
[ ] key: Shifts to R side by the specified steps.
[ ] key: Shifts to F side by the specified steps.
[ ] key: Shift to the home position.
[SFTHP] is highlighted when the HP sensor is detected.
[CA] key: Exits the simulation mode.
[INTERRUPT] key: Returns to the sub code input window.
Japan only
Main
code
Sub
code
Contents Remark

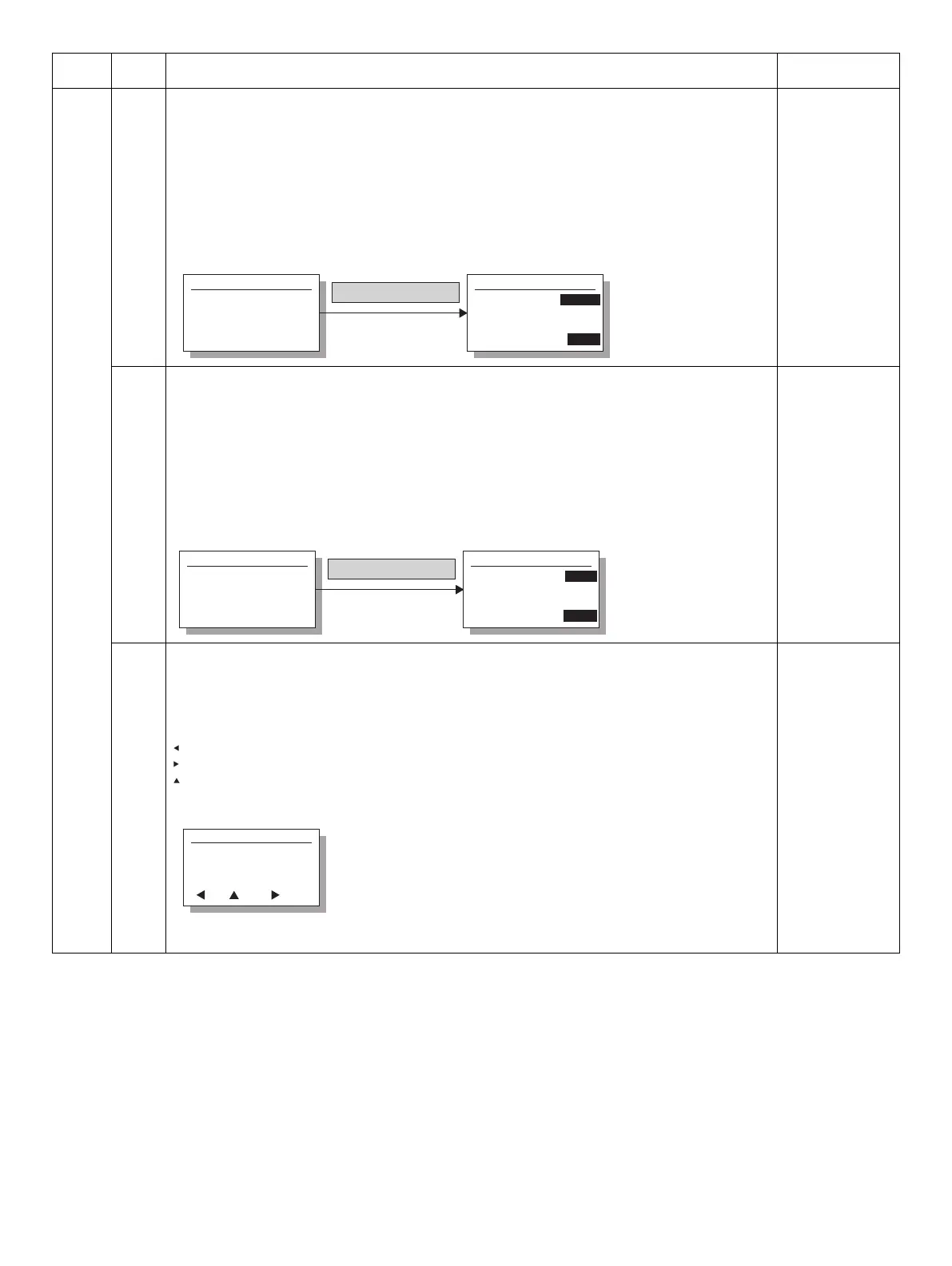

Sim3-3 SHIFTER CHK
PRESS OK KEY EXEC
Sim3-3 SHIFTER CHK
EXEC
SFTHP
[OK] key or [START] Key
(Initial window) (Execution window)
Sim3-4 JOBSEPA CHK
PRESS OK KEY EXEC
Sim3-4 JOBSEPA CHK
EXEC
JSDL
JSUP
[OK] key or [START] Key
(Initial window) (Execution window)
Display
name
JSUP Job separator
upper limit senso
r
JSDL Job separator
lower limit sensor
Sensor
name
Sim3-11 SHIFTER CHK
SFTHP
(Initial window)
[ ]:R [ ]:HP [ ]:F
