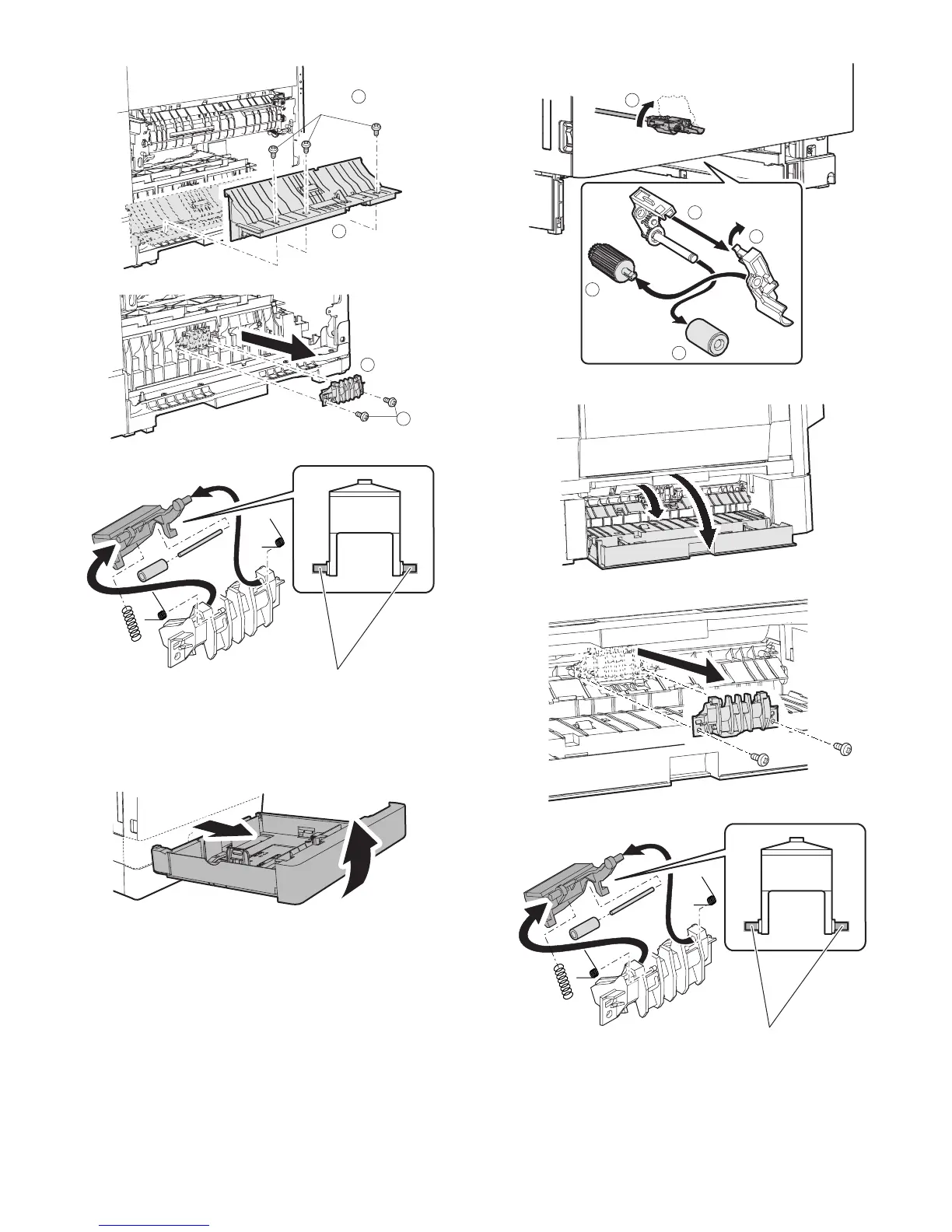

MX-M260/M310/M260N/
M310N MA
INTENANCE 8
- 14
∗
Slightly apply
grease GP501MR
(UK
OG-0012QSZZ)
around the
axis. One rice grai
n for each.
Grease should not come out when assembling.
(6)
Lower
500 sheets tra
y paper fee
d
a.
P
aper feed r
oller/pickup r
oller
b.
Separat
ion sheet
∗
Slightly apply grease GP501MR (UK
OG-0012QSZ
Z) around the
axis. One rice grain for each.
Grease should n
ot come out when
assembling.
1)
1
2
2
1
1
3
2
4
4
100
102
Table of Contents
Default Chapter
1
Table of Contents
1
Service Manual
1
Note for Servicing
3
Precautions for Servicing
3
Warning for Servicing
3
Note for Installing Site
4
Product Outline
5
Line of Machines and Options
5
Rspf
5
MX-Rp10
5
Finisher MX-FN13
5
MX-Tr11
5
MX-Pb12
5
MX-Nsx1
5
Ar-Fx7
5
Combination of Options List
6
Specifications
7
Basic Function
7
Base Engine
7
Controller Board
7
Scanner Section
8
Copy Functions
9
Paper Exit Section
9
Paper Feed Section
9
Image Send Function
10
Printer Function
10
Environmental Conditions
12
PC-FAX Function
12
Sound Setting
12
Consumable Parts
13
Supply System Table
13
Maintenance Parts List
14
Developer/Drum Life End Definition
15
Production Number Identification
16
Environment Conditions
16
Developer
16
Toner Cartridge
16
External View and Internal Structure
17
Internal Structure
18
Operation Panel
19
RSPF External View
20
Sensor
21
Switch
21
Solenoid/Clutch
22
Drive Motor
22
Lamp
23
Fan/Filter
23
Pwb
24
Roller
24
Adjustment Item List
25
Details of Adjustment
25
Developing Doctor Gap Adjustment
25
Developing Bias Voltage Adjustment (SIM 8-1)
26
Grid Bias Voltage Adjustment (SIM 8-2
26
Mechanism Section
26
MG Roller Main Pole Position Adjustment
26
Rear Edge Void Adjustment
27
RSPF Image Lead Edge Position Adjustment
27
Left Edge Void Area Adjustment
28
Paper off Center Adjustment
28
Main Scanning Direction (FR Direction) Distortion Balance Adjustment
29
Sub Scanning Direction (Scanning Direction) Distortion Adjustment (Winding Pulley Position Adjustment)
29
Main Scanning Direction (FR Direction) Distortion Balance Adjustment (Rail Height Adjustment)
30
Main Scanning Direction (FR Direction) Magnification Ratio Adjustment (SIM 48-1)
31
Sub Scanning Direction (Scanning Direction) Magnification Ratio Adjustment (SIM 48-1-2, SIM 48-1-3)
31
OC (RSPF) Open/Close Detection Position Adjustment
32
Off Center Adjustment (RSPF Mode)
32
Original Sensor Adjustment (SIM 41-2, 41-4)
32
RSPF White Correction Pixel Position Adjustment
32
Copy Mode (SIM46-2)
33
Image Density (Exposure) Adjustment
33
RSPF Scan Position Auto Adjustment
33
Code-Type Simulation
34
Outline and Purpose
34
Simulation
34
Simulation Code List
36
Details of Simulation
39
Self Diag and Trouble Code
77
Trouble Code List
77
Details of Trouble Code
78
Maintenance
88
Maintenance List
88
Details of Maintenance
90
Drum
91
Drum Section
91
Main Charger
91
Cleaning Blade
91
Developing Section
92
Separation Pawl
92
Toner Filter Unit
93
DV Side Sheet F/ DV Side Sheet R
93
DV Blade
93
Toner Sensor
93
Thermostat
94
Thermistor
94
Paper Guide
94
Fusing Separation Pawl (Lower)
94
Heater Lamp
95
Upper Cleaning Pad
95
Fusing Separation Pawl (Upper)
95
Upper Heat Roller
95
Optical Section
96
CCD Unit
96
Lamp Unit
96
Paper Feed Solenoid
97
Tray Sensor PWB
97
Manual P-In Sensor/Manual Empty Sensor
97
Multi Manual Paper Feed
97
Reverse Sensor
98
Separation Sheet
98
Clutch/Solenoid
98
Upper 500 Sheets Tray Paper Feed
99
Lower 500 Sheets Tray Paper Feed
101
Side Door Unit
102
Lift up Unit
102
Transport Clutch
102
Paper Feed Clutch
102
1St Paper Exit Unit
103
Transport Roller
103
DUP Transport Roller
103
DUP Motor
103
Exit Roller
104
Laser Unit
105
Lsu
105
Power Unit
106
Power Source
106
Option CN PWB
106
IMC Pwb
107
Mcu Pwb
107
Motherboard PWB
107
Ozone Filter
108
Second Interface PWB
108
Drive Section
109
DUP Reverse Motor
109
Main Drive Motor
109
Toner Motor
109
Transport Section
110
Drive Unit
110
Operation Section
111
Opu Pwb
111
Key PWB
111
Power Switch
112
Rspf
112
Document Tray Section
112
Paper Feed Unit Section
113
Document Length Sensor
113
Document Width Resistor PWB
113
Other Related Items
118
Counter Clear
118
Firmware Update
119
Firmware Update Method
119
Firmware Update Procedure
119
Printer Control Board Firmware Download Method
120
Electrical Section
122
Block Diagram
122
System Block Diagram
122
Pcl Pwb Block Diagram
123
Actual Wiring Chart
124
CU - Panel Unit, Optical Base Plate Sensor Section (P1)
124
MCU - Optical Base Plate 2, OP I/F PWB, 1St Paper Exit Unit, 2Nd Paper Exit Unit (P2)
125
Manual Feed, 1St Tray Unit Section (P3)
126
2Nd Tray Unit Section (P4)
127
Fusing Unit, Power Supply Unit Section (P5)
128
DV & LSU Unit Section (P6)
129
Board to Board Section (P7)
130
Signal List
132
Lead-Free Solder
135
