MX-M260/M310/M260N/M310N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 - 2

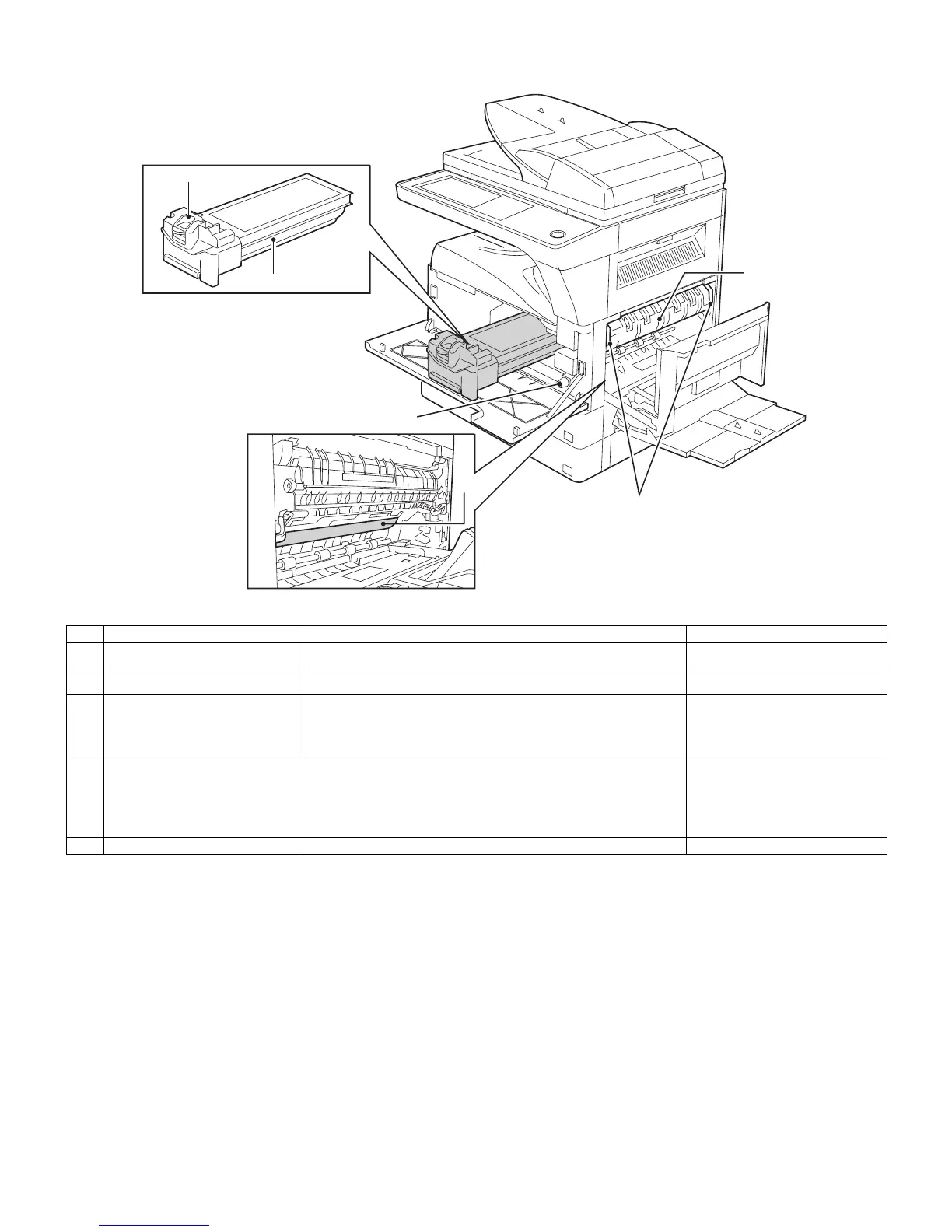

2. Internal structure
No. Name Function/Operation Note
1 Toner cartridge lock release lever Use to unlock the toner cartridge.
2 Toner cartridge Contains toner.
3 Roller rotating knob Turn to remove misfed paper.
4 Photoconductive drum Copy images are formed on the photoconductive drum. Do not touch the photoconductive
drum (green portion). Doing so
may damage the drum and cause
smudges on copies.
5 Fusing unit release levers To remove a paper misfeed in the fusing unit, push up on these
levers and remove the paper.
The fusing unit is hot.
Do not touch the fusing unit when
removing misfed paper.
Doing so may cause a burn or
injury.
6 Fusing unit paper guide Open to remove misfed paper.
1
2
3
4
5
6
To Next Page
