Sharp MX-M310 - Lamp; Fan;Filter

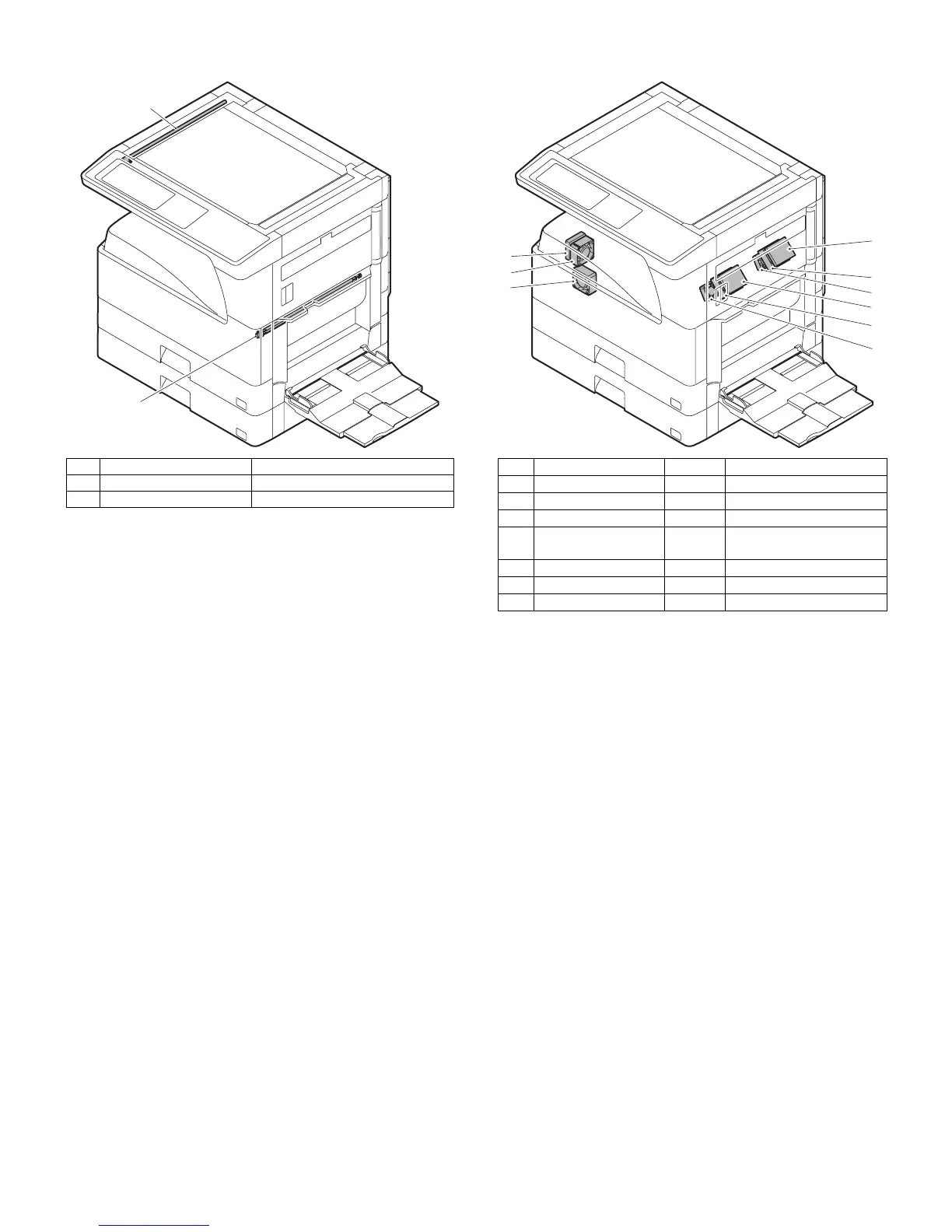

MX-M260/M310/M260N/M310N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 - 7
9. Lamp 10. Fan/Filter
No. Name Function and operation
1 Copy lamp Image radiation lamp
2 Heater lamp Fusing heat lamp
2
1
No. Name Code Function and operation
1 Cooling fan VFM Cools the inside of the unit.
2 Exhaust fan motor DCFM Cools the inside of the unit.
3 Intake fan motor DCFM2
4 Fusing paper exit fan VFM2 Cools the inside of the unit.
(31 sheet model)
5 Fusing paper exit fan VFM2 Cools the inside of the unit.
6 Ozon filter
7 Ozon filter
4
6
1
1
2
3
7
5
6
