MX-M260/M310/M260N/M310N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 - 5

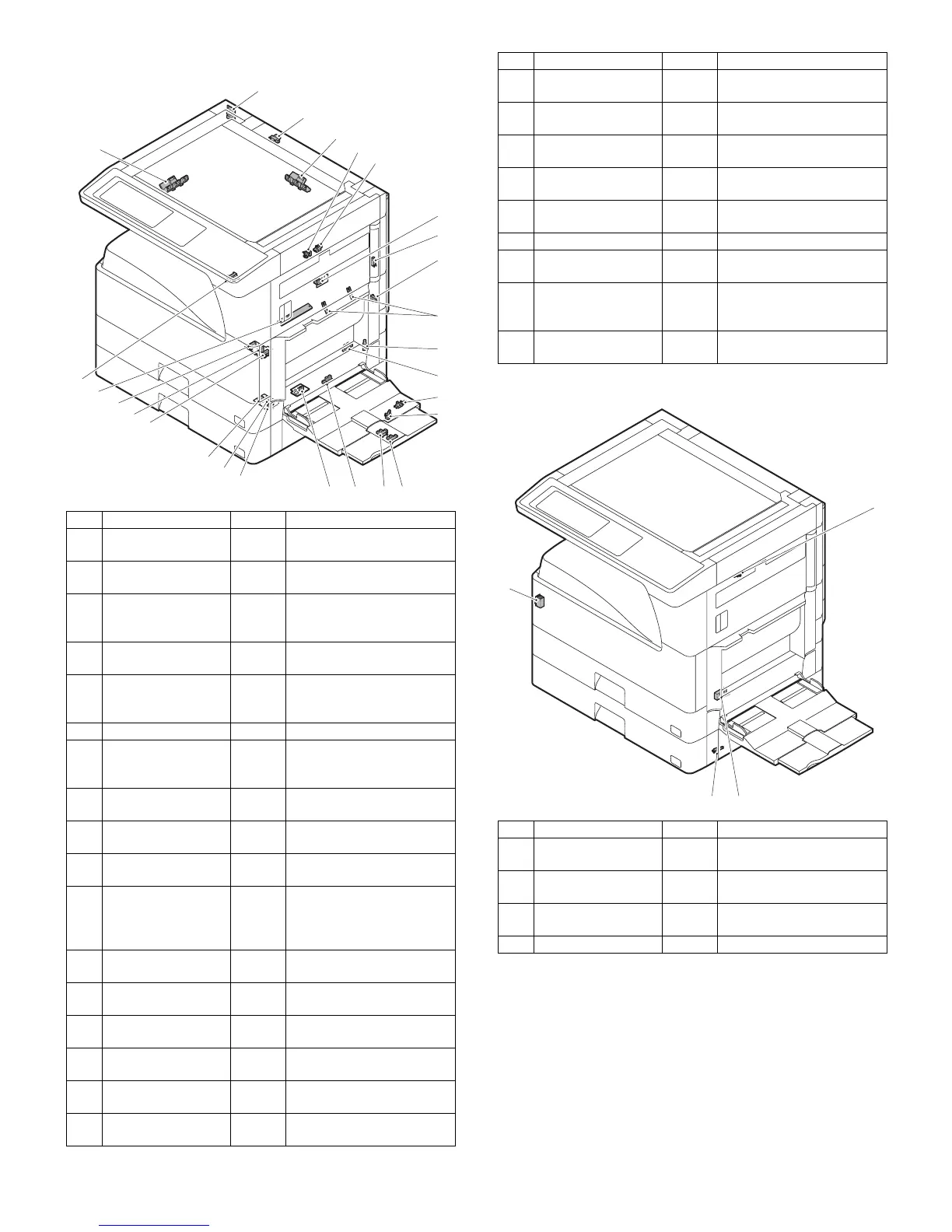

5. Sensor
6. Switch
No. Name Code Function and operation
1 Mirror home position
sensor
MHPS Mirror (scanner) home
position detection
2 Document cover
sensor
OCSW Document cover open/close
detection
3 Document size
sensor
DSIN3 Document size detection
(Inch series: PD3, 4)
(AB series: PD4, 5)
4 2nd paper exit sensor
(Option)
POD2 2nd paper exit detection
5 2nd paper exit full
detection sensor
(Option)
TOPF 2nd paper exit section full
detection
6 1st paper exit sensor POD1 1st paper exit detection
7 Shifter home position
sensor (Except North
America)
SFTHP Shifter home position sensor
detection
8 Paper exit sensor
(DUP side)
PPD2 Paper exit detection
9 Thermistor Fusing temperature
detection
10 1st tray (paper tray)
detection
CD1 1st tray (paper tray) empty
detection
11 Manual feed paper
entry sensor
PPD1L Sensor of paper entry from
the manual paper feed tray,
the 2nd/multi-tray desk, or
the DUP
12 Manual paper feed
tray empty sensor 2
MPLS2 Manual feed tray position
detection
13 Manual paper feed
tray empty sensor 1
MPLS1 Manual feed tray position
detection
14 Manual feed length
detection sensor 1
MPLD1 Manual feed paper length
detection
15 Manual feed length
detection sensor 2
MPLD2 Manual feed paper length
detection
16 Manual feed paper
empty sensor
MPED Manual feed paper empty
detection
17 2nd tray paper pass
sensor
PFD2 2nd tray paper pass
1
2
3
6
7
8
10
12
13
14151626
17
18
19
20
21
22
23
24
11
25
9
4
5
18 2nd tray paper upper
limit detection sensor
LUD2 2nd tray paper upper limit
detection
19 2nd tray paper empty
sensor
PED2 2nd tray paper empty
detection
20 1st tray paper pass
sensor
PPD1H 1st tray paper pass
21 1st tray paper upper
limit detection sensor
LUD1 1st tray paper upper limit
detection
22 1st tray paper empty
sensor
PED1 1st tray paper empty
detection
23 Toner sensor Toner density detection
24 Center tray paper
YES/NO sensor
LOEMP Center tray paper YES/NO
detection
25 Document size sensor DSIN0 Document size detection
(Inch series: PD1, 2)
(AB series: PD1 – 3)
26 Reverse pass paper
detection sensor
DUP2
Reverse pass detection
No. Name Code Function and operation
1 Right cabinet door
switch (Option)
DSWR0 Right cabinet door open/
close detection
2 Door switch DSWR1 Front door and side door
open/close detection
3 2nd right door switch DSWR2 Side door open/close
detection
4 Main switch PSSW Main power switch
No. Name Code Function and operation
1
23
4
