MX-M260/M310/M260N/M310N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 - 6

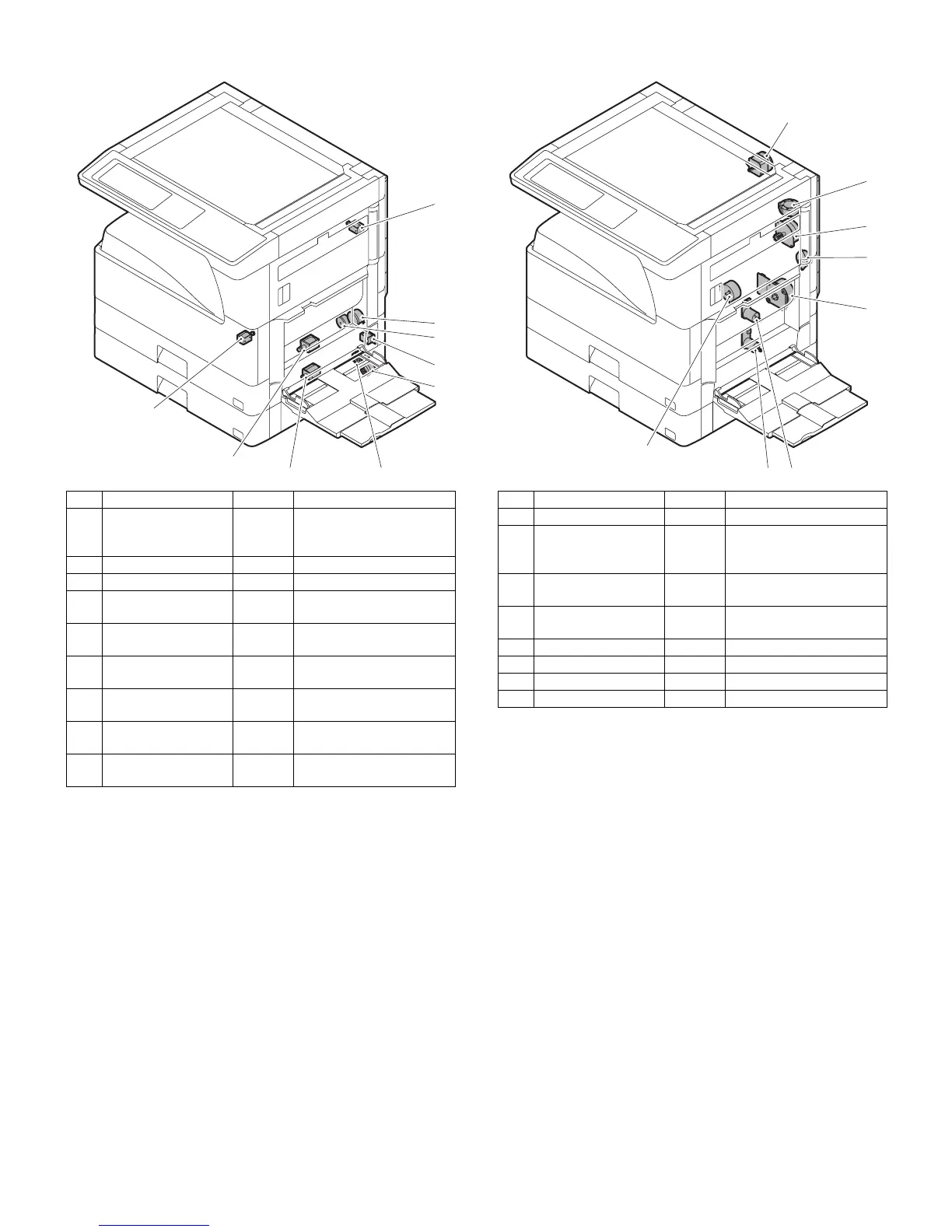

7. Solenoid/Clutch 8. Drive motor
No. Name Code Function and operation
1 Paper exit gate
switching solenoid
(Option)
OGS Paper exit gate switcher
2 PS clutch RRC Main unit paper feed
3 Paper feed clutch CPFS1 Paper feed roller drive
4 Manual paper feed
solenoid
MPFS Manual paper feed
solenoid
5 Paper feed transfer
clutch
TRC2 Paper feed transfer clutch
6 2nd tray paper feed
clutch
CPFS2
7 2nd tray paper feed
solenoid
CPFC2 Solenoid for the paper feed
from the tray
8 Paper feed solenoid CPFC1 Solenoid for the paper feed
from the tray
9 Separation pawl
solenoid
PSPS Separation pawl operation
solenoid
1
2
3
4
5
6
7
8
9
No. Name Code Function and operation
1 Mirror motor MIRM Optical mirror base drive
2 Shifter motor
(Except North
America)
SFTM Shifter drive
4 Duplex motor DPXM Duplex paper switching
and exit motor
5 DUP-2 motor Reverse pass for paper
transport
6 Main motor MM Main drive
7 Tray lift-up motor LUM1 Tray paper lift-up
8 Tray lift-up motor LUM2 Tray paper lift-up
9 Toner motor TM Toner supply
1
2
4
5
6
7
8
9
