(8) Punch module*
This is used to punch holes in output.
Requires a finisher (large stacker).
☞ PUNCH MODULE (page 1-54)
(9) USB connector (A type)
Supports USB 2.0 (Hi-Speed).
This is used to connect a USB device such as USB
memory to the machine.
For the USB cable, use a shielded cable.
(10) Keyboard*
This is a keyboard that is incorporated into the machine.
When not used, it can be stored under the operation
panel.
This may be included as standard equipment in some
countries and regions.
☞ KEYBOARD (page 1-71)
(11) Saddle stitch finisher
*
This can be used to staple output. The saddle stitch
function for folding and stapling output and the fold function
for folding output in half are also available. A punch module
can also be installed to punch holes in output.
☞ SADDLE STITCH FINISHER (page 1-50)
(12) Finisher
(large stacker)*
This can be used to staple output.
☞ FINISHER (LARGE STACKER) (page 1-47)
(13) Tray 1
This holds paper.
☞ TRAY SETTINGS FOR TRAY 1 TO 4 (page 1-30)
(14) Tray 2
This holds paper.
☞ TRAY SETTINGS FOR TRAY 1 TO 4 (page 1-30)
(15) Tray 3 (when a stand/1 x 500 sheet paper drawer or a
stand/2 x 500 sheet paper drawer is installed)*
This holds paper.
☞ TRAY SETTINGS FOR TRAY 1 TO 4 (page 1-30)
(16) Tray 4 (when a stand/2 x 500 sheet paper drawer is
installed)*
This holds paper.
☞ TRAY SETTINGS FOR TRAY 1 TO 4 (page 1-30)
(17) Tray 5 (when a large capacity tray is installed)*
This holds paper.
☞ TRAY SETTINGS OF TRAY 5 (LARGE CAPACITY
TRAY) (page 1-32)
* Peripheral device.

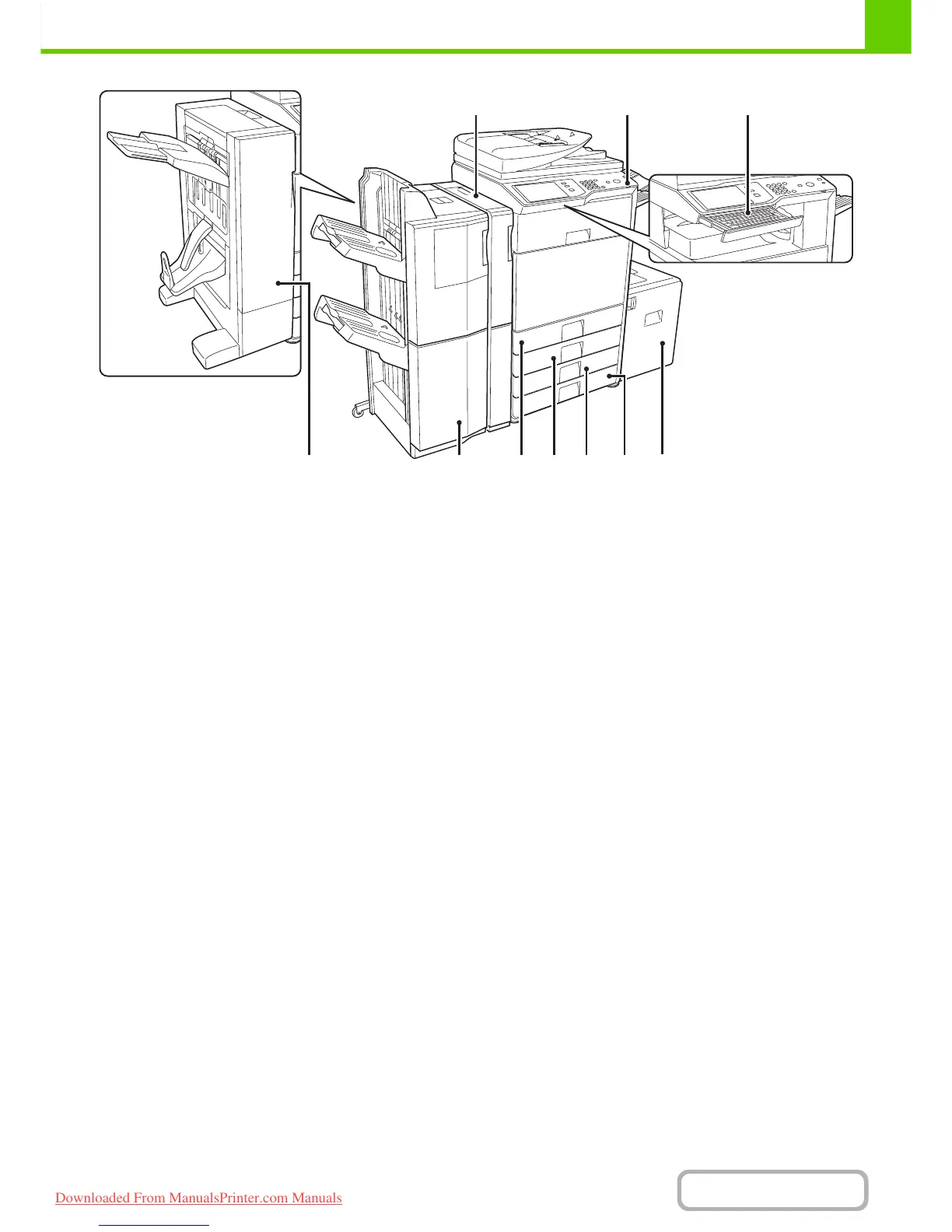

(12)
(9) (10)(8)
(11) (14)(13) (17)(15) (16)
When a saddle stitch finisher is
installed
