1-50
BEFORE USING THE MACHINE
Contents
SADDLE STITCH FINISHER
This includes the offset function that offsets each set of output from the previous set, the staple sort function that staples
each set of output, the saddle stitch function that automatically staples and folds output, and the fold function that folds
output in half. An optional hole punching unit can also be installed to punch holes in output.

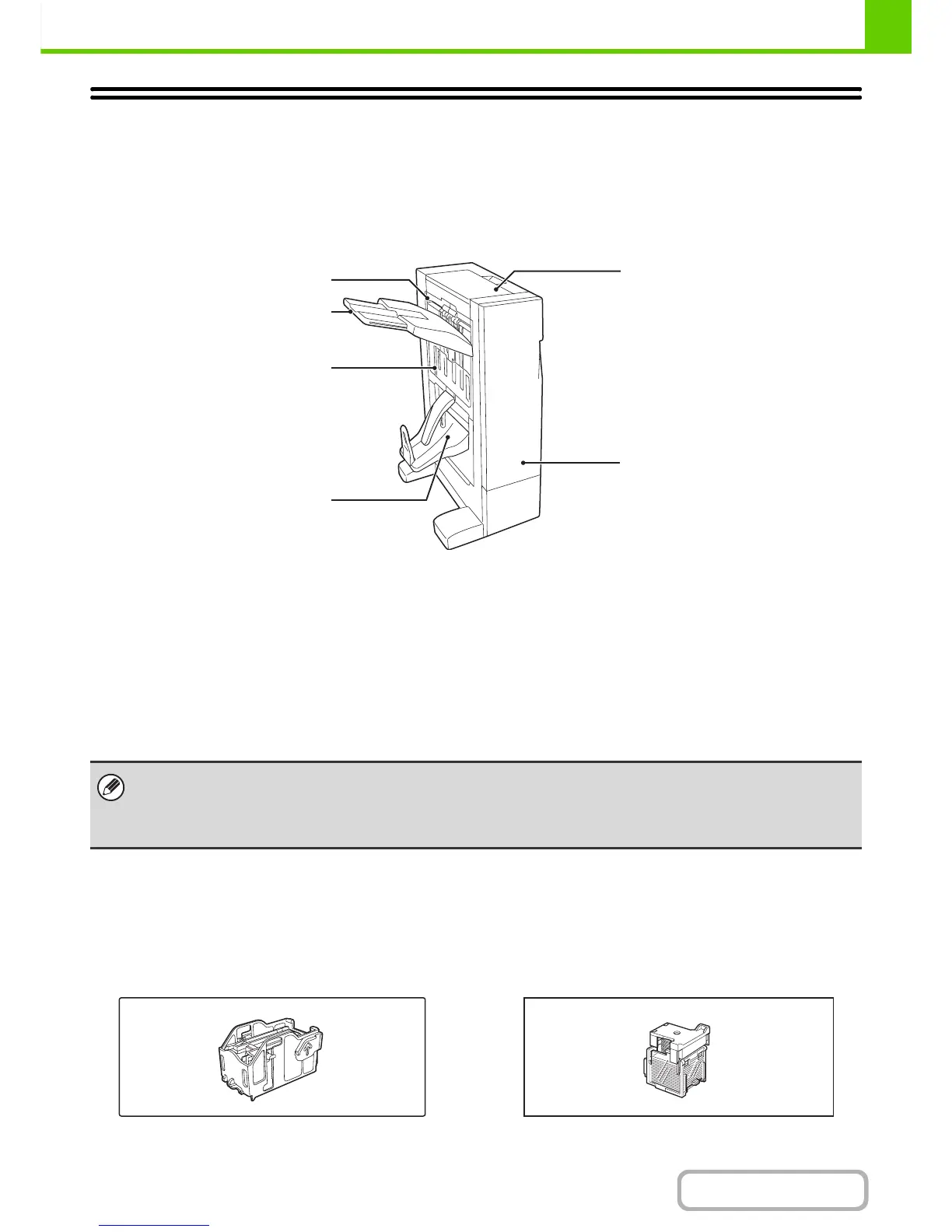

PART NAMES
(1) Stapler compiler
This temporarily stacks paper to be stapled.
(2) Output tray
Stapled and offset output is delivered to this tray.
The tray is slidable. Extend the tray for large output
(12" x 18", 11" x 17", 8-1/2" x 14", 8-1/2" x 13",
8-1/2" x 13-1/2", 8-1/2" x 13-2/5", A3W, A3, B4 and 8K
sizes).
(3) Side cover
Open this cover to replace the staple cartridge or remove
a staple jam.
(4) Saddle stitch tray
Stapled and folded output is delivered to this tray.
(5) Top cover
Open this cover to remove a paper misfeed.
(6) Front cover
Open this to replace the staple cartridge, remove
jammed staples, or remove misfed paper.
SUPPLIES
The saddle stitch finisher requires the following staple cartridge:
Finisher unit
Staple cartridge (approx. 5000 staples per cartridge x 3
cartridges) MX-SCX1
Saddle stitch unit
Staple cartridge (approx. 2000 staples per cartridge x 3
cartridges) AR-SC3
(1)
(2)
(5)
(6)
(3)
(4)
• A paper pass unit is required to install a saddle stitch finisher.
• Do not place heavy objects on the saddle stitch finisher or press down on the saddle stitch finisher.
• Use caution when you turn on the power and when printing is taking place, as the tray may move up and down.
• A saddle stitch finisher cannot be installed simultaneously with a finisher (large stacker) or a finisher.
To Next Page
