MZ-5600 SERIES HARDWARE DESCRIPTION
1-1

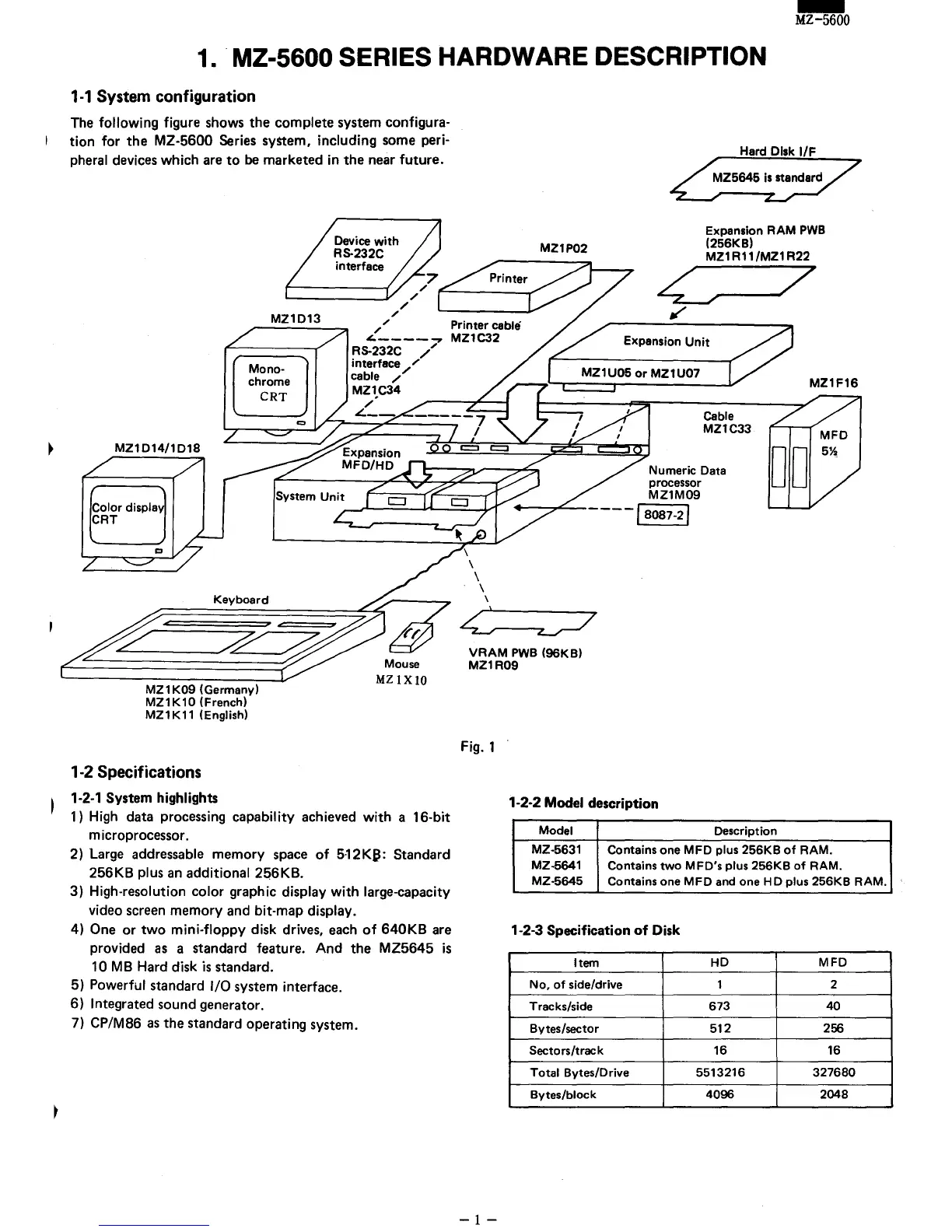

System configuration
The fol/owing figure shows
the
complete system configura-
tion for
the
MZ-5600 Series system, including some peri-
pheral
devices which are
to
be marketed
in
the
near
future.
MZ1
014/1
018
Mono-
chrome
CRT
Keyboard
MZ1K09
(Germany)
MZ1K10
(French)
MZ1K11
(English)
1-2 Specifications
1-2-1 System highlights
Device
with
RS-232C
interface
Mouse
MZ
IXlO
1)
High data processing capability achieved with a 16-bit
microprocessor.
2) Large
addressable memory space
of
5·12K~:
Standard
256KB
plus an additional 2f\6KB.
3) High-resolution color graphic display with large-capacity
video screen memory and bit-map
display.
4) One
or
two
mini-floppy disk drives, each
of
640KB are
provided as a standard feature. And
the
MZ5645
is
10
MB
Hard disk
is
standard.
5)
Powerful standard I/O system interface.
6)
Integrated sound generator.
7) CP/M86
as
the
standard operating system.
MZ1P02
Hard Disk
I/F
~Z5645~
Expansion
RAM
PWB
(256KB)
MZ1R11/MZ1R22
G 7
,r
Expansion
Unit
Cable
MZ1C33
Numeric Data
processor
MZ1M09
----18087-21
MZ1F16
MFD
VRAM
PWB
(96KB)
MZ1R09
Fig. 1
1-2-2
Model description
Model
Description
MZ-5631 Contains one
MFD
plus
256KB
of
RAM.
MZ-5641 Contains
two
MFD's
plus
256KB
of
RAM.
MZ-5645
Contains one
MFD
and one
HO
plus 256KB
RAM.
1-2-3 Specification
of
Disk
Item
HO
MFD
No,
of
side/drive 1 2
Tracks/side 673
40
Bytes/sector
512
256
Sectors/track 16 16
Total
Bytes/Drive
5513216 327680
Bytes/block
4096
2048
-1-
