Sharp SMD2499FS Service Manual

33
SMD2499FS
1. Follow "DRAWER ASSEMBLY AND CHOKE REMOVAL" (steps 1-3)
2. At this point, you can change Latch Hooks/Springs without removing the Door Frame.
3. Unhook Latch Spring, then remove Latch Screw (Fig. L-1).
4. Proceed in reverse to reinstall.
5. Adjust switches after assembled back to the cavity.
6. If replacing the Rack Stay, insert Rack Stay, then insert the Rack Stay Holder with a twist until locked (Fig. L-2)

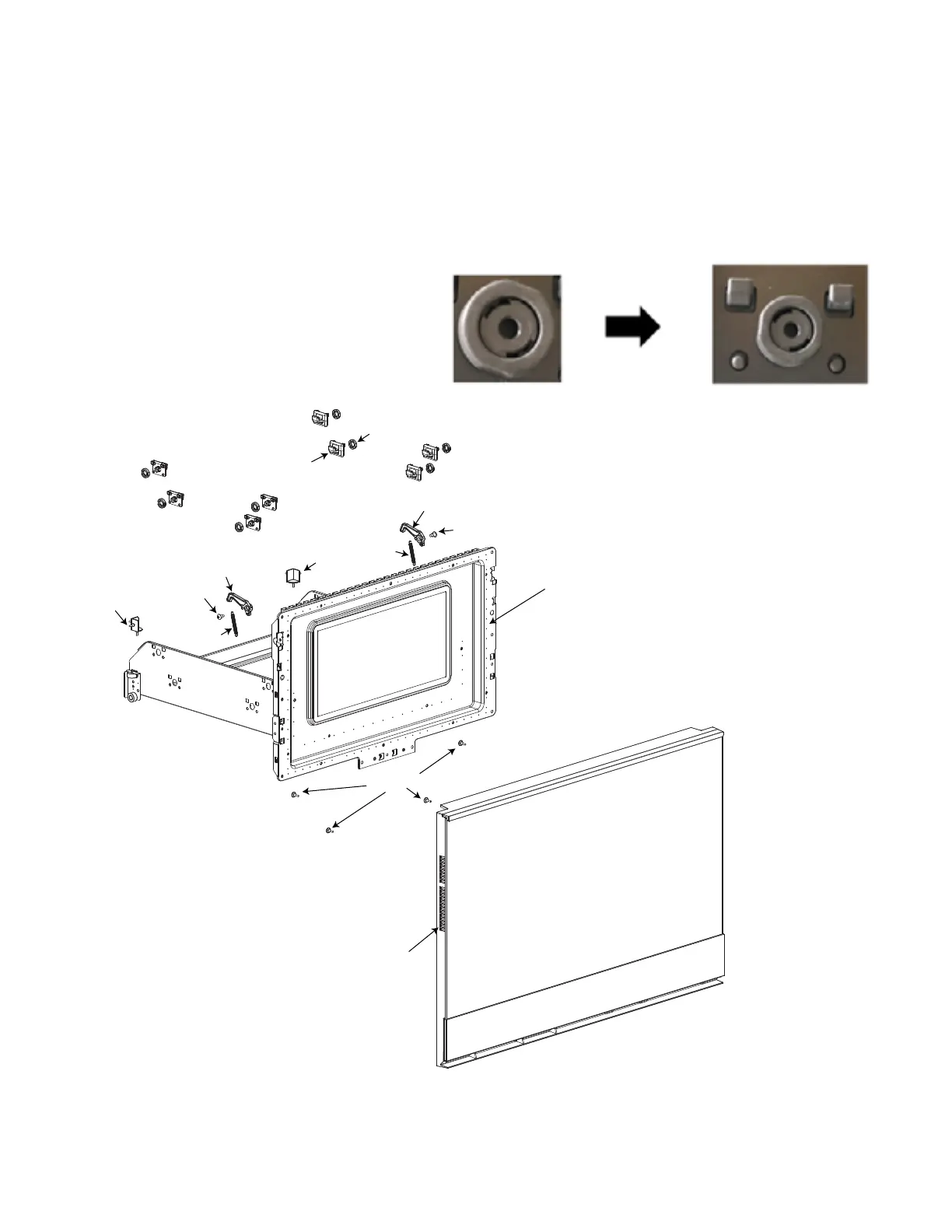

Fig. L-1
DOOR LATCH REMOVAL AND RACK STAY REPLACEMENT
Note: The drawer on a convection microwave oven is designed to act as an electronic seal preventing the leakage
of microwave energy from oven cavity during cook cycle. This function does not require that door be
air-tight, moisture (condensation)-tight or light-tight. Therefore, occasional appearance of moisture, light
or sensing of gentle warm air movement around oven drawer is not abnormal and do not of themselves
indicate a leakage of microwave energy from oven cavity.
Door Panel
Door frame
Latch head R
Latch head L
Latch head screw
Latch spring
Drawer Packing
Drawer Packing
Latch spring
Latch head screw
Rack Stay (8)
Rack Stay Holder (8)
Hole Cover (4)
Fig. L-2

Sharp SMD2499FS Specifications

General

Style	drawer
Color	stainless steel
Total Capacity	1.4 cu. ft.
Convection	yes
Power Levels	11
Sensor Cooking	yes
Quick Start	yes
Timer	yes
Wi-Fi	yes
Remote Control	yes
Max Power Consumption	900 watts
Microwave Power	900 watts
Voltage	115 volts
Current	15

Weight and Dimensions

Depth	20-7/8"; 27"; 20 7/8 inch; 23-1/2"; 16-7/16"
Height	19 1/2 inch; 19-3/4"; 8-3/4"; 19-1/2"; 24-1/2"; 19-3/8"
Width	23-5/8"; 27-1/2"; 22-3/8"; 23 5/8 inch; 23-7/8"; 16-15/16"
