Sharp SMD2499FS Service Manual

35
SMD2499FS
DAMPER MOTOR ASSY (SWITCH, MOTOR ASSY OR INTAKE DAMPER PACKING) REMOVAL

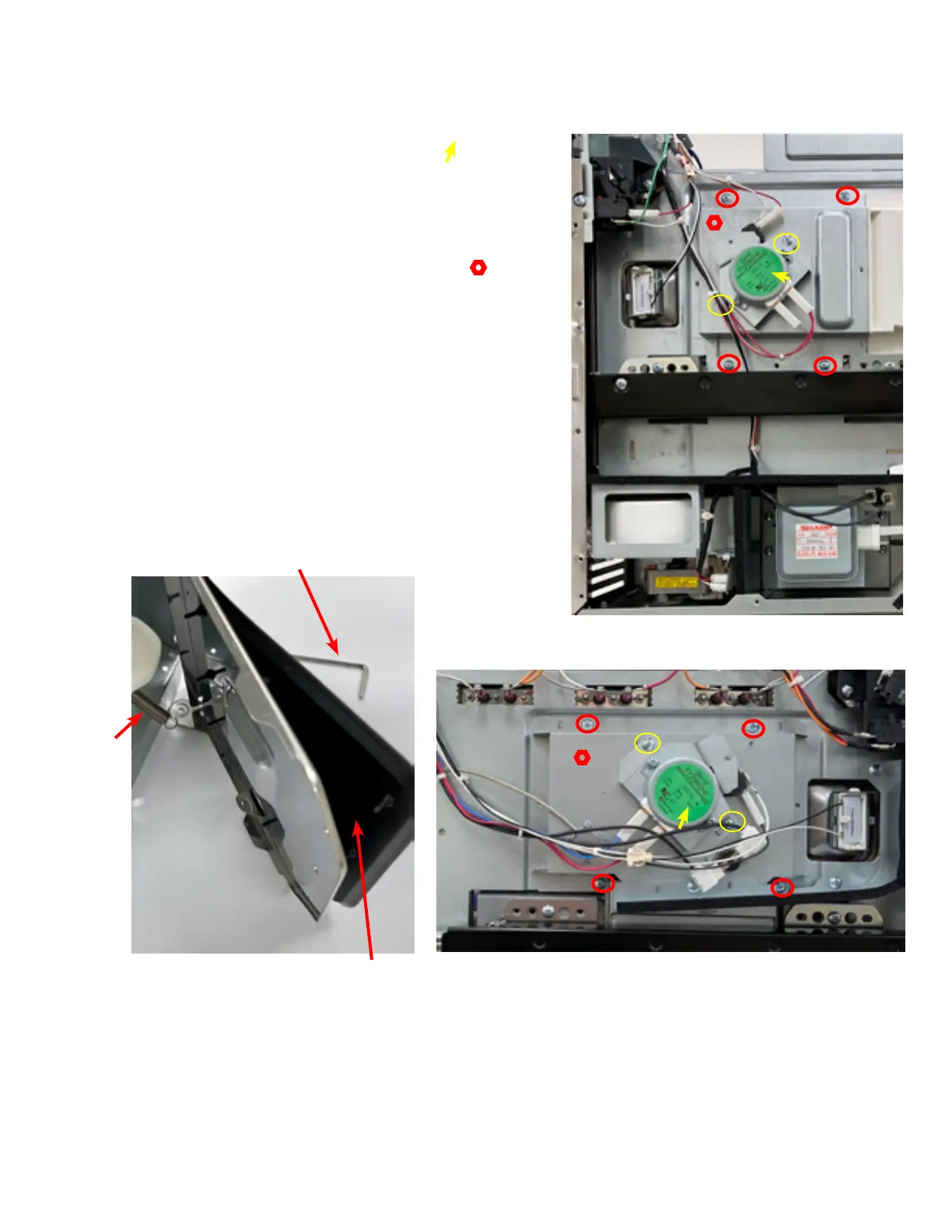

Fig. D-1
LEFT SIDE
DAMPER SWITCH and/or MOTOR ASSY REMOVAL
1. Remove either left or right Outercase cabinet.
2. Remove (2) screws holding Damper Motor Assy ( ) to Intake
Duct Assy (Fig. D-1 & Fig. D-2).
3. Remove the wires and screw to replace the switch and/or motor.
INTAKE DAMPER PACKING REMOVAL
1. Follow "Damper Switch and/or Motor Assy Removal".
2. Remove the (4) screws holding the Intake Damper ( ) from
cavity. (Fig. D-1 & Fig. D-2).
3. Release the door pin and spring. Fig. D-3
4. Pull Damper Packing from door, then replace with new packing
by pushing the rubber holders through the holes in the door.
5. Reverse procedures to reinstall.
Fig. D-2
RIGHT SIDE
Spring
Pin
Intake Damper Packing
Fig. D-3
