Sharp SMD2499FS Service Manual

38
SMD2499FS

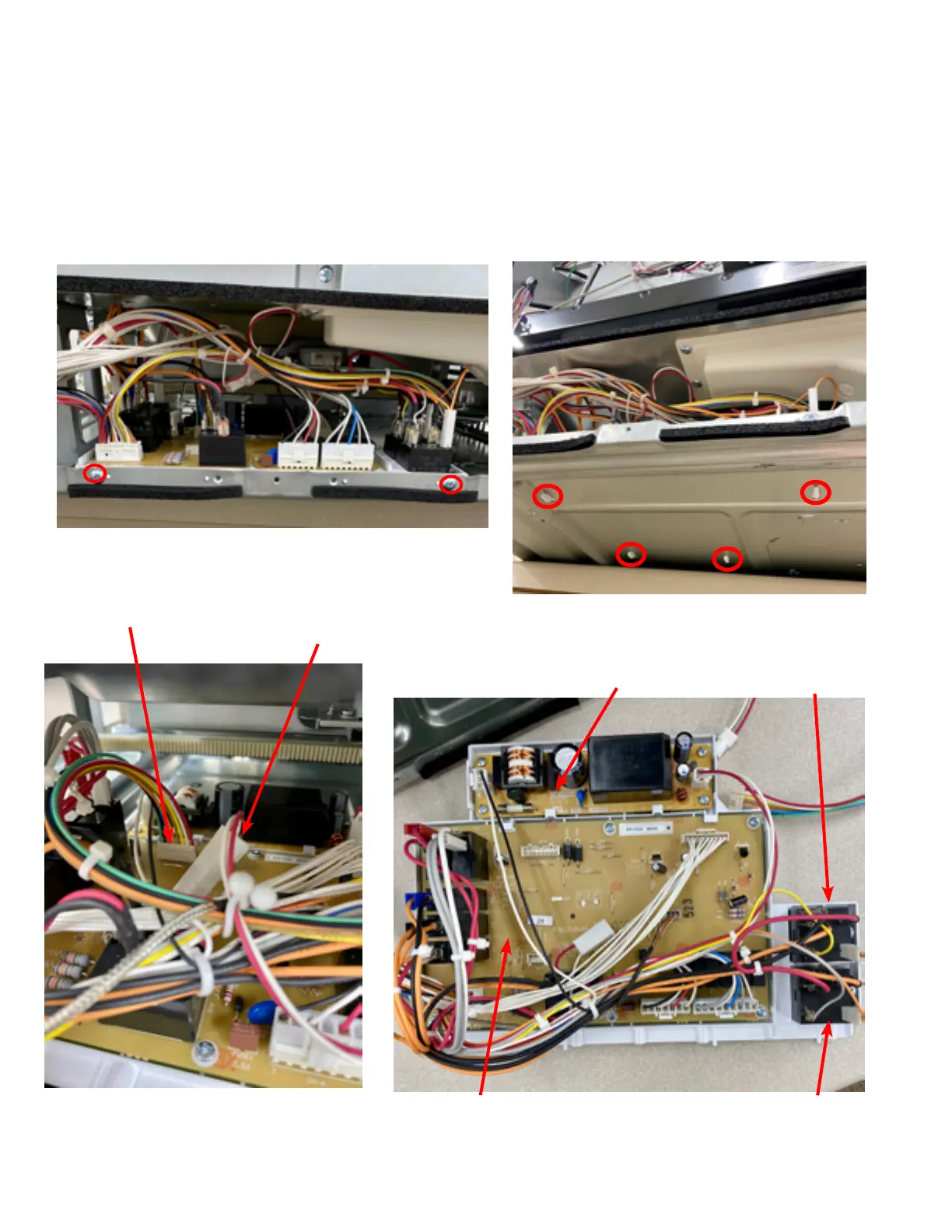

PSU UNIT/POWER UNIT/RELAY REMOVAL
1. Remove the left Outercase cabinet.
2. Remove (2) screws from Baseplate holding PSU Unit and push back to unhook tabs from the Baseplate.
(Fig. P-1 & Fig. P-2).
3. Before pulling PSU Unit out, undo Purse Lock and unplug the Stirrer Motor and the Auto Drawer Gear Assy molex.
Fig. P-3
4. Pull the whole plastic mold out holding the PSU and Power Units, plus two Relays (RY2/RY3).
5. Make note of wiring and replace whichever component that needs to be replaced. Fig. P-4
Fig. P-1
Fig. P-2
Fig. P-3
Auto Drawer Gear
Assy Molex
Stirrer Motor Molex
Fig. P-4
RY3
RY2
Power Unit
PSU Unit

Sharp SMD2499FS Specifications

General

Style	drawer
Color	stainless steel
Total Capacity	1.4 cu. ft.
Convection	yes
Power Levels	11
Sensor Cooking	yes
Quick Start	yes
Timer	yes
Wi-Fi	yes
Remote Control	yes
Max Power Consumption	900 watts
Microwave Power	900 watts
Voltage	115 volts
Current	15

Weight and Dimensions

Depth	20-7/8"; 27"; 20 7/8 inch; 23-1/2"; 16-7/16"
Height	19 1/2 inch; 19-3/4"; 8-3/4"; 19-1/2"; 24-1/2"; 19-3/8"
Width	23-5/8"; 27-1/2"; 22-3/8"; 23 5/8 inch; 23-7/8"; 16-15/16"
