Sharp UP-600 Service Manual

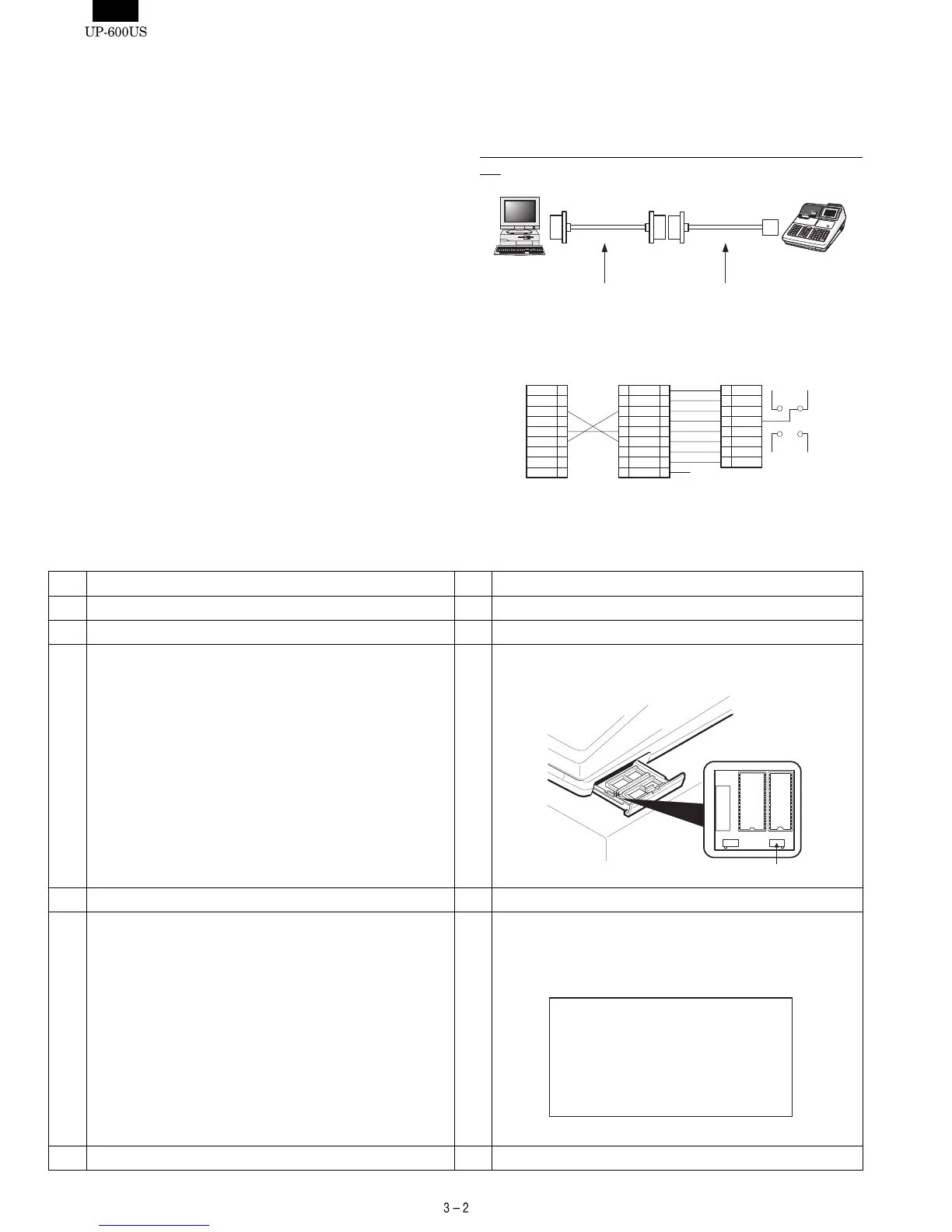

2. UP-600 UTILITY TOOLS
1) OUTLINE
This Specification document describes the explanation about "POSU-
TILITYTOOL.EXE and "02FD.EXE".
"POSUTILITYTOOL.EXE"and "02FD.EXE" works on Windows 95/98
of PC and they have the following
Functions by connecting UP-600 with RS232.
POSUTILITYTOOL.EXE : IPL of UP-600 Program Object
02FD.EXE : All RAM Data Upload/Download
(PC software tool instead of the cur-
rent ER-02FD.)
2) CONNECTION
PC and UP-600 are connected by RS232.
Connect the CH2 port of the UP-600 to the RS-232 interface of the
PC.
RS232 Cable Connecting:
3) PROCEDURE
3) -1. POS UTILITY
No Procedure on P.C. side No Procedure on UP-600 side
1 Install the "POSUTILITYTOOL.EXE" on the P.C.
2 Turn OFF the power.
3 Select "IPL Mode".
Set the "IPL Switch" (SW302) of the UP-600 to "ON".
4 Turn ON the power.
5 Starting of "IPL Mode".
The UP-600 displays
"IPL from Serial I/O"
6 Connect the P.C. and the UP-600 (CH2) via RS232. (Fig 1)
UP-600:CH2
PC
D-SUB 9pin - D-SUB 9pin
cable
D-SUB 9pin - modular RJ-45
conversion cable
(Open)
CD
D-sub 9pin
1
2
3
4
5
6
7
8
9
/CD
RD
SD
/ER
GND
/DR
/RS
/CS
/CI
RD
SD
/ER
GND
/DR
/RS
/CS
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
RD
SD
GND
CI
GND
S404
VCC
(+5V)
[UP-600]
Moduler RJ45
[PC]
D-sub 9pin
S403
on off
SW302
on off
IPL from Serial I/O
