11. WRITING / READING THE MAC
ADDRESS / FIRMWARE PROGRAM
1) WRITING THE MAC ADDRESS & FIRMWARE
PROGRAM

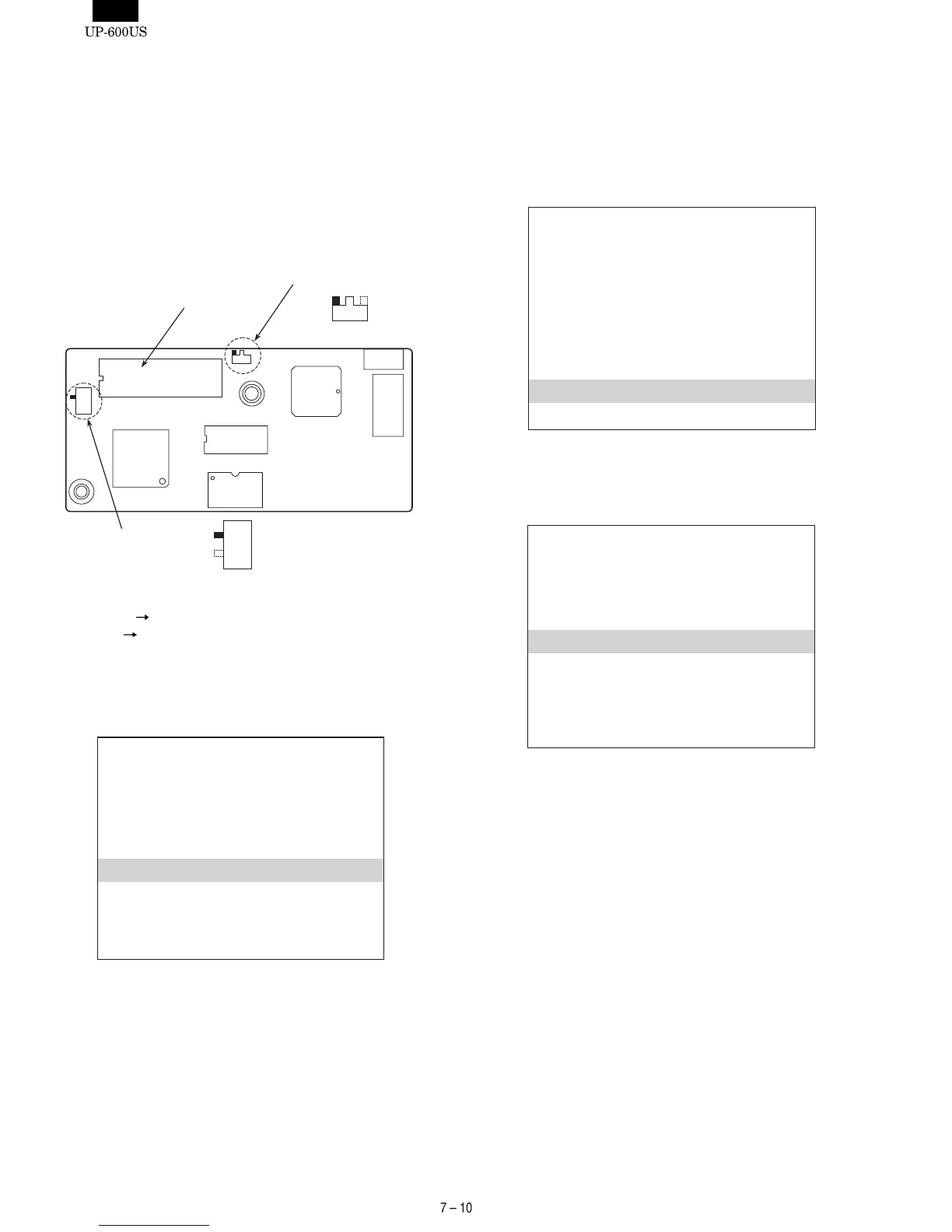

1) Install the EPROM (Master ROM) to the TCP/IP I/F PWB (IC5:IC
socket).
2) Set the following switches to the (Writing mode) on the TCP/IP I/F
PWB.
SW1 : [FLASH]
[EPROM]
SW2 : [GND]
[VCC]
3) Set the mode switch of the UP-600 to SRV position.
4) Turn ON the AC switch of the UP-600.
5) Display : [SRV MODE]
Select the [5. DIAGNOSTIC] and press the ENTER key
Display : [5. DIAGNOSTIC]
Select the [TCP/IP] and press the ENTER key
Display : [TCP/IP]
Select the [MAC ADD&FIRM WRITE] and press the ENTER key
