Sharp VC-V50S - Before the Adjustment; Electrical Adjustment; Location of Controls and Test Points

27
VC-V50S
VC-V80T
VC-V91T
5. ELECTRICAL ADJUSTMENT
Notes:
• Before the adjustment:
Electrical adjustments discussed here are often required after replacement of electronic components and mechanical
parts such as video heads.
Check that the mechanism and all electric components are in good working condition prior to the adjustments,
otherwise adjustments can not be completed.
• Instruments required:
Colour TV monitor Dual-trace oscilloscope
Audio signal generator AC milli-voltmeter
Blank video cassette tape Alignment tape (VROCPSV)
Screwdriver for adjustment
Colour bar signal generator

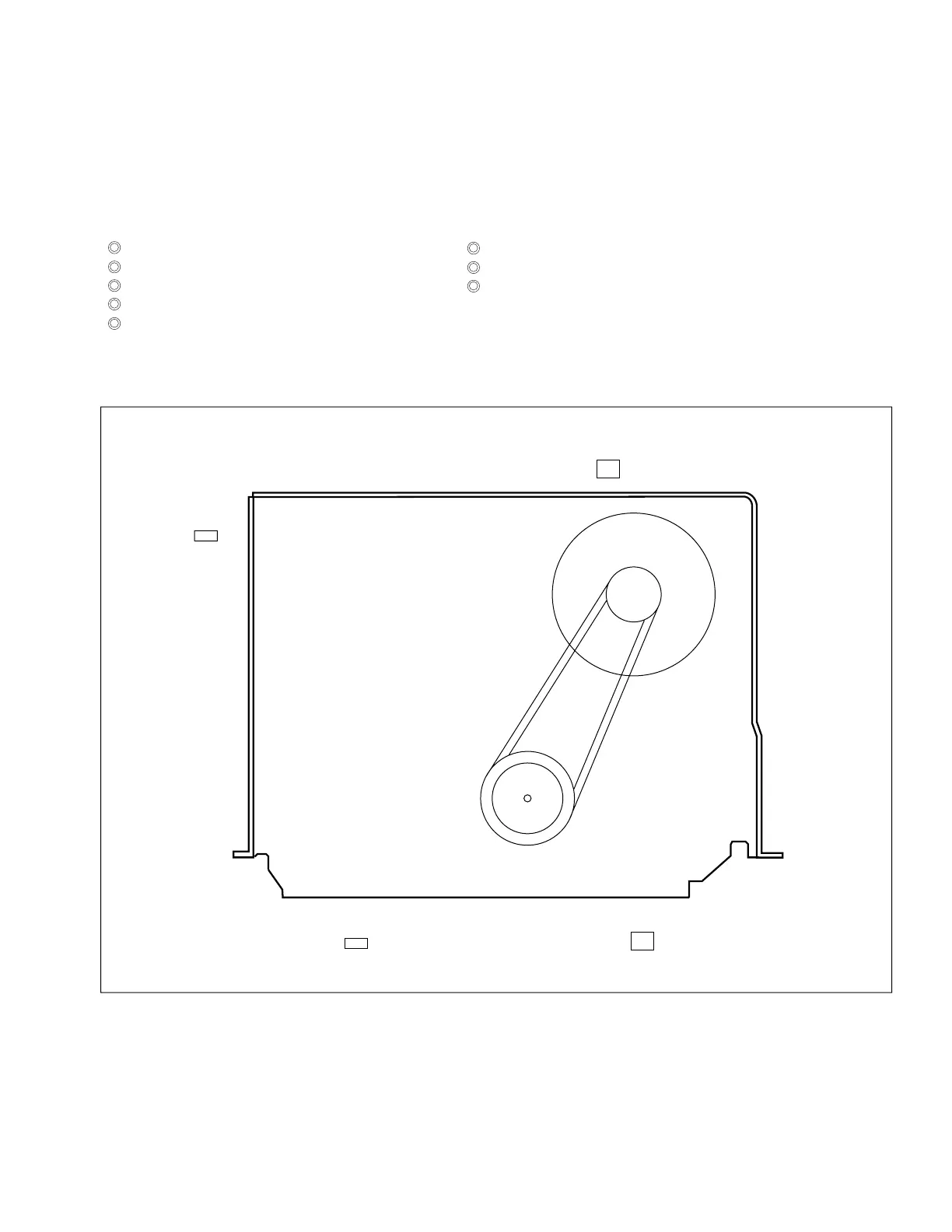

• Location of controls and test points
Figure 5-1.
P201
(TP202-3)
T601
R875
TP701-2
