Sharp VC-V50S - Parts Replacement; Replacement Parts List

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
VC-V50S
VC-V80T
VC-V91T
67
10. REPLACEMENT PARTS LIST
PARTS REPLACEMENT
Many electrical and mechanial parts in video cassette recorder have spe-
cial safety-related characteristics. These characteristics are often not evi-
dent from visual inspection nor can the protection afforded by them neces-
sarily be obtained by using replacement components rated for higher volt-
age, wattage, etc. Replacement parts which have these special safety char-
acteristics are identified in this manual; electrical components having such
features are identified by " å " and shaded areas in the Replacement
Parts Lists and Schematic Diagrams.
The use of a substitute replacement part which does not have the same
safety characteristics as the factory recommended replacement parts shown
in this service manual may create shock, fire or other hazards.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION

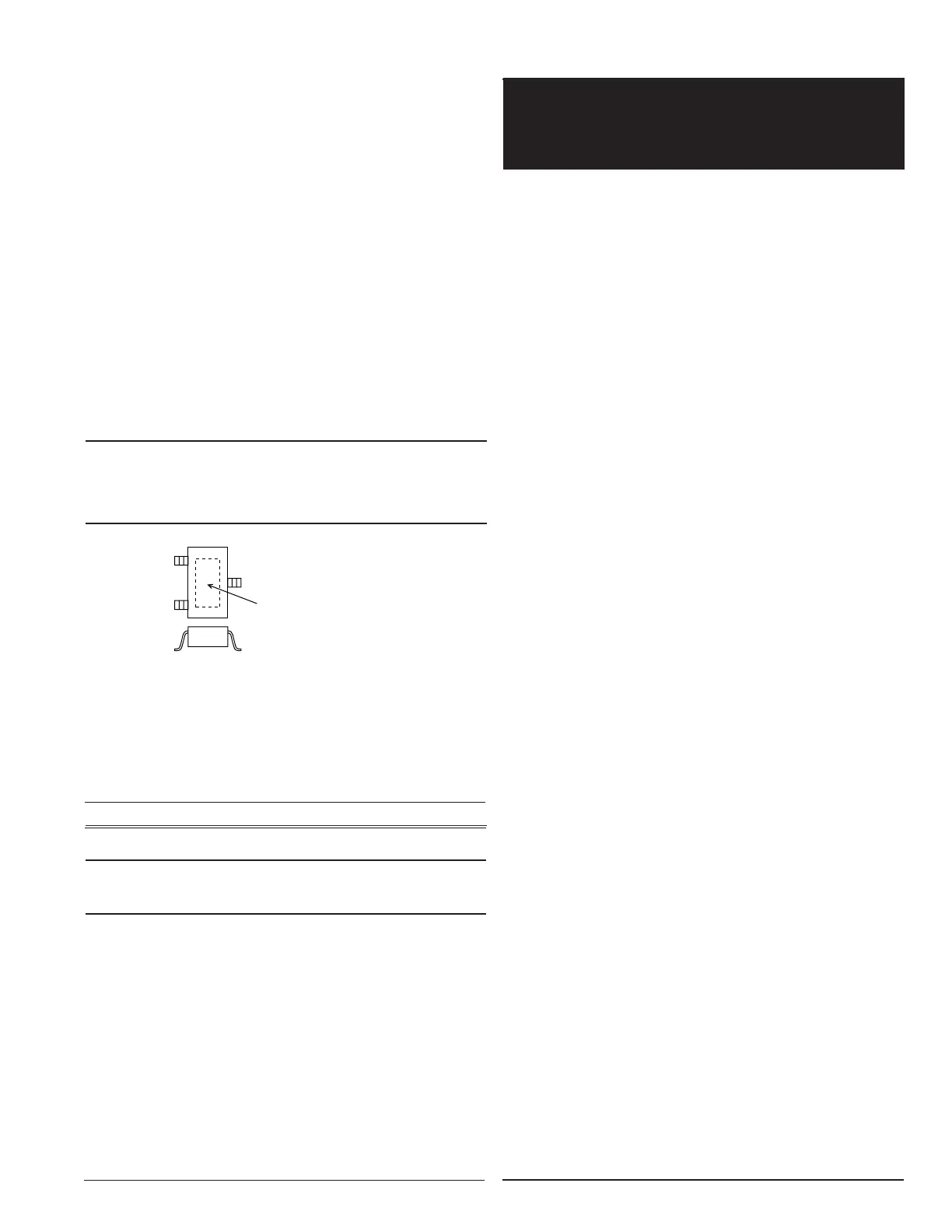

HOW TO IDENTIFY CHIP
TRANSISTORS AND
DIODES BY ITS MARKING
(1) Base/Input
(2) Emitter/Ground
(3) Collector/Output
Marking
Fig. 1
(3)
(1)
(2)
Package Marking Parts No.
Fig. 1 FQ VS2SA1037KQ-1
Fig. 1 BQ VS2SC2412KQ-1
Fig. 1 16 VSDTA144EK/-1
Fig. 1 15 VSDTA124EK/-1
Fig. 1 25 VSDTC124EK/-1
MARK★: SPARE PARTS-DELIVERY SECTION
Ref. No. Part No. ★ Description Code
DUNTK5790TEVN(VC-V50S)
DUNTK5790TEVP(VC-V80T)
DUNTK5790TEVQ(VC-V91T)
MAIN UNIT
CONVERTER
CNV201 RCNVR0007AJN9 V Converter BC
INTEGRATED CIRCUITS
IC201 VHiHA8317F/-1 V HA8317F, BA
Y/C Audio Processor
IC601 VHiBA7755A/-1 V BA7755A AE
IC651 VHiLA72634M-1 V LA72634M, Hifi Audio AR
Processor(V80T/V91T)
IC706 VHiLB1988//-1 V LB1988, Loading/Drum AQ
M Driver IC
IC801 RH-iX1606GEN2 J IX1606GE, QFP 80 AX
IC921 VHiKiA431//-1 V KiA431 AE
IC6101 VHiM65850FP-1 V M65850FP, Echo AL
(V91T)
IC6102 VHiBA15218F2E V BA15218F, Mic Amp AE
(V91T)
IC6103 VHiBA15218F2E V BA15218F, Mix Amp AE
(V91T)
IC6104 VHiBA15218F2E V BA15218F, Mix Amp AE
(V91T)
TRANSISTORS
Q251 VS2SA1037KQ-1 V 2SA1037KQ AA
Q301 VS2SD1306-E1E V 2SD1306(V80T/V91T) AD
Q302 VS2SD1306-E1E V 2SD1306(V80T/V91T) AD
Q303 VSKRC103S//-1 V KRC103S AA
Q306 VS2SA1037KQ-1 V 2SA1037KQ AA
Q501 VSKRC103S//-1 V KRC103S AA
Q502 VSKRC103S//-1 V KRC103S AA
Q602 VS2SC4488ST1E V 2SC4488ST AD
Q603 VS2SC3203Y/-1 V 2SC3203Y AB
Q604 VSKRA102S//-1 V KRA102S AA
Q605 VSiMX9/////-1 V IMX9 AC
Q801 VSKRA102S//-1 V KRA102S AA
Q802 VSKRA102S//-1 V KRA102S AA
Q803 VSKRA102S//-1 V KRA102S AA
Q804 VSKRA102S//-1 V KRA102S AA
Q805 VSKRA102S//-1 V KRA102S(V80T/V91T) AA
Q806 VSKRA102S//-1 V KRA102S(V80T/V91T) AA
Q809 VSKRA102S//-1 V KRA102S AA
Q810 VSKRA102S//-1 V KRA102S AA
Q811 VSKRC104S//-1 V KRC104S AA
Q813 VSKRA104S//-1 V KRA104S AA
å Q901 VS2SC3752LM1E V 2SC3752LM(V80T/V91T) AU
å Q901 VS2SC4304//-G V 2SC4304(V50S) AK
å Q902 VS2SD734EF+1E+ V 2SD734EF+ AC
Q921 VS2SC3198-Y-1 V 2SC3198-Y AA
Q922 VSKRA102S//-1 V KRA102S AA
Q923 VSKRC102S//-1 V KRC102S AA
Q927 VS2SB1117KU1E V 2SB1117KU AE
Q928 VSKRC103S//-1 V KRC103S AA
Q955 VS2SB1117KU1E V 2SB1117KU AE
Q956 VSKRC103S//-1 V KRC103S AA
Q957 VS2SB1117KU1E V 2SB1117KU AE
Q958 VSKRC103S//-1 V KRC103S AA
Q6101 VSDTC143TK/-1 V DTC143TK(V91T) AB
Q6102 VSDTC143TK/-1 V DTC143TK(V91T) AB
Q6103 VSDTC143TK/-1 V DTC143TK(V91T) AB
Q6104 VSKRA103S//-1 V KRA103S(V91T) AA
Q6105 VS2SC2412KQ-1 V 2SC2412KQ(V91T) AA
Q6106 VS2SC2412KQ-1 V 2SC2412KQ(V91T) AA
Q6107 VS2SC2412KQ-1 V 2SC2412KQ(V91T) AA
Q6108 VS2SC2412KQ-1 V 2SC2412KQ(V91T) AA
Q6109 VS2SC2412KQ-1 V 2SC2412KQ(V91T) AA
Q6111 VS2SC2412KQ-1 V 2SC2412KQ(V91T) AA
Q6112 VS2SC2412KQ-1 V 2SC2412KQ(V91T) AA
Q6121 VSKRA103S//-1 V KRA103S(V91T) AA
Q6122 VSDTC323TK/-1 V DTC323TK(V91T) AB
Q6123 VS2SC2412KQ-1 V 2SC2412KQ(V91T) AA
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
DUNTK5790TEVN - MAIN Unit(VC-V50S) —
DUNTK5790TEVP - MAIN Unit(VC-V80T) —
DUNTK5790TEVQ - MAIN Unit(VC-V91T) —
DUNTK5791TEV1 - Operation Unit(VC-V50S) —
DUNTK5791TEV3 - Operation Unit —
(VC-V80T/V91T)
DUNTK5792TEV1 - LED Unit(VC-V91T) —
