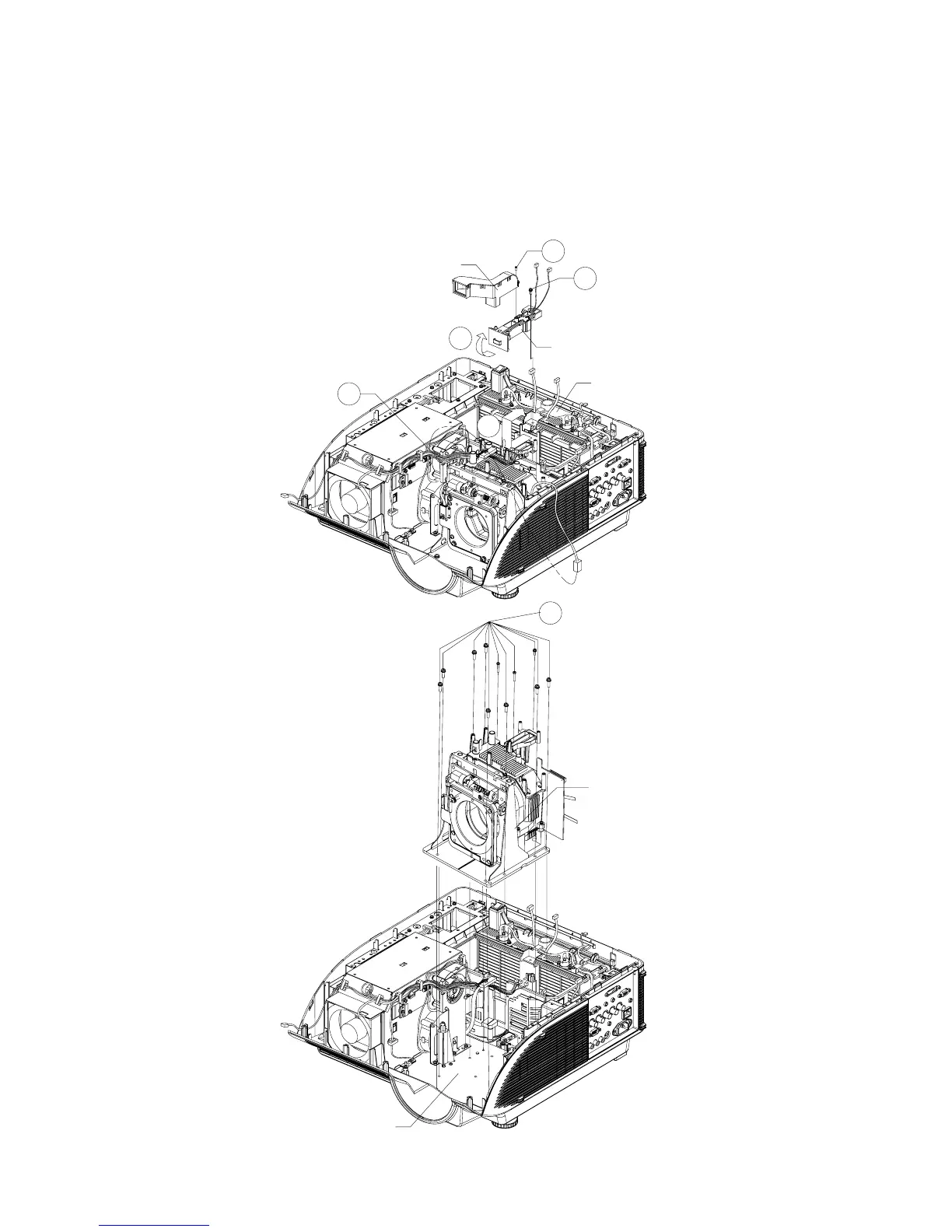

[10] Removing the Optical Engine and Lens Shift
1. Remove the screw from the rod duct and then detach the rod duct.
2. Remove the screw from the lamp channel top.
3. Unhook the front of the lamp channel top and take it out.
4. Slide the bimetal cover and detach it out.
5. Release the cable tie and then disconnect the left speaker connector.
6. Remove the eight screws from the lens shift and remove three screws from the optical engine and then lift the lens shift and optical engine out of
position.
10-3
10-5
10-1
10-2
10-4
10-6
Rod Duct
Lamp Channel Top
Bimetal Cover
Lens Shift
Chassis
To Next Page
