References
Maintenance

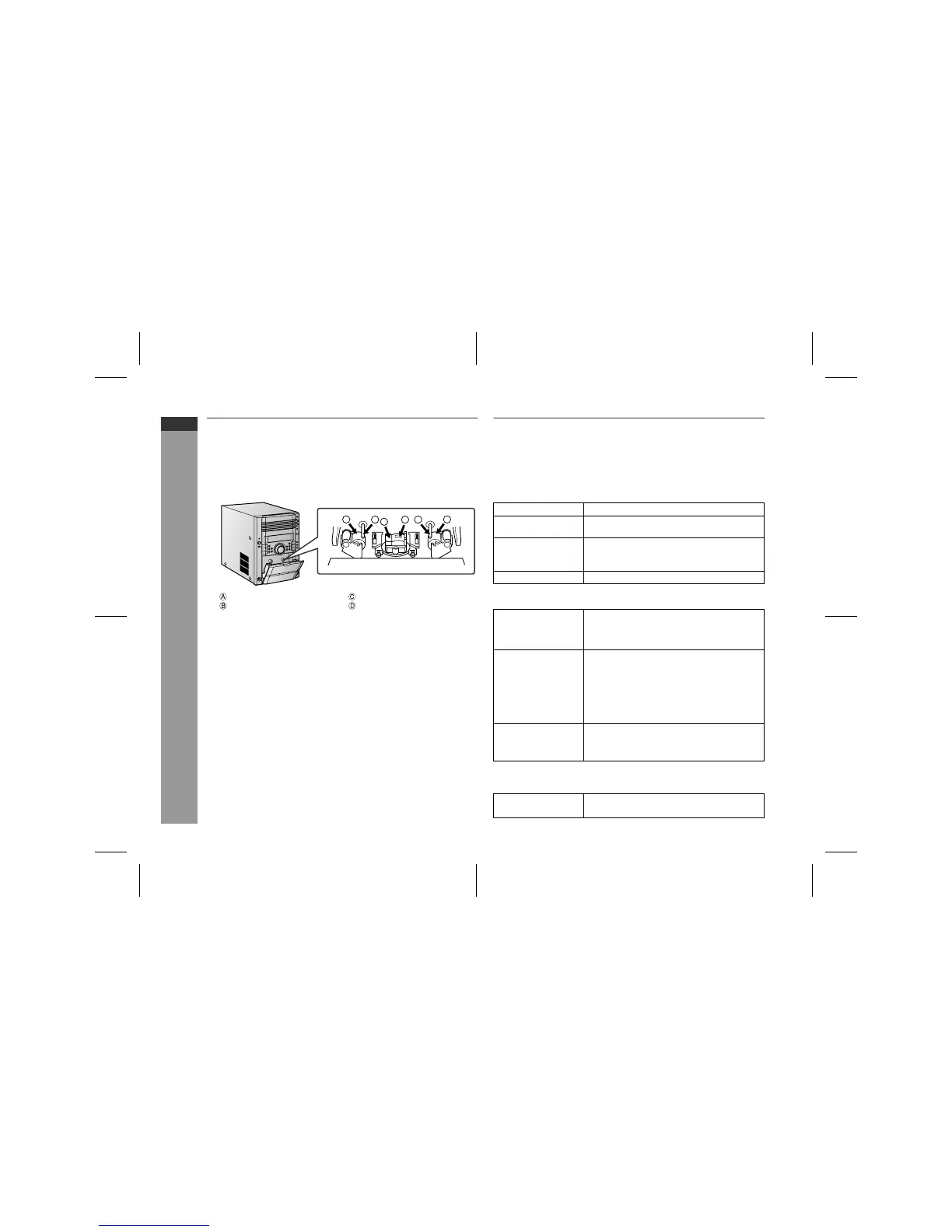

" Cleaning the tape-handling parts
!
Dirty heads, capstans or pinch rollers can cause poor sound and
tape jams. Clean these parts with a cotton swab moistened with
commercial head/pinch roller cleaner or isopropyl alcohol.
!
When cleaning the heads, pinch rollers, etc., unplug the unit
which contains high voltages.
!
After long use, the deck's heads and capstans may become mag-
netised, causing poor sound. Demagnetise these parts once
every 30 hours of playing/recording time by using a commercial
tape head demagnetiser. Read the demagnetiser's instructions
carefully before use.
" Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth and a diluted soap
solution, then with a dry cloth.
Caution:
!
Do not use chemicals for cleaning (petrol, paint thinner, etc.). It
may damage the cabinet finish.
!
Do not apply oil to the inside of the unit. It may cause malfunc-
tions.
Specifications
As part of our policy of continuous improvement, SHARP reserves
the right to make design and specification changes for product
improvement without prior notice. The performance specification fig-
ures indicated are nominal values of production units. There may be
some deviations from these values in individual units.
" General
" Amplifier
" Video CD
Pinch roller Erase head
Capstan Recording/Playback head
A
A
C
D
BB
Power source AC 110/127/220/230 - 240 V, 50/60 Hz
Power
consumption
115 W
Dimensions Width: 185 mm (7-1/4")
Height: 260 mm (10-1/4")
Depth: 307 mm (12")
Weight 6.4 kg (14.1 lbs.)
Output power MPO: 200 W (100 W + 100 W) (10 % T.H.D.)
RMS: 100 W (50 W + 50 W) (10 % T.H.D.)
RMS: 76 W (38 W + 38 W) (0.9 % T.H.D.)
Output terminals Speakers: 6 ohms
Headphones: 16 - 50 ohms
(recommended: 32 ohms)
Subwoofer pre-output (audio signal):
200 mV/10 k ohms at 70 Hz
Video out: 1 Vp-p (75 ohms)
Input terminals Video/Auxiliary (audio signal):
500 mV/47 k ohms
Microphone 1/2: 1 mV/600 ohms
Video output
format
PAL/NTSC
