12. Connections and Communications with External Equipment
12.2 Connecting Personal Computers
It is possible to output the weight values as well as the printer, using the (P/N:S321-62520-01 USB-Serial
replacement kit) of optional. Connect personal computers to the balance in accordance with the following
procedures.
1 Switch off the power to the balance.
2 Connect the USB-Serial replacement cable
between the USB connector on the PC.
3 The USB driver will be automatically installed on
the PC.
4 Connect the USB-Serial replacement cable to
the [RS 232C connector] on the rear of the
balance using RS232C cable(25P-9P).
5 Switch on the power to balance.
Notes
If the USB driver does not install correctly
There are cases in which the USB driver will not be installed correctly if the
personal computer concerned is not connected to the Internet (not
connected to a LAN).
In this event, download the following instruction manual and USB driver from
the Internet, and perform the installation procedure once again.
USB Interface Driver and Installation Manual Download Page
https://www.shimadzu.com/an/balance/moisture/moc63u3.html
6 Download the [Balance Keys] software for collecting data
(1) Log into a personal computer equipped with Internet access with administrator authority.
(2) Start up the browser, and access the following site.
https://www.shimadzu.com/an/balance/index.html
(3) Click on [Download] on the [Balance Keys Data Collection Software] page, and then download the
file in accordance with the on-screen instructions.

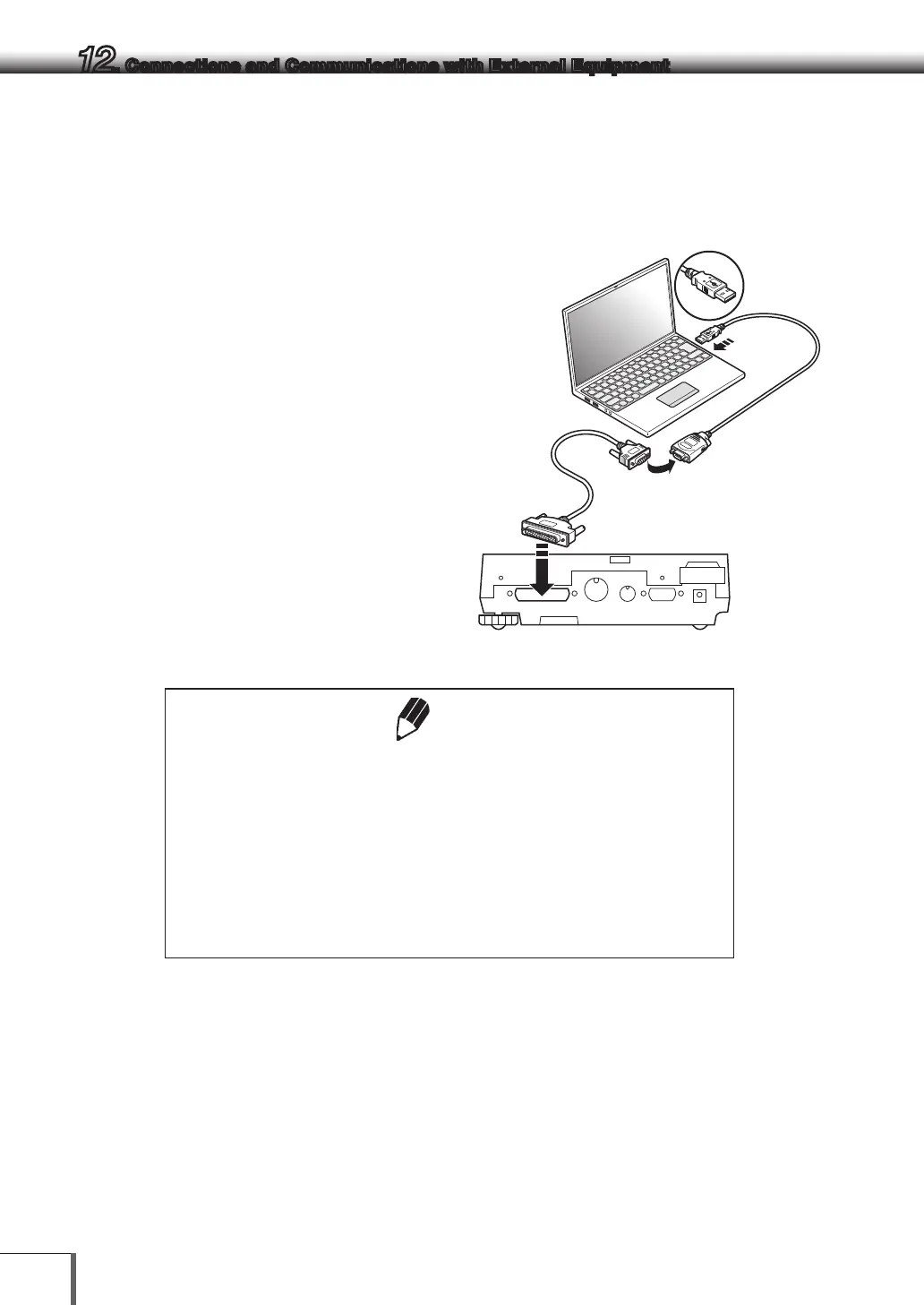

PC
Rear of the balance
Connect with a USB-Serial
replacement cable
