Shimano E6100 - 3.2.3 Adjusting the saddle height: Quick-release skewer*

EN-16 Original User Guide | Pedelec Shimano Steps Version 1

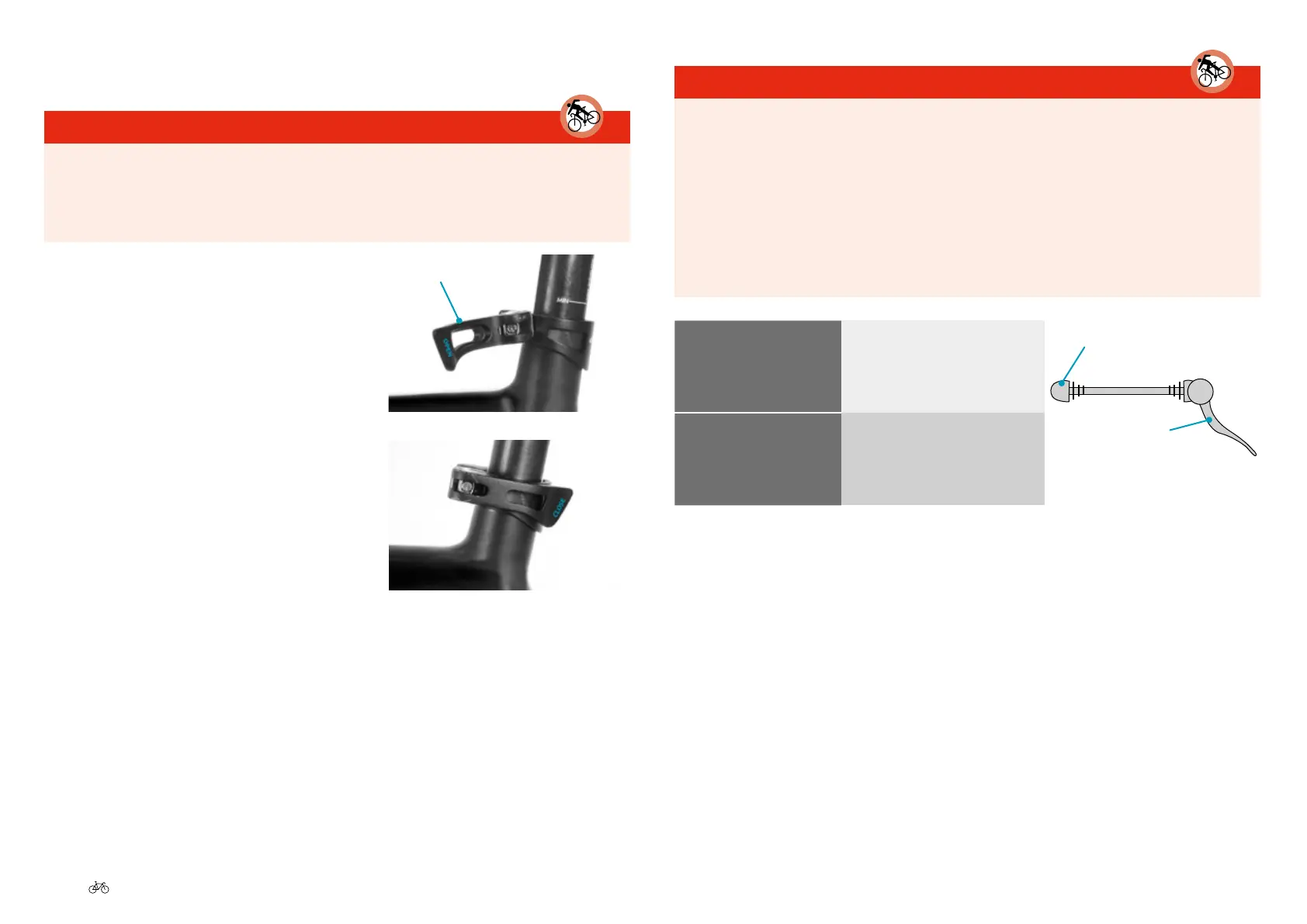

3.2.3 Adjusting the saddle height: Quick-release skewer
*
DANGER
Thequick-releaseskewermustbecorrectlyclosedbeforeyouseto.
Otherwise the seatpost can loosen or fracture – if that happens while
you are riding the bike you could fall o, resulting in serious injuries.
1. Open the quick-release skewer by
swinging the lever by 180˚. You will
now usually be able to see the word
‘OPEN’ on the inside of the lever.
2. Close the quick-release skewer by
swinging the lever by 180˚. You will
now usually be able to see the word
‘CLOSE’ on the outside of the lever.
Quick-release skewer
For 1. Quick-release skewer open
For 2. Quick-release skewer closed
DANGER
It should be so hard to close the quick-release skewer that you need
to use the ball of your hand (120 N: corresponds to a weight force
of 12 kg). You should have the mark of the lever imprinted on your
hand. Otherwise, it could open when you are cycling, which could
lead to the seatpost coming loose and causing you to fall. If you close
the quick-release skewer too tightly, the seatpost can break; if this
happens when you are cycling, you could fall.
Quick-release ske-
wer is too easy to
close
1. Turn the adjustment nut
clockwise.
2.
Swing the quick-release
skewer closed again.
Quick-release skewer
Adjustment nut
Quick-release skewer opened
Quick-release ske-
weristoostito
close
1. Turn the adjustment nut
anticlockwise.
2.
Swing the quick-release
skewer closed again.
3. Try to twist the saddle to check that it is rmly xed.
*dependent on model
