Original User Guide | Pedelec Shimano Steps Version 1 EN-45

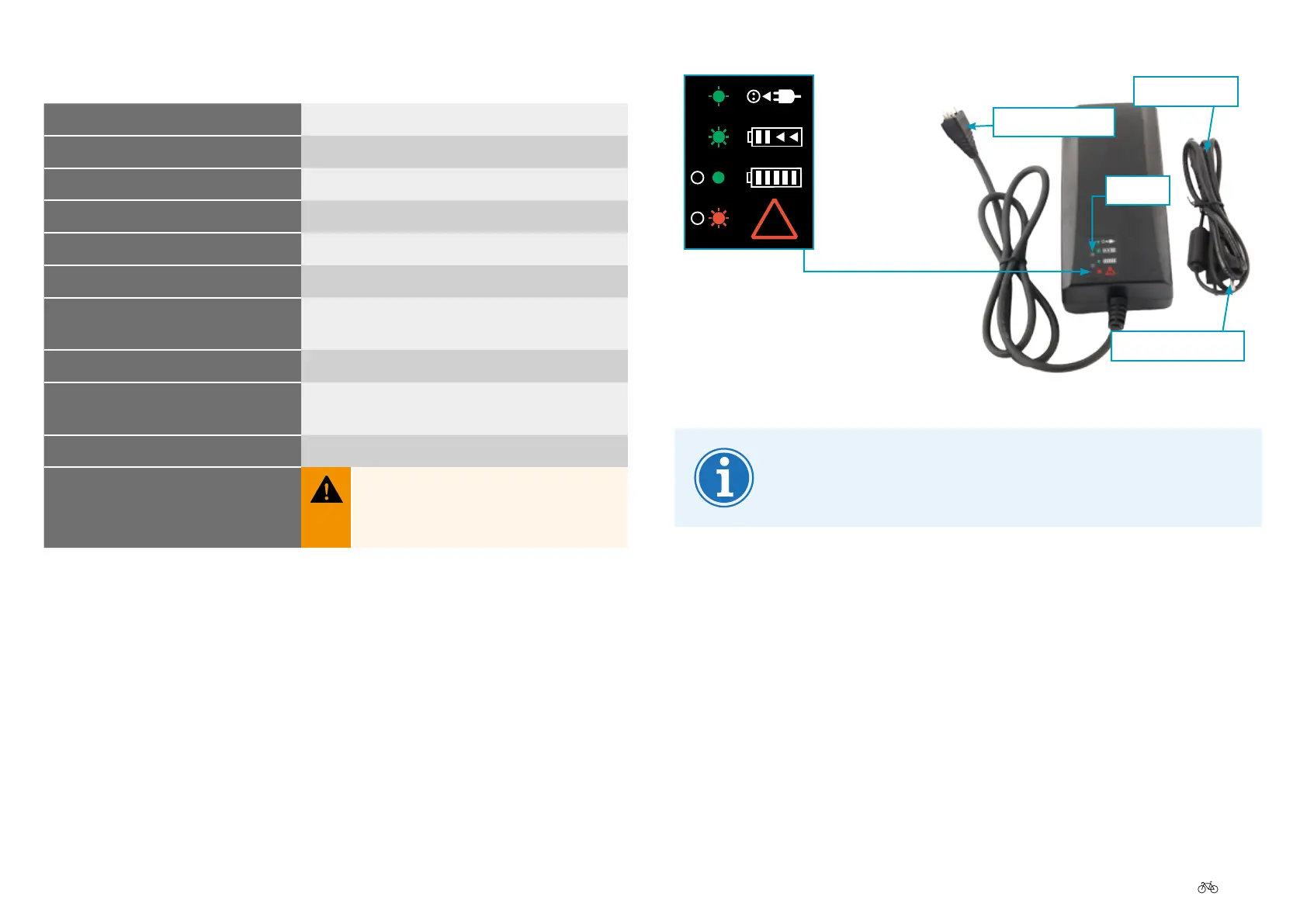

6.2 Technical details
Battery voltage
36 V
AC input voltage
230 - 240 V
Frequency
50 – 60 Hz
Max. DC output voltage
42 V
Max. charge current
4 A
Dimensions ( L | W | H )
206 mm | 94 mm | 61 mm
Permissible ambient
temperature when charging
0 to +40 °C
Storage temperature
-10 to +50 °C
Recommended storage
temperature
18 to 23 °C
Weight
753 g
Protection class
The charger is only intended to be used
indoors. Keep the charger away from rain
and moisture. Water penetrating into the
charger poses a risk of electric shock.
LEDs
Mains connector
Charging cable
Power cable
!
Charger connected to
power supply
| green LED ashes
Battery being charged
| green LED ashes
Fully charged
| green LED continually ON
Charging fault
| red LED ashes
Description of
charging indicator
The charging display symbols can vary. If you are not sure
what the symbols mean, contact your cycle dealer.
