Dealer’s Manual (SG-C7000-5V / SG-C7000-5R / SG-C7000-5C / SG-C7000-5D)
Return to index page
Click here for the latest Dealer's Manual

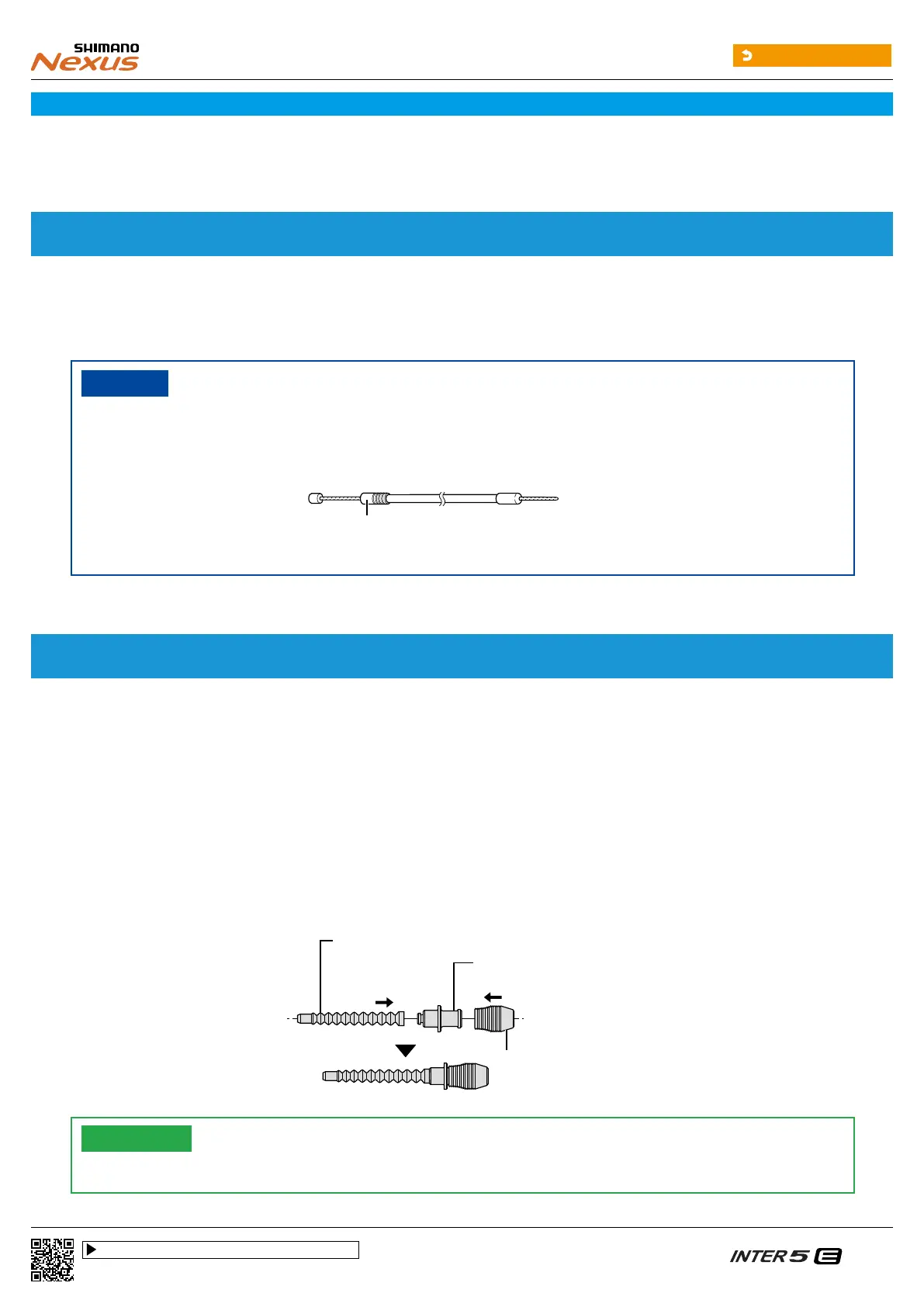

Installation of the shifting cable
Shifting lever side
1. Install the inner cable and outer casing aligned with the shifting lever.
Refer to the dealer's manual of the shifting lever for details.
NOTICE
• Make sure that the sealed outer cap is at the shifting lever end.
Shifting lever side
Sealed outer cap
Cassette joint side
Cassette joint side
1. Operate the shifting lever and set to the specified gear position.
SG-S7001 (internal 11-speed): 11-speed
SG-S7001 (internal 8-speed): 8-speed
SG-C6001 / SG-C6011 (internal 8-speed): 1-speed
SG-C7000 / SG-C7002 (internal 5-speed): 5-speed
2. Install the rubber cover and rubber bellows to the outer casing holder.
Rubber cover
Outer casing holder
TECH TIPS
• This operation is not required if there is no rubber cover or rubber bellows.
