ADJUSTMENT
Adjusting the cassette joint
1. Operate the shifting lever and set to the specified gear position.
SG-S7001 (internal 11-speed): 11-speed to 6-speed
SG-S7001 (internal 8-speed): 8-speed to 4-speed
SG-C6001 / SG-C6011 (internal 8-speed): 1-speed to 4-speed
SG-C7000 / SG-C7002 (internal 5-speed): 5-speed to 3-speed

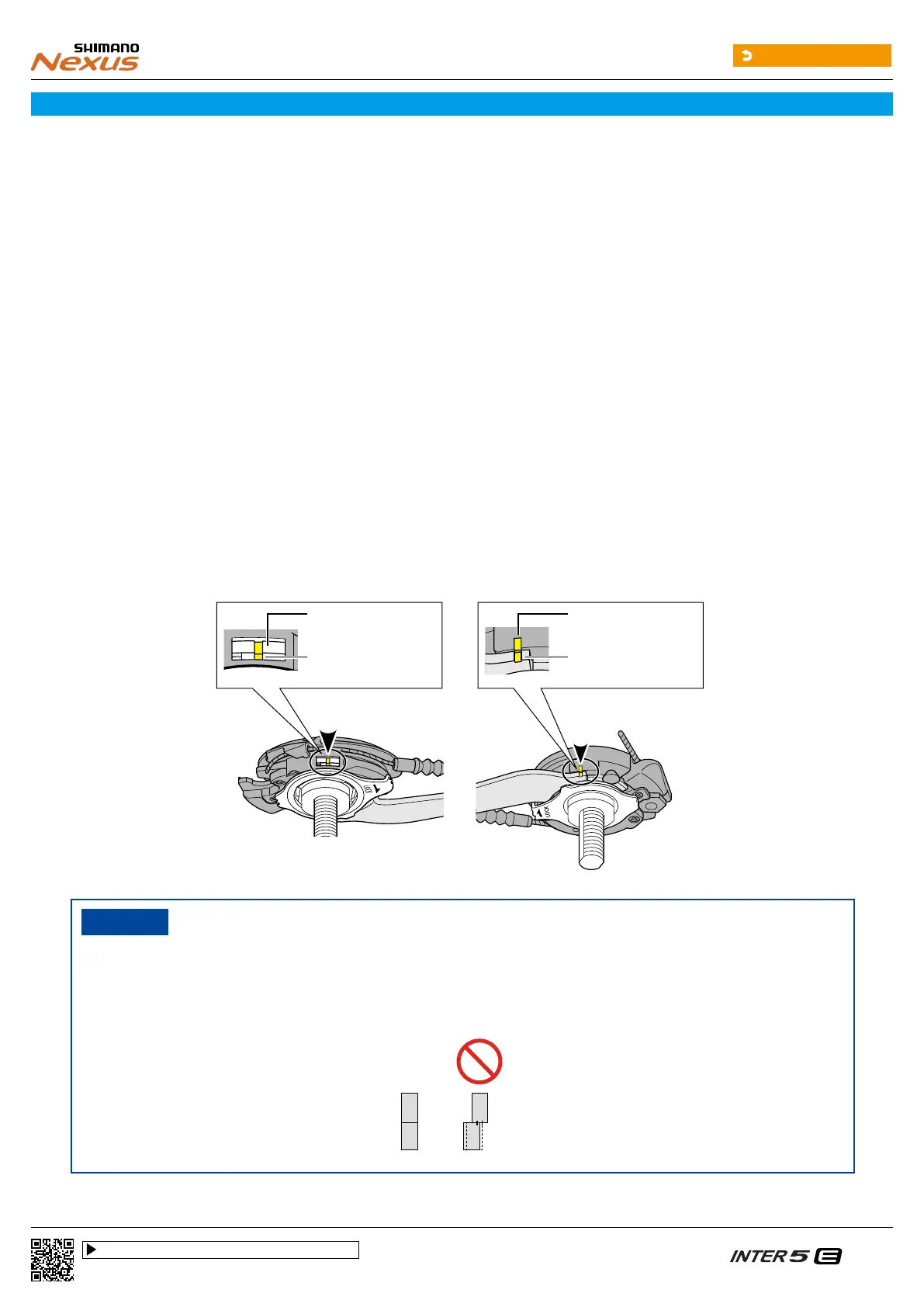

2. Turn the cable adjustment barrel and align the setting lines.
Check that the yellow setting lines on the cassette joint bracket and pulley are aligned with
each other. The yellow setting lines on the cassette joint are located in two places.
When the bicycle is upright
Pulley
Bracket
Should be aligned Should be aligned
Pulley
Bracket
When the bicycle is upside
down
NOTICE
• If the overlapping area falls short of two thirds of each setting line, the gears
may not be properly engaged during pedaling, resulting in abnormal noise or
free spinning of the pedals.
