INSTALLATION/REMOVAL
Installing the sprocket (without chain guard)

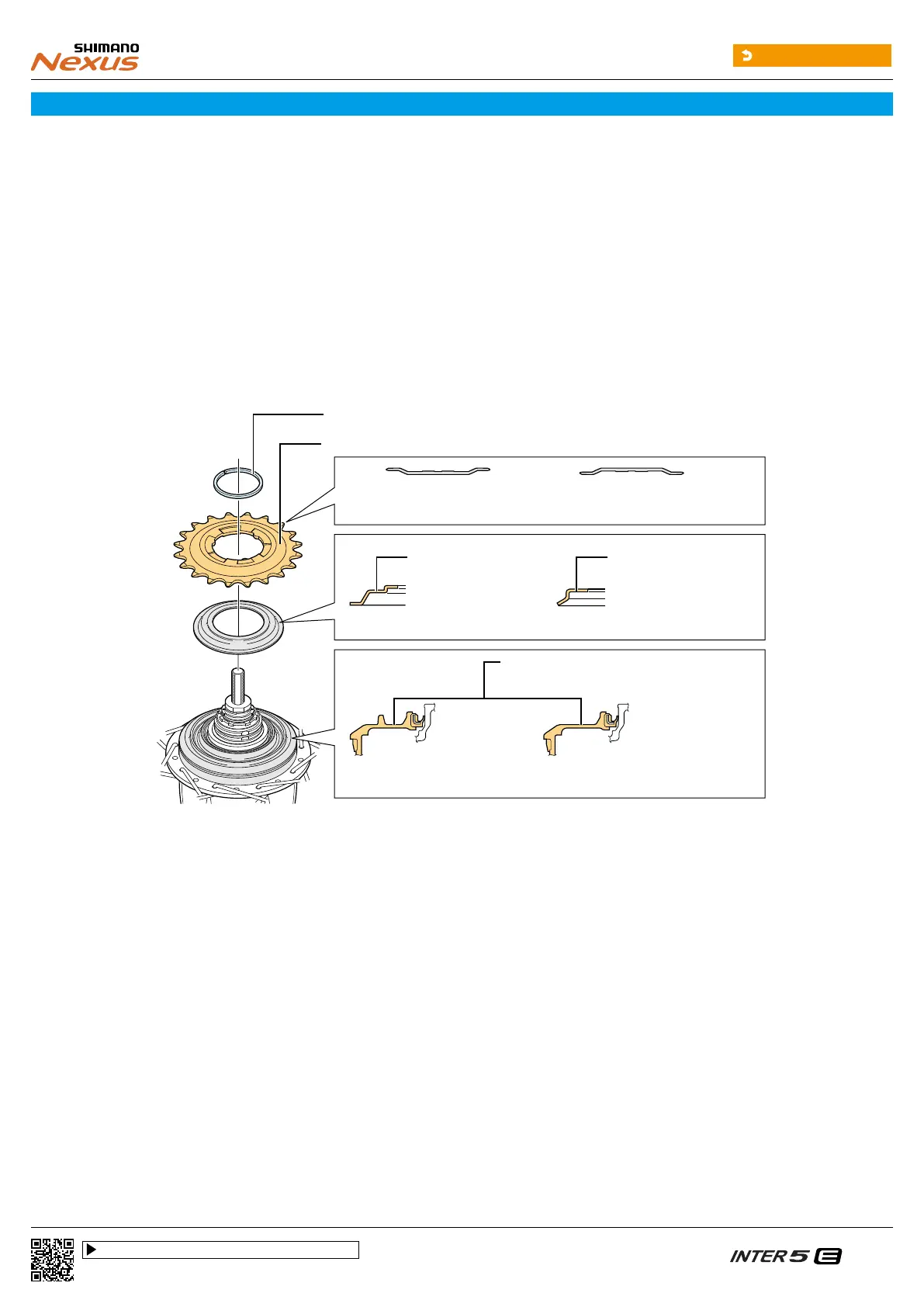

1. Install the right hand dust cap, and then secure the sprocket with the
snap ring.
Check the specifications, and note the orientation of the right hand dust cap and sprocket
when installing them.
Snap ring
Sprocket
Specification A Specification B
Outward assembling Inward assembling
Specification A
Specification B
Right hand dust cap
Right hand dust
cap C
Right hand dust
cap B
