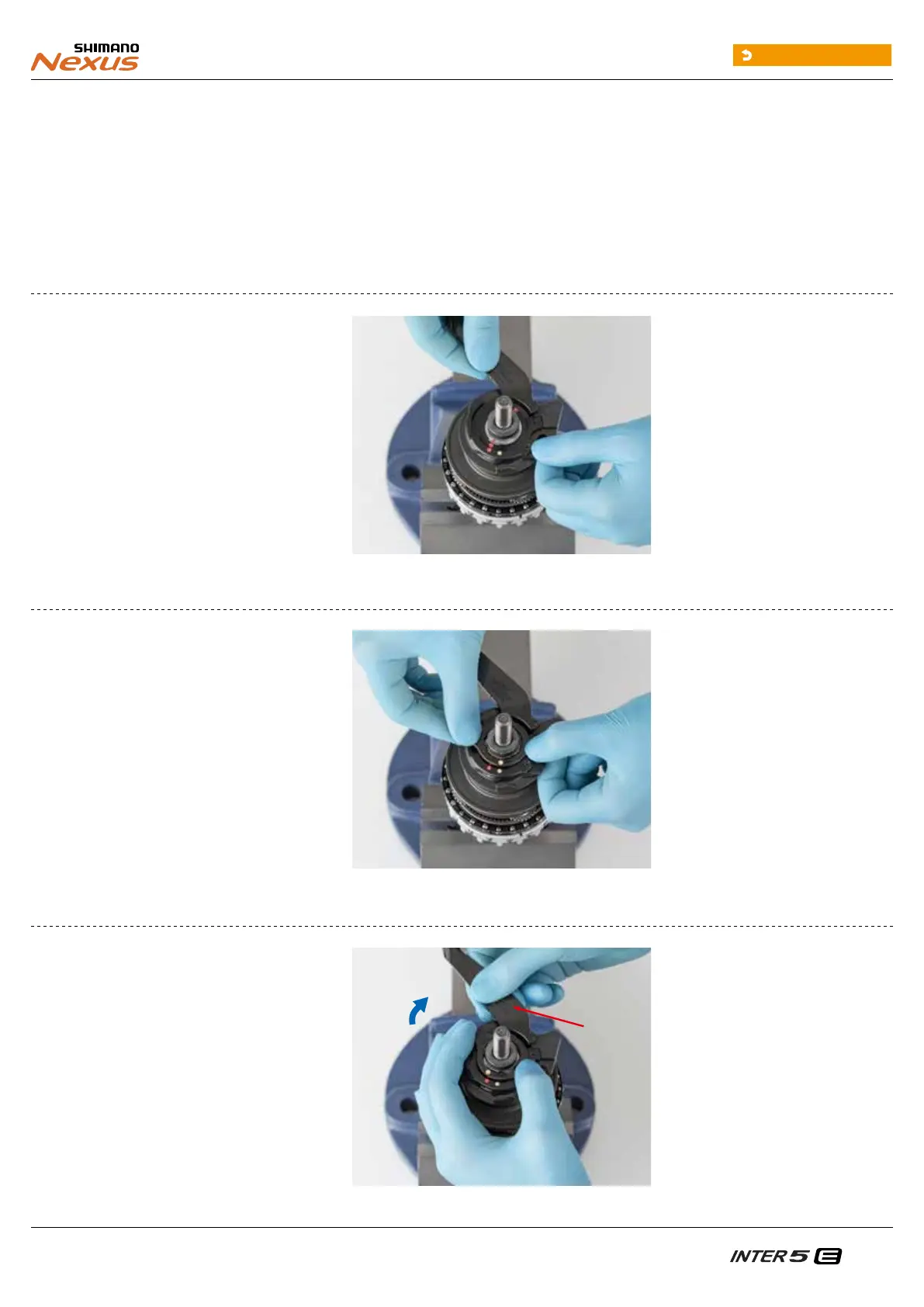

(1) Turn the cassette joint pulley in the direction
of the arrow to align the red
•
marks on the
pulley and the bracket.
(2) Install it with the red
•
marks on the cassette
joint aligned with the red
•
marks on the
right side of the hub body.
With the brake arm facing downward, pinch the flat portion of the axle with a vise, and secure the internal
assembly in place.
Disassembling the Internal Assembly
Installing the cassette joint
1. Set the cassette joint.
2. When installing the cassette joint
mounting ring, align the yellow
mark with the yellow mark on
the pulley of the cassette joint.
3. Turn the cassette joint mounting
ring 45° clockwise.
•
•
Hold down the bracket securely when performing
work.
Bracket
