Locknut 17mm (Y-35P 28000)
Stop Nut 22mm (Y-35P 22000)
(1) Secure the hub back into place with the
drive side downward.
(2) Use TL-7S20 to remove the nut.
Refer to the part breakdown (p. 78) for the names of parts.
Replacing the Internal Assembly
NOTICE
•
Forcibly pulling it may cause damage
to the bracket cover because of its
material properties.
•
Do not damage the threads of the
hub axle.

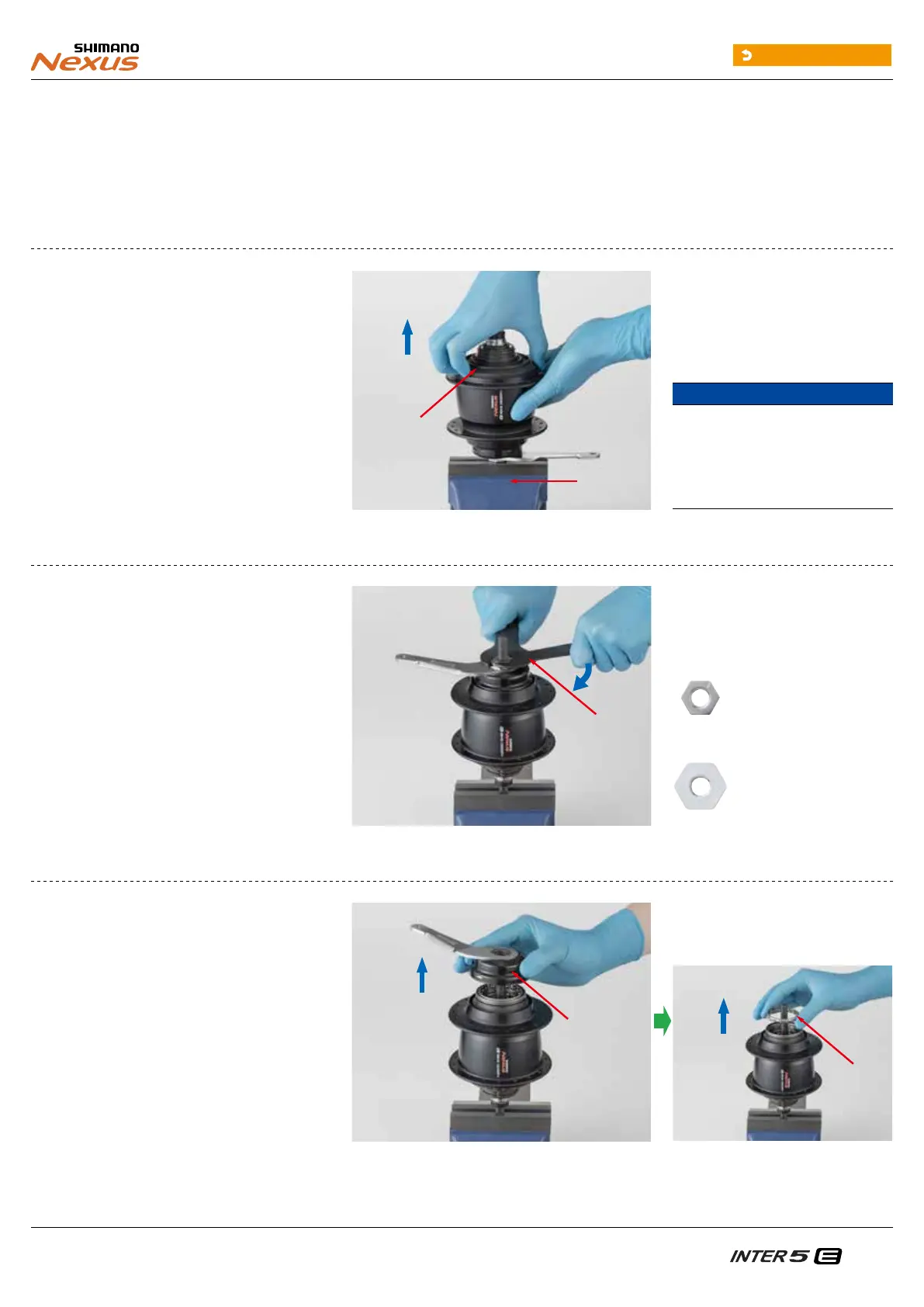

1.
Hold the two beveled surfaces of
the hub axle on the brake arm side
in a vise and remove the dust cap.
2. Remove the lock nut and stop nut.
3. Remove the brake arm unit and
ball retainer from the hub axle.
TL-7S20
Dust cap
Vise
Brake arm unit
Ball retainer
