Dealer’s Manual (SG-C7050-5V / SG-C7050-5R / SG-C7050-5C / SG-C7050-5D)
Return to index page
https://si.shimano.com/DM/CASG003
Click here for the latest Dealer's Manual
INSTALLATION
Refer to the internal geared hub-compatible SHIMANO STEPS dealer's manual for information on installing parts not listed in this document.

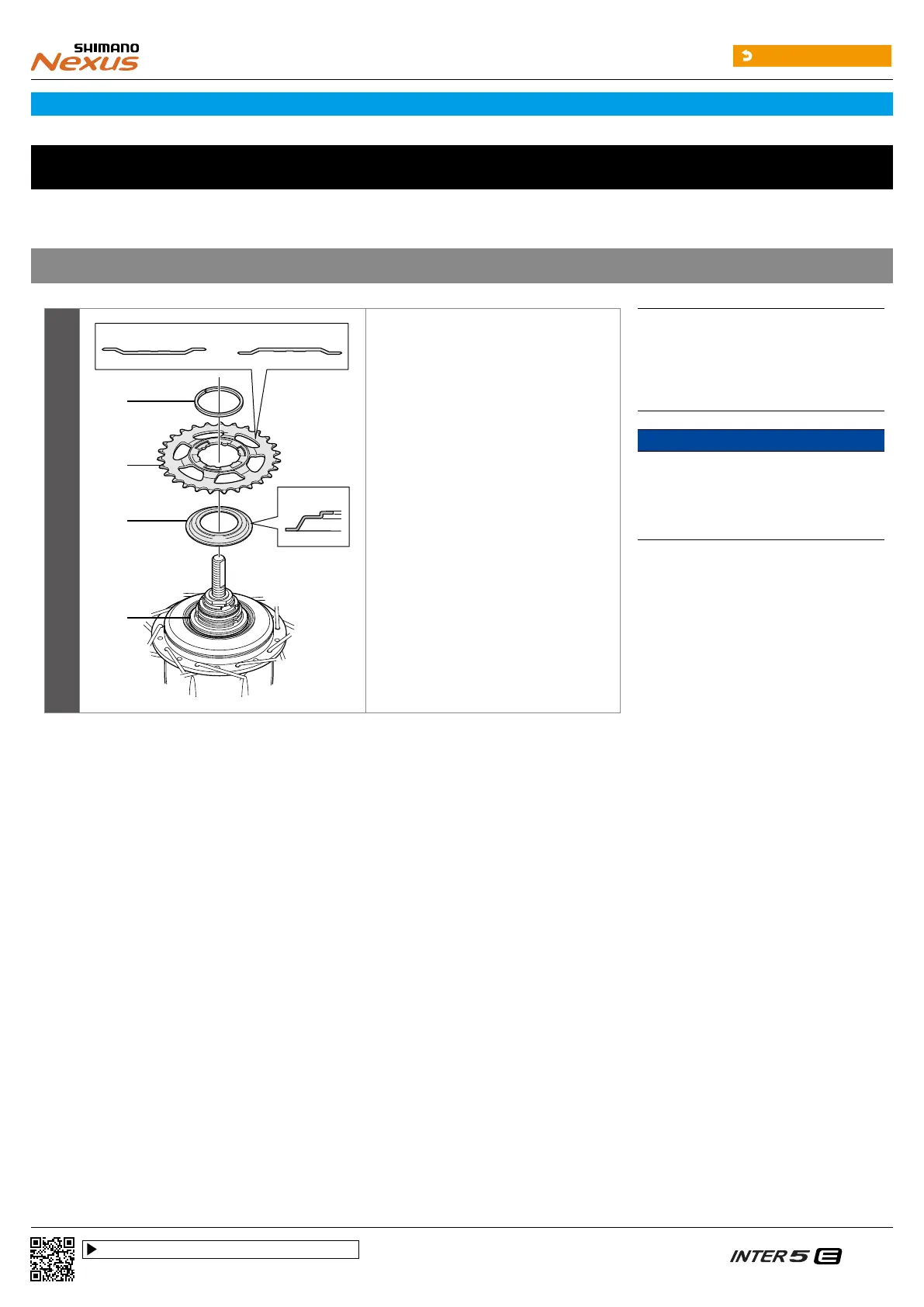

Installation of sprocket to the hub
(A)
(B)
(C)
(D)
(z)
(y)(x)
Place right-hand dust cap onto the driver
on the right side of the hub body.
Next, install the sprocket and secure it in
place with the snap ring.
(x)
Outward assembling: MU-UR510
only
(y)
Inward assembling: Compatible
with all motor units
(z)
Note the direction
(A)
Snap ring
(B)
Sprocket
(C)
Right-hand dust cap C
(D)
Driver
NOTICE
•
Only SM-C7050 and CS-C7000 can be used
with SG-C7050.
•
If using the MU-UR510 motor unit, outward
assembling of the sprocket is possible.
To Next Page
