Dealer’s Manual (SG-C7050-5V / SG-C7050-5R / SG-C7050-5C / SG-C7050-5D)
Return to index page
https://si.shimano.com/DM/CASG003
Click here for the latest Dealer's Manual

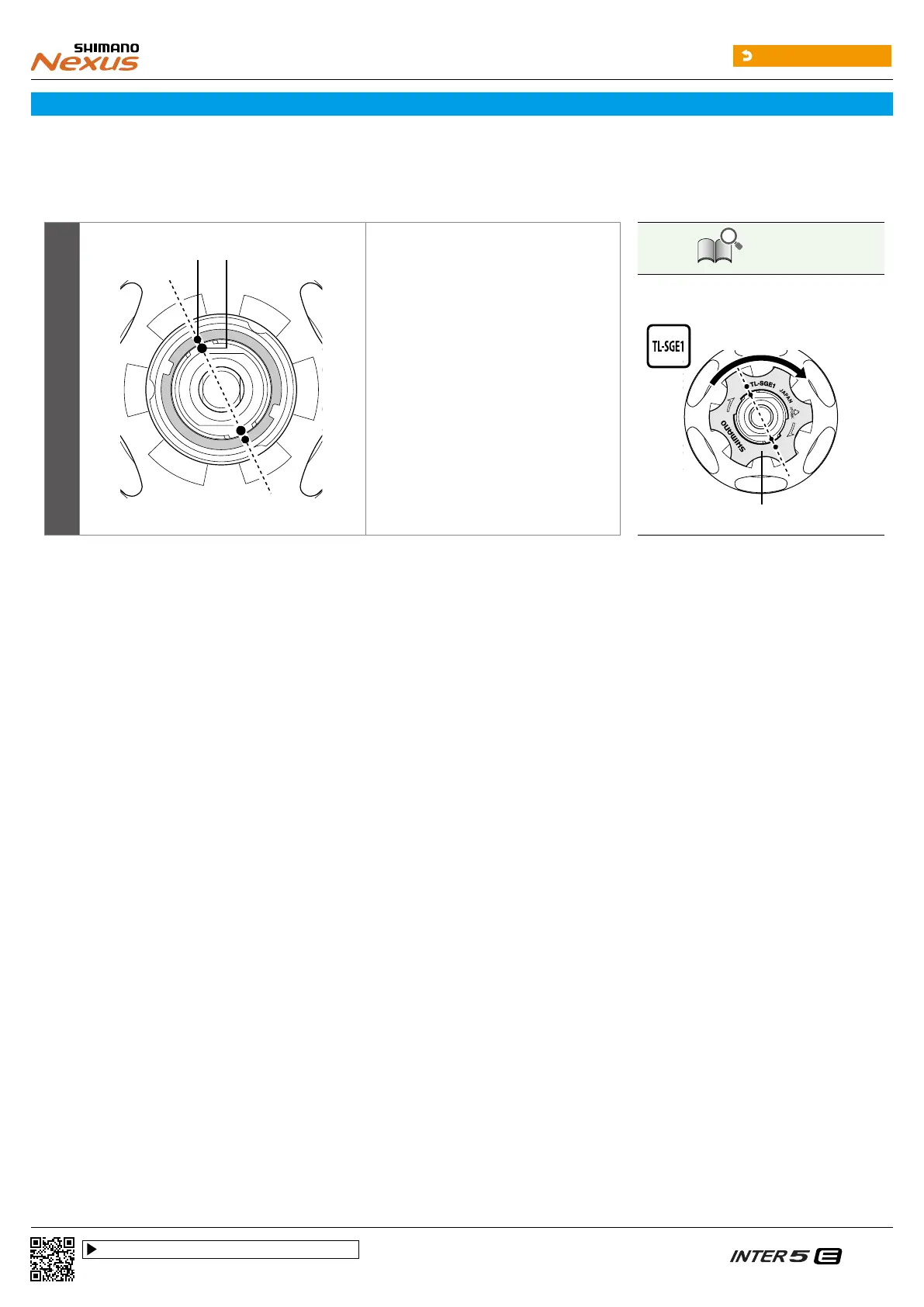

Installation of the motor unit to the hub
Unless otherwise noted, MU-UR500 is used as an example for this explanation.
1
(z)
(y)
(y)
Check that the two ● marks (red) on the
right side of the hub body are aligned.
(y)
● mark (red)
(z)
Should be aligned
TECH TIPS
If the two ● marks (red) are not aligned, use
the TL-SGE1 to align the two ● marks (red).
Turn clockwise
TL-SGE1
