CONNECTION OF THE ELECTRIC WIRES
Refer to the internal geared hub-compatible SHIMANO STEPS dealer's manual for information on connecting electric wires to parts not listed in this
document.
NOTICE
Information on the electric wire and the SHIMANO original tool is described in “Notice” in “TO ENSURE SAFETY”. Be sure to refer to it before starting the work.

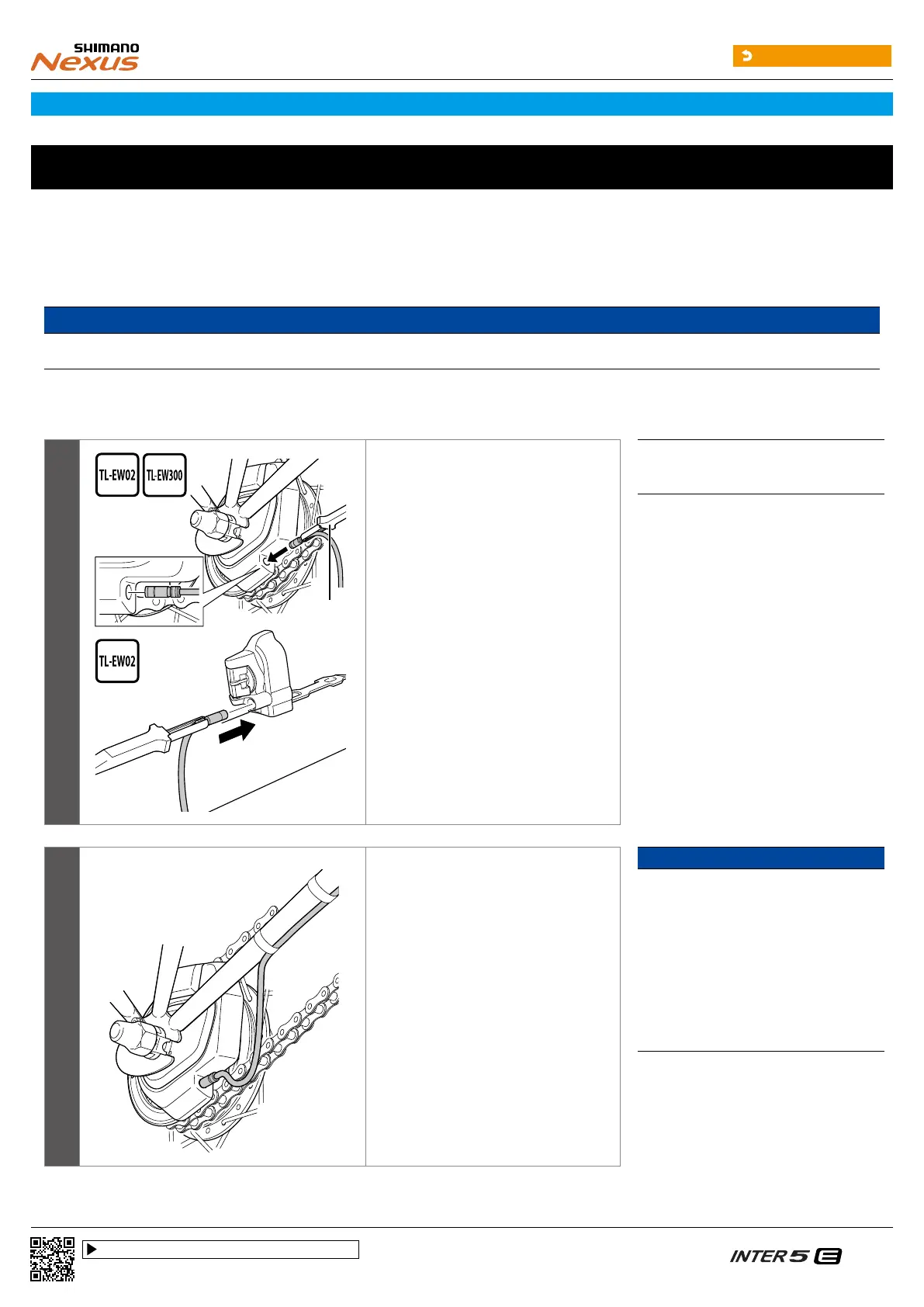

Connection to motor unit
1
(A)
Connect the electric wires to the motor
unit and the battery mount.
(A)
TL-EW02 (MU-UR500)
TL-EW300 (MU-UR510)
2
Temporarily secure the electric wire
along the frame with tape, and connect
it to junction [B].
NOTICE
•
When routing the electric wire to the
motor unit, be sure to install it to the
bottom of the chainstay to avoid any
interference between the cable and the
chain.
•
If the motor unit is the MU-UR510
(EW-SD300 type), use the conversion
adapter (EW-AD305) to connect the
EW-SD50 and EW-SD300, and connect them
to junction [B].
