Disconnecting the shifting cable when
removing the rear wheel from the frame
1. Set the shifting lever to the specified gear.
SG-S7001 (internal 11-speed): 11-speed
SG-S7001 (internal 8-speed): 8-speed
SG-C6001 / SG-C6011 (internal 8-speed): 1-speed
SG-C7000 / SG-C7002 (internal 5-speed): 5-speed

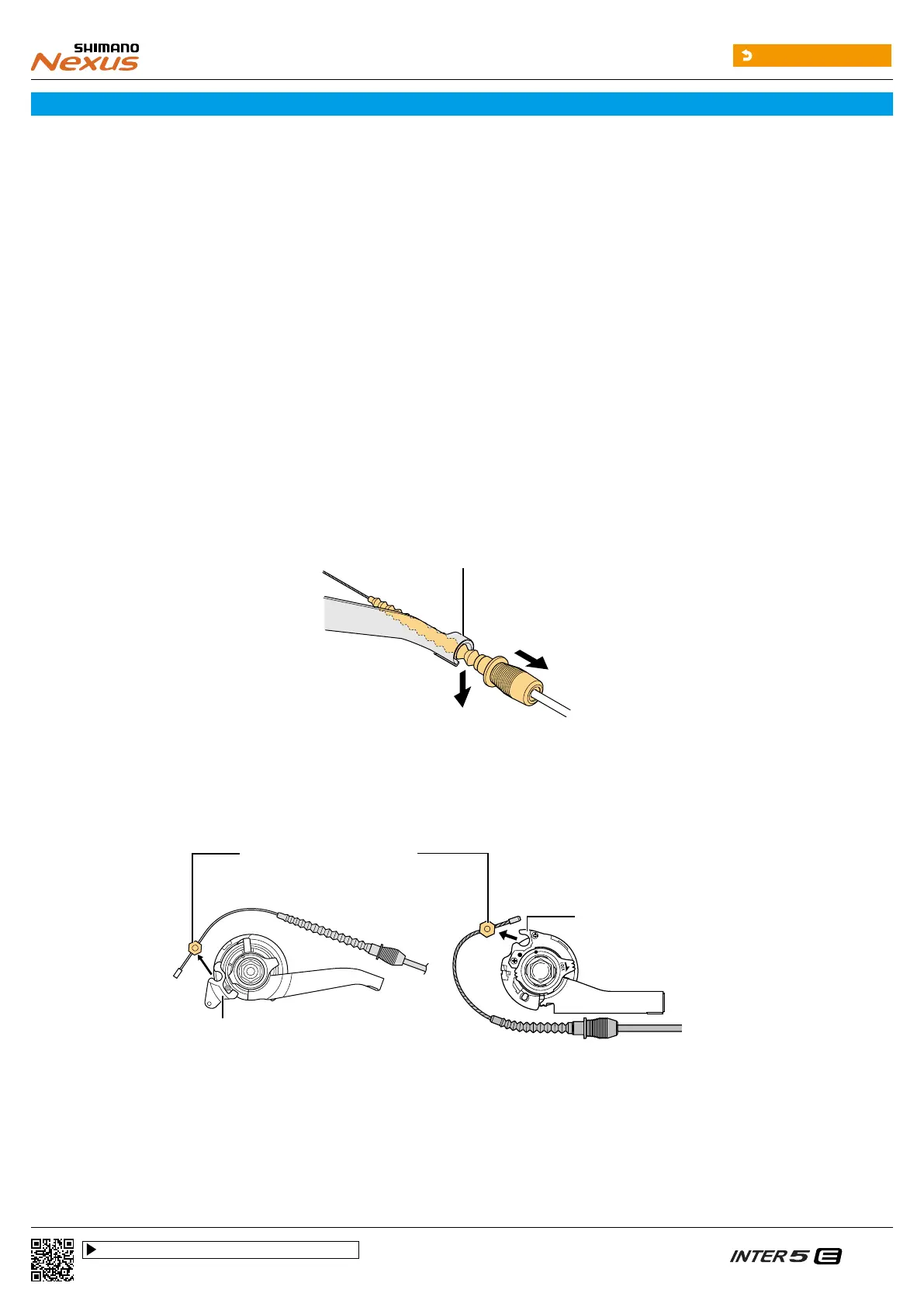

2. Pull the outer casing out from the outer casing holder.
Outer casing holder
(2)
(1)
3. Remove the inner cable from the pulley guide, and remove the inner
cable mounting bolt unit.
Inner cable mounting
bolt unit
Cassette joint pulley
Cassette joint pulley
