2

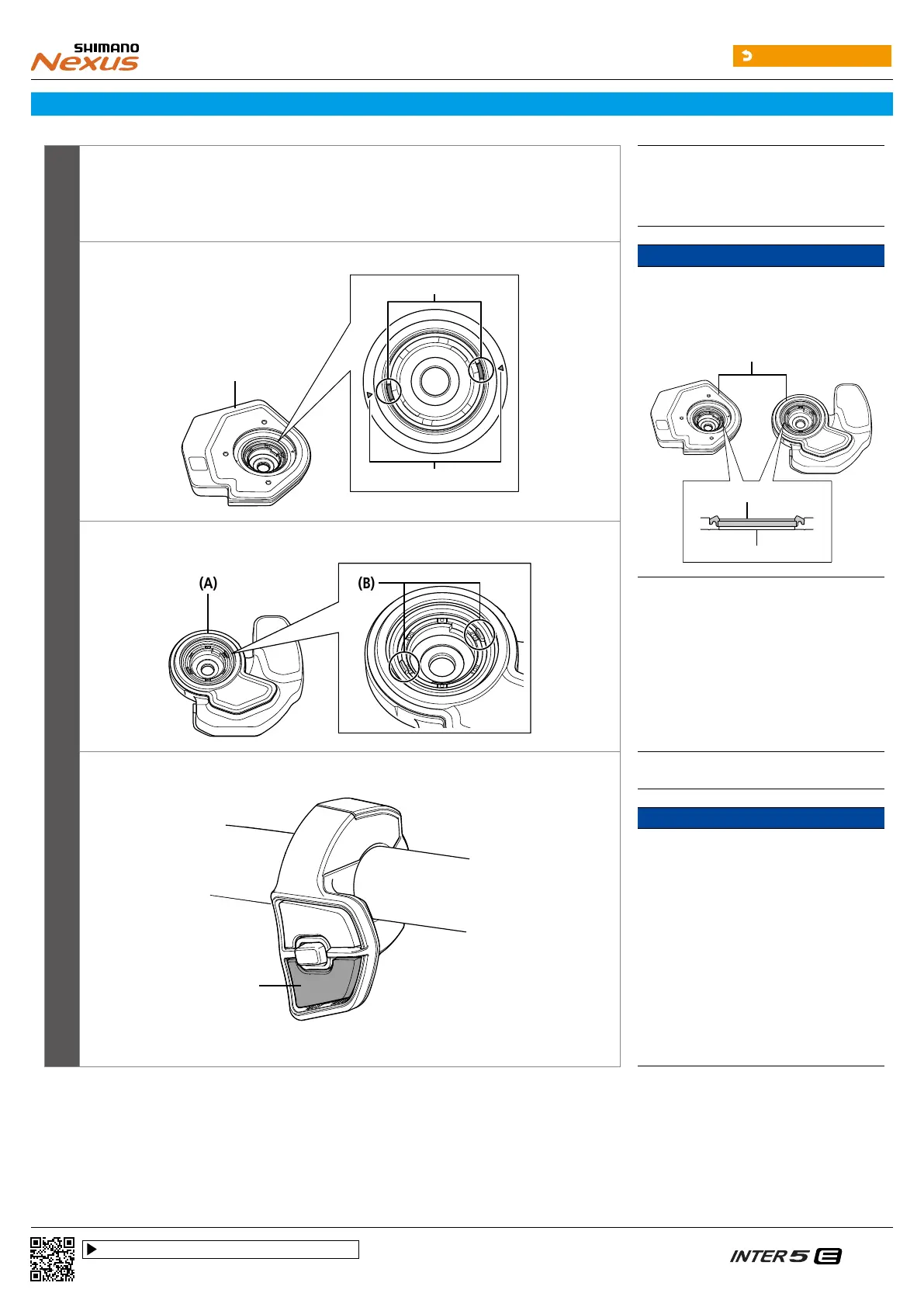

Make sure that the two protrusions on the inside of the motor unit are at the initial
positions.
• For MU-UR500, confirm that the mark and protrusions are aligned.
• For MU-UR510, confirm that the protrusions are positioned as shown in the illustration.
(A) Inside motor unit
(B) Protrusion
(C) Mark (MU-UR500)
NOTICE
Check that the rubber seal is attached. If the
rubber seal is not attached, attach as shown in
the illustration.
MU-UR500 MU-UR510
Rubber seal
Motor unit
Inside motor unit
MU-UR500
(A)
(B)
(C)
MU-UR510
(B)
(A)
(A)
(A) Shifting switch
NOTICE
The motor unit is set at the initial position
when it is shipped; therefore, install it
without changing the position. If the motor
unit may not be at the initial position, push
the shifting switch ten or more times to move
the protrusions on the motor unit
counterclockwise (check from the inside of
the motor unit). (Check the shifting up and
down of the shifting switch in advance as it
may have been switched by customization.) If
the motor unit is installed off the initial
position, some gears may become unavailable
and the hub or the motor unit may be
damaged.
