NOTICE
• Note the orientation of the sprocket and right hand dust cap.
Specifications
Applicable sprockets
Outward assembling Inward assembling
A
16T-23T 20T-23T
B
16T-23T
INTER-5E
24T, 27T, 30T 24T, 27T, 30T
Specification A
If the sprocket is an inward assembling sprocket with 19T or fewer or for belt drive
specifications, right hand dust cap A will come into contact with the chain or
pulley so specification B should be used instead.
Specification B
If the sprocket is an inward assembling sprocket with 16T and 3 mm teeth or for
belt drive specifications, remove right hand dust cap B before use.

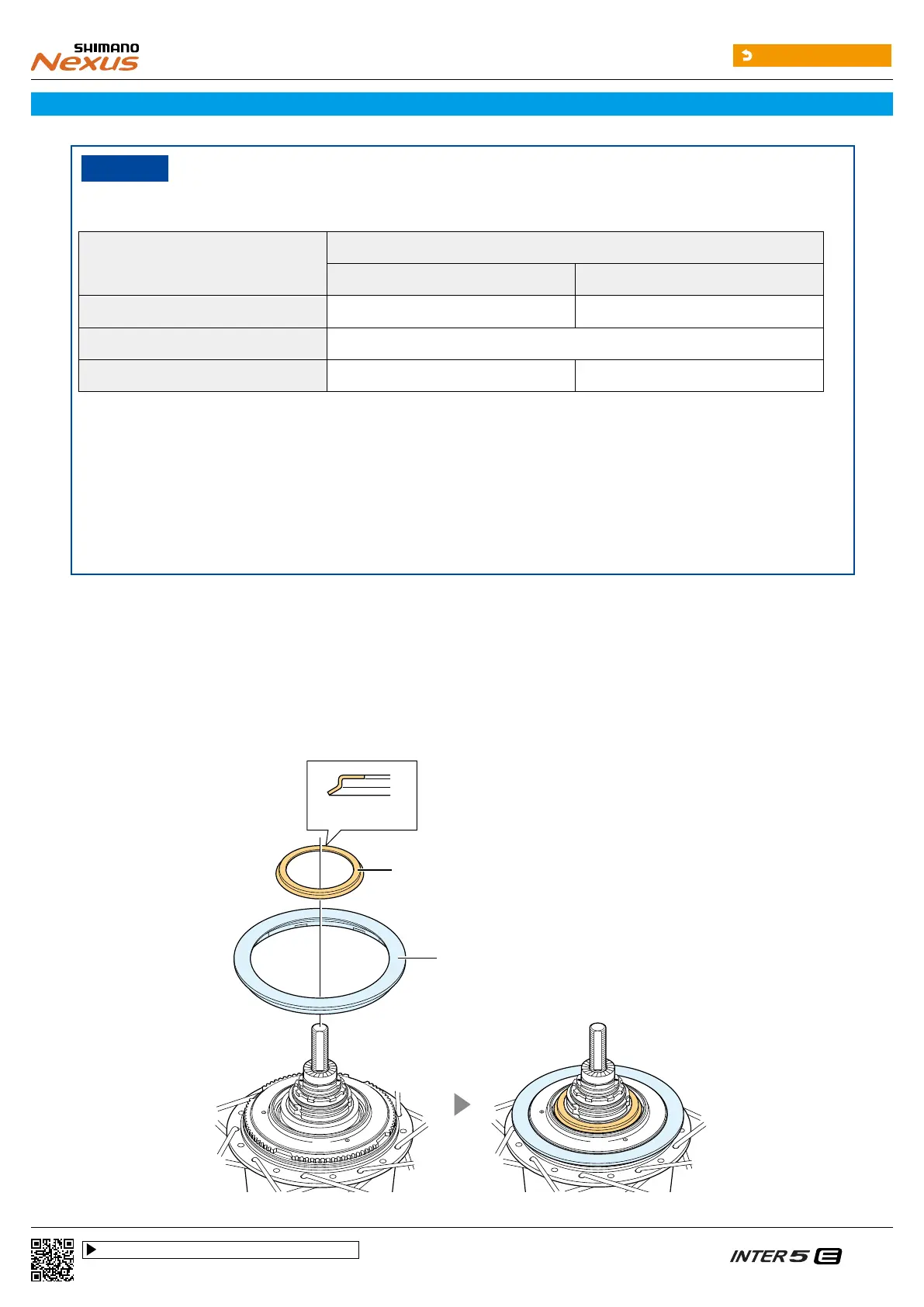

Installing the sprocket (with chain guard)
1. Install the chain guard and right hand dust cap.
Note the orientation of the right hand dust cap when installing it.
Right hand dust cap B
Chain guard
(z)
