Dealer’s Manual (SG-C7000-5V / SG-C7000-5R / SG-C7000-5C / SG-C7000-5D)
Return to index page
Click here for the latest Dealer's Manual

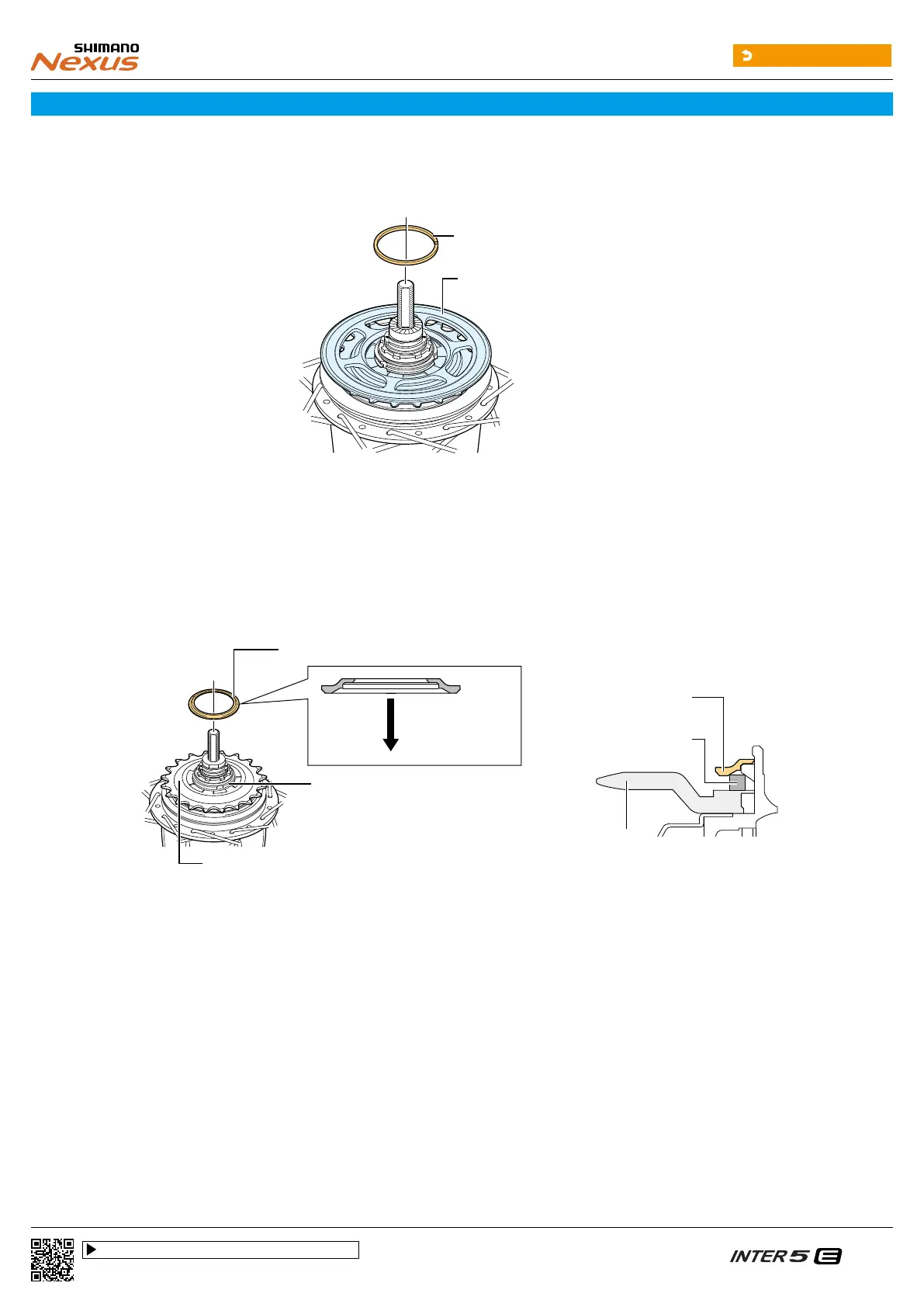

2. Install the sprocket with the guard plate facing outward, and secure it in
place with the snap ring.
Guard plate
Snap ring
Installation of the cassette joint to the hub
1. Install the driver cap.
Note the orientation of the driver cap.
Driver side
Driver
Driver cap
Driver side cap
Snap ring
Sprocket
Sprocket
