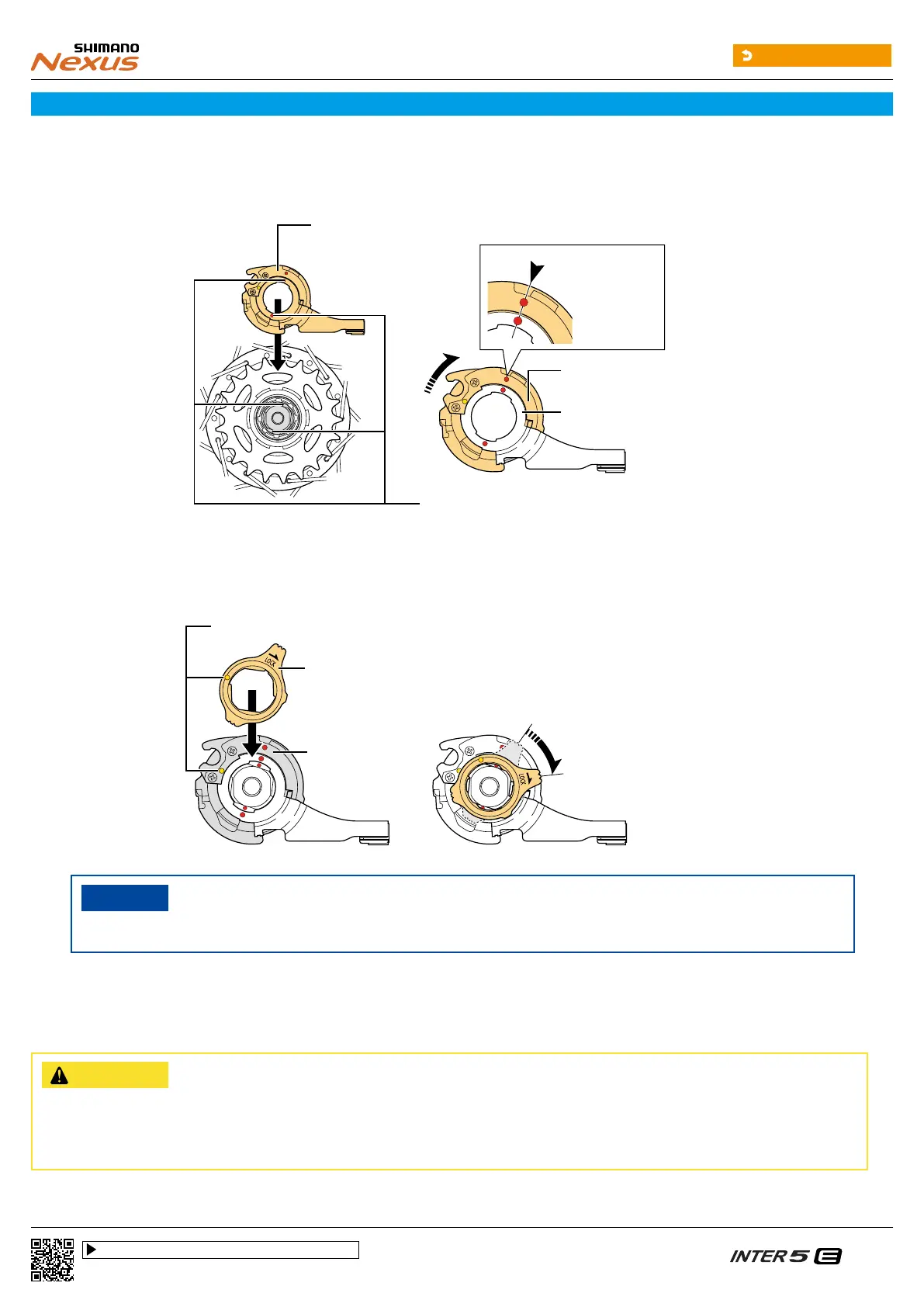

2. Turn the pulley to align the mark (red or yellow) of the cassette joint, and
install to the hub body.
Should be
aligned
Cassette joint
Pulley
Bracket
Cassette joint mark
3. Turn the cassette joint mounting ring 45° clockwise to secure it.
Cassette joint mounting ring
Pulley
NOTICE
• Hold down the cassette joint bracket securely when performing work.
Installing the disc brake rotor
CAUTION
• Wear gloves when handling the disc brake rotor. Failure to do so may result in cuts to
your hands.
