Dealer’s Manual (SG-C7000-5V / SG-C7000-5R / SG-C7000-5C / SG-C7000-5D)
Return to index page
Click here for the latest Dealer's Manual
CENTER LOCK type

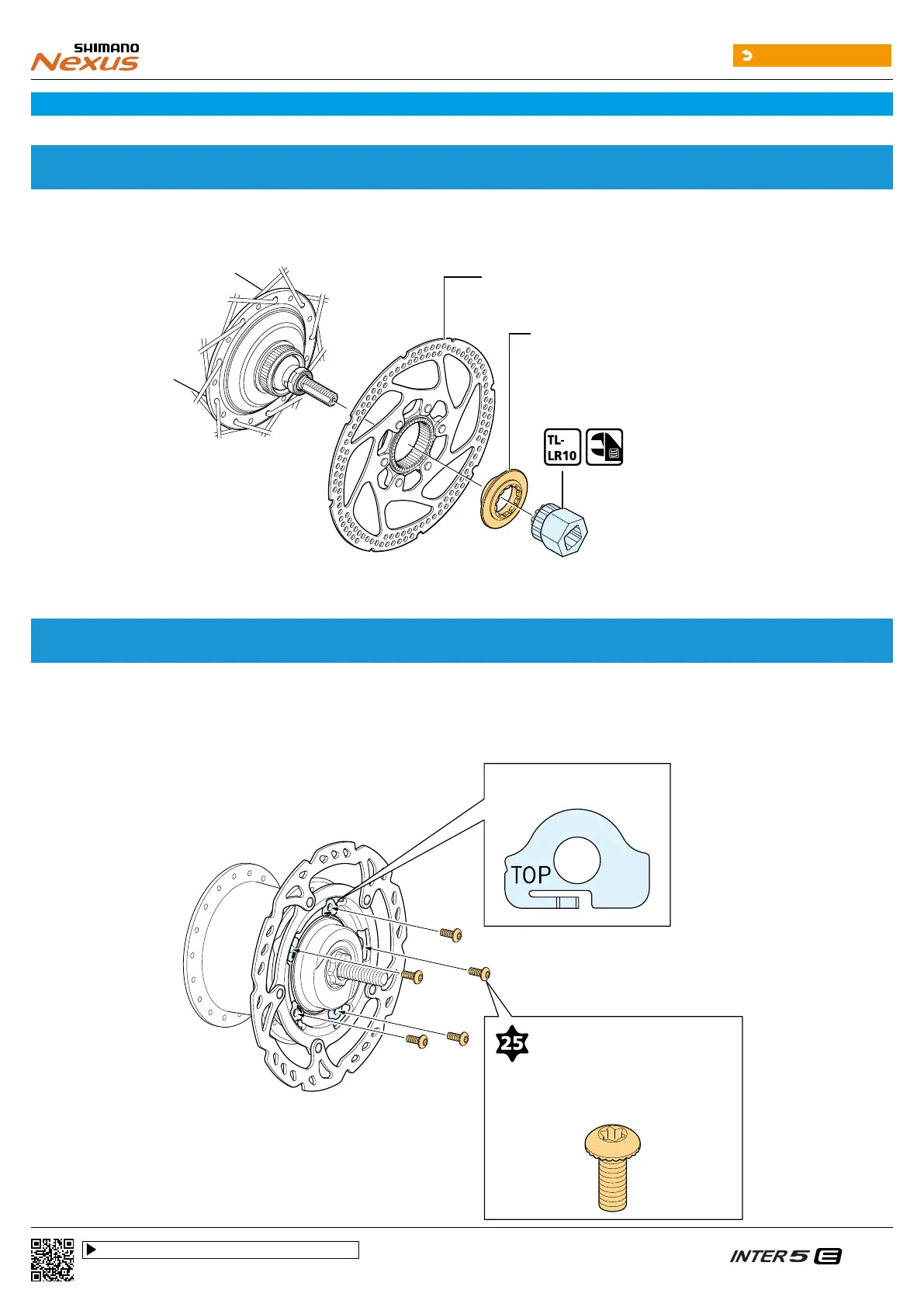

1. Secure the disc brake rotor as shown in the figure.
Disc brake rotor
Disc brake rotor
installation ring
40 N·m
5 screw type (with lock washers)
1. Temporarily secure the disc brake rotor and the disc brake rotor lock
washers to the hub as shown in the figure.
Lock washer
2 - 4 N·m
Disc brake rotor fixing screw
