Dealer’s Manual (SG-C7000-5V / SG-C7000-5R / SG-C7000-5C / SG-C7000-5D)
Return to index page
Click here for the latest Dealer's Manual
NOTICE

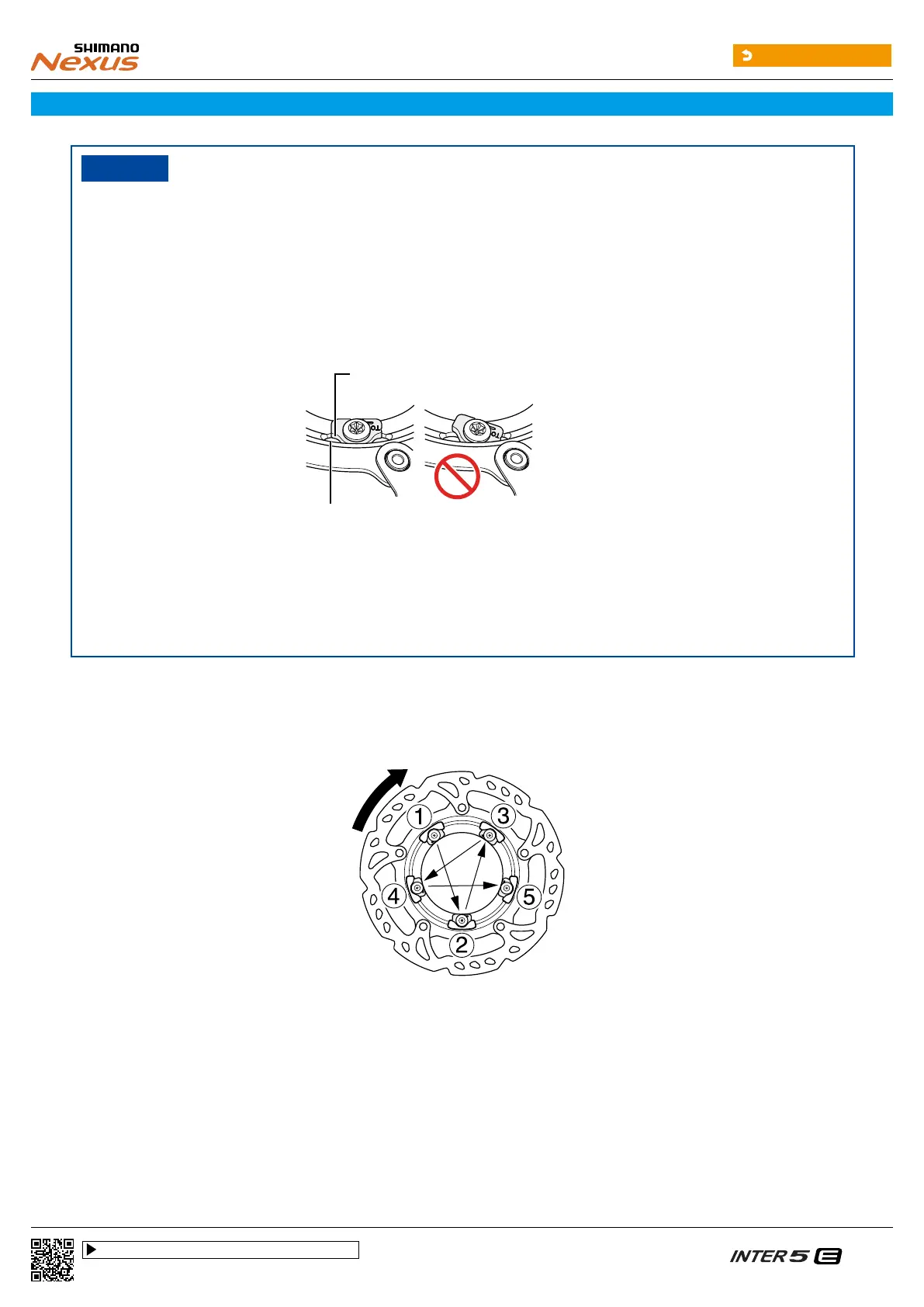

• Fit the lock washers so that the marking “TOP” is visible.
• Ensure that the hooked parts of the lock washers are securely caught on the
notches in the disc brake rotor and then tighten on the lock washers with the
disc brake rotor fixing screw. If tightened while the hooked parts are against the
surface of the disc brake rotor, the lock washers and its hooked parts will
become deformed.
Hooked part of lock washer
Notch in disc brake rotor
• The lock washers are not reusable. Always use new lock washers when installing
the disc brake rotor.
• Use the dedicated disc brake rotor fixing screws.
2. Secure the disc brake rotor with force applied in the clockwise direction.
Tighten the disc brake rotor fixing screws in the order shown in the figure.
To Next Page
