Dealer’s Manual (SG-C7000-5V / SG-C7000-5R / SG-C7000-5C / SG-C7000-5D)
Return to index page
Click here for the latest Dealer's Manual

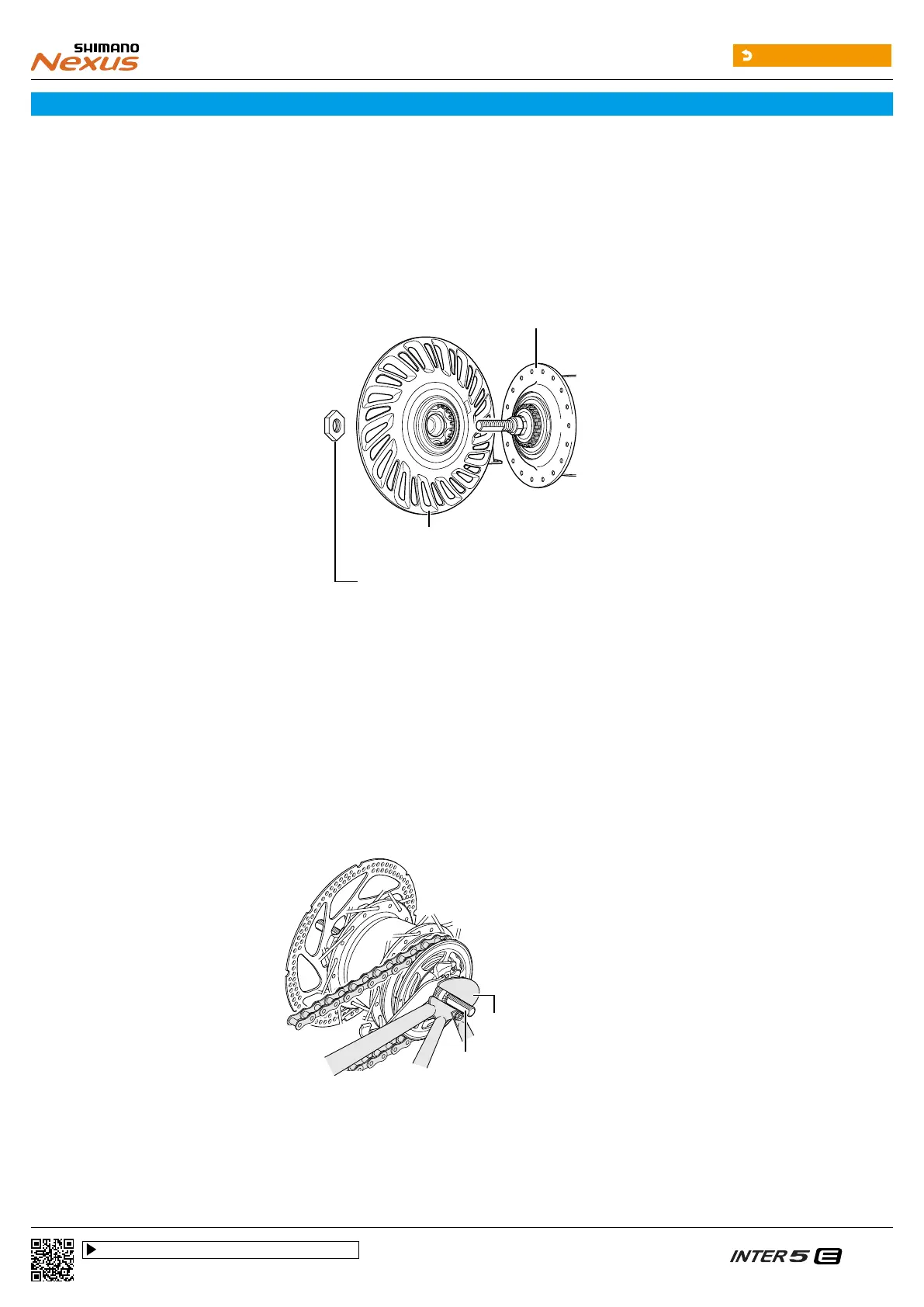

Installing the INTER M brake to the hub body
1. Engage the splines on the hub body with the splines on the INTER M
brake, and then temporarily tighten with the brake unit fixing nut or the
brake unit fixing washer.
INTER M brake
Brake unit fixing nut/
brake unit fixing washer
Hub body
Installation of the hub to the frame
1. Mount the chain on the sprocket, and then set the hub axle into the
dropout.
When not using chain tensioner
LOCK
Dropout
Hub axle
