Dealer’s Manual (SG-C7000-5V / SG-C7000-5R / SG-C7000-5C / SG-C7000-5D)
Return to index page
Click here for the latest Dealer's Manual
When using chain tensioner

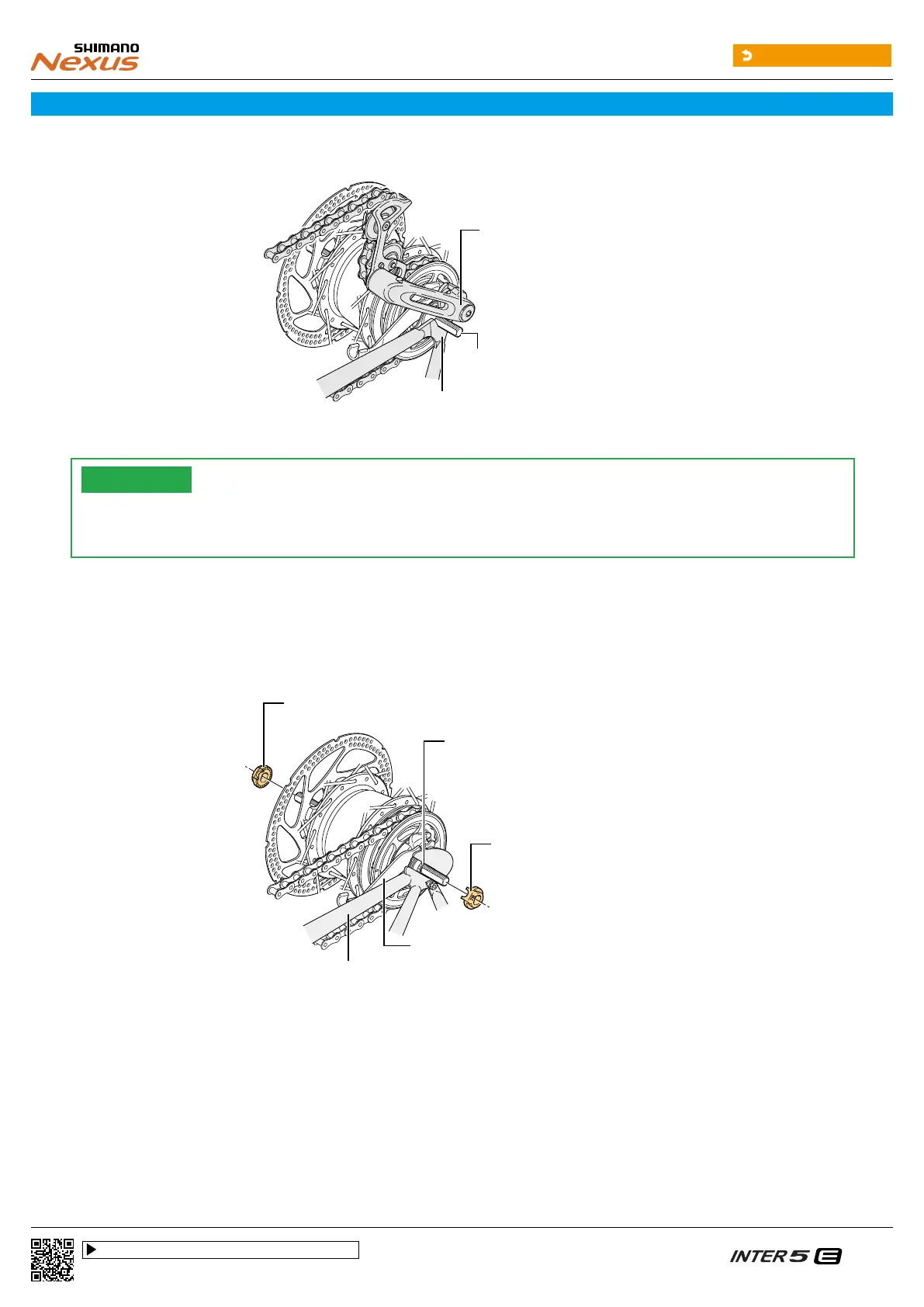

Chain tensioner
Hub axle
Dropout
TECH TIPS
• When using the chain tensioner, be sure to read the attached instruction manual
for the CT-S500 chain tensioner.
2. Place non-turn washers onto the right and left of the hub axle.
Turn the cassette joint so that the protrusions of the non-turn washers fit into the grooves in
the dropouts and align the joint to be installed almost parallel to the chainstay.
LOCK
Non-turn washer (for left-side use)
Dropout groove
Chainstay
Cassette joint
Non-turn washer
(for right-side use)
