Shimano Steps SC-E6100 - Notation method for operations

7

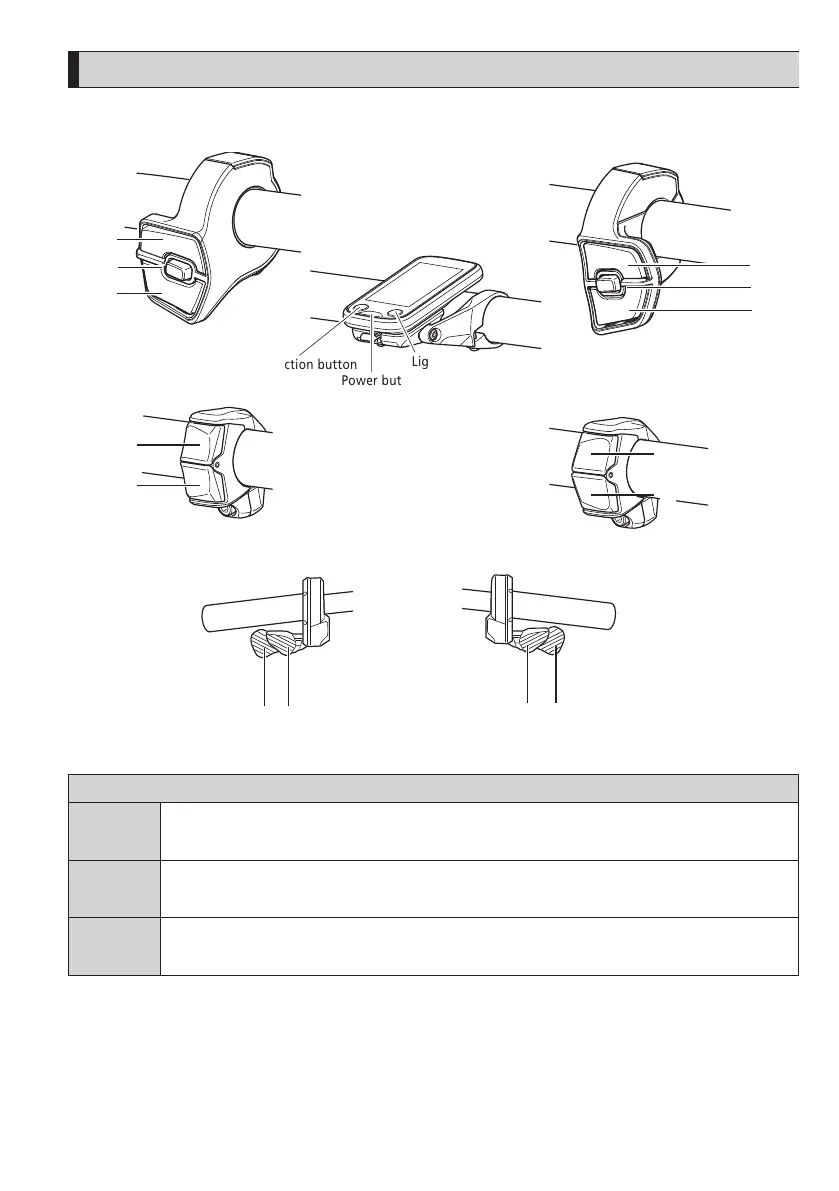

Names of parts
This product is operated with the function button on the main body and the switch unit included in the assist bicycle.
X
A
Y
3-switch type switch unit (left)
X
A
Y
3-switch type switch unit (right)
Y X
機能ボタン
X Y
MTB type switch unit (left)
Y X
機能ボタン
X Y
MTB type switch unit (right)
Y
X
Y
X
2-switch type switch unit (left)
Y
X
Y
X
2-switch type switch unit (right)
SC-E6100
Light button
Power button
Function button
The operation for each button/switch is indicated below.
Cycle computer
Function
Button*1
When riding: Switching traveling data display
When setting: Switch screen or confirm setting changes
Power
button
Main power ON/OFF
Light button Light ON/OFF
*1 The operation performed when the button is held down differs according to whether a switch unit with an assist function
assigned is connected.
• If a switch unit with an assist function assigned is connected: Display setting menu screen
• If a switch unit with an assist function assigned is not connected: Change assist mode
