Shimano SW-EN600-L Dealer's Manual

3-switch type switch unit
For models: SW-EN600-L, SW-EN600-R
The 3-switch type switch unit can be installed to a Ø22.2 handlebar. This section explains the installation method
when wiring from the switch unit along the handlebar on the outside.

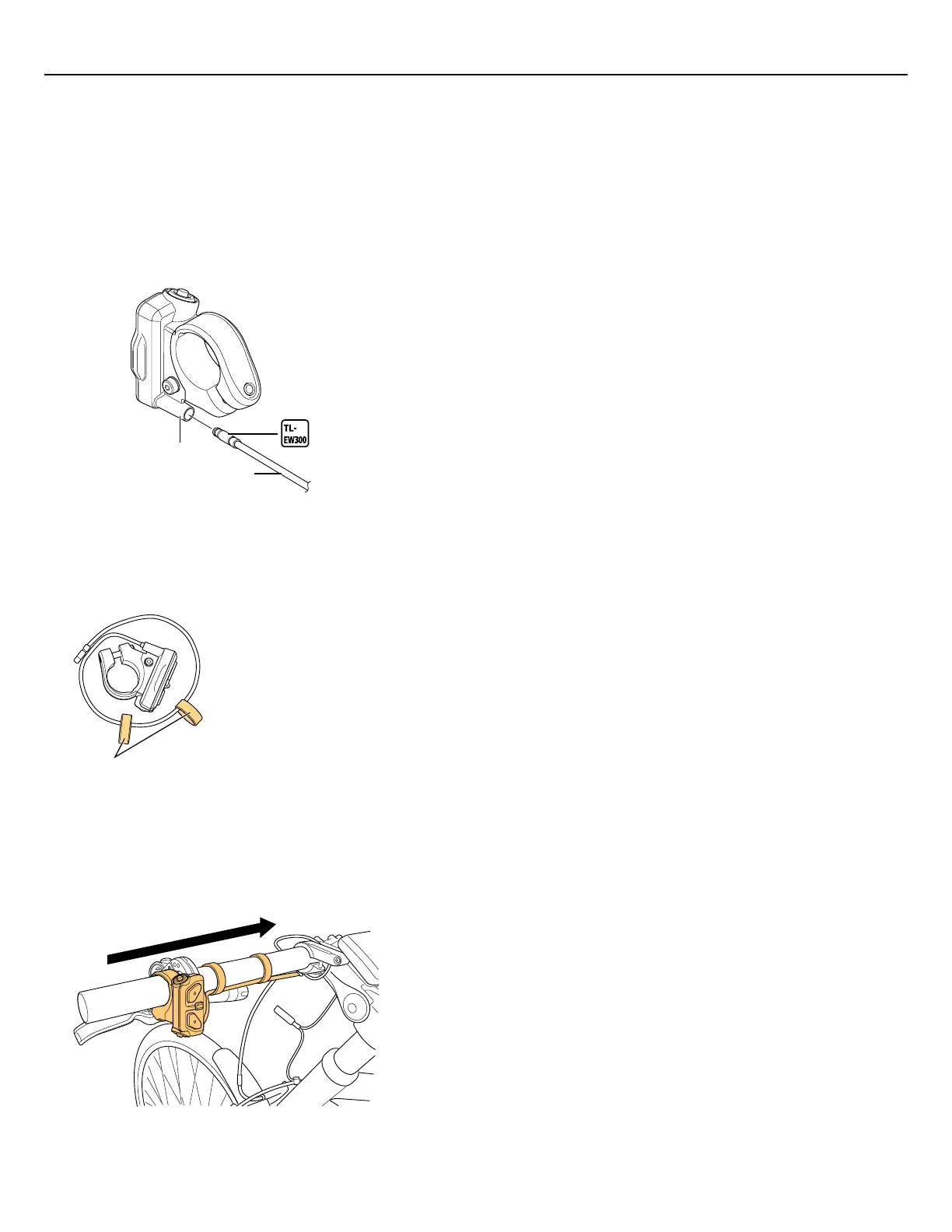

Connect the electric wire.
Electric wire (sold separately)
E-TUBE port
1.
Slide the cord bands over the electric wire.
Adjust the number of cord bands according to the length of the handlebar.
Cord band
EW-CB300 (EW-SD300 type)
2.
Push the cord bands and switch unit along from the edge of the handlebar.
Make sure the electric wire of the switch unit is facing downward.
3.
Installation/removal
Installing the switch unit
32
