Wiring around the cockpit (other cases)

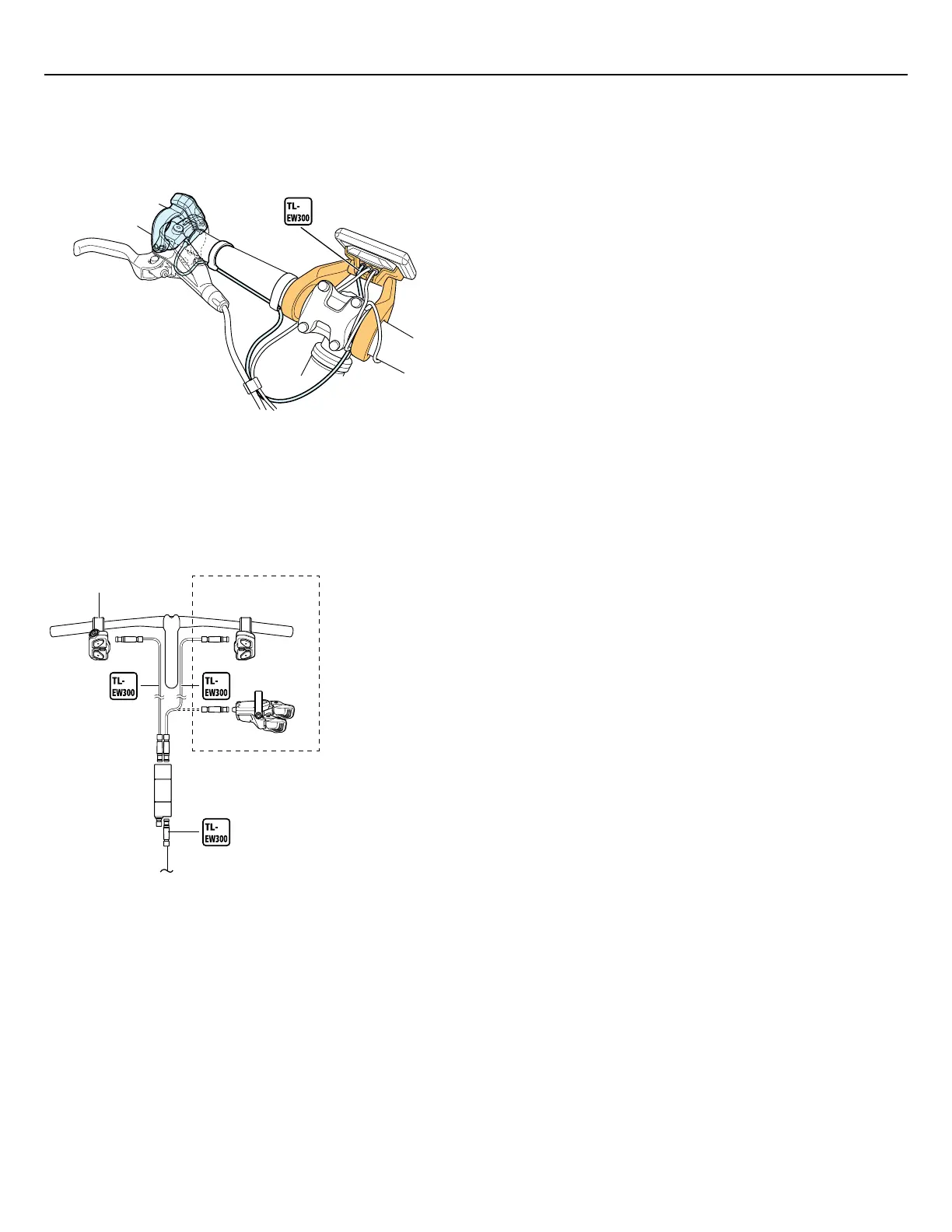

A cockpit configuration such as the following may be used, depending on the bicycle.
Example of configuration without cycle computer
To drive unit
Right switch
Left switch
Example of configuration without cycle computer and left switch
Connect the electric wire to the E-TUBE port on the bracket.
Wrap any slack around the portion of the handlebar between the cycle computer and stem prior to
connecting.
3.
Installation/removal
Wiring around the cockpit (other cases)
