Installing the switch unit
Install the assist switch and shift switch (for electronic gear shifting) to the handlebar.
When installing parts onto a carbon frame/handlebar, confirm the recommended tightening torque with the
carbon frame or handlebar manufacturer. This will prevent damage to the frame/handlebar due to over-torquing
or inadequate securing of the components.

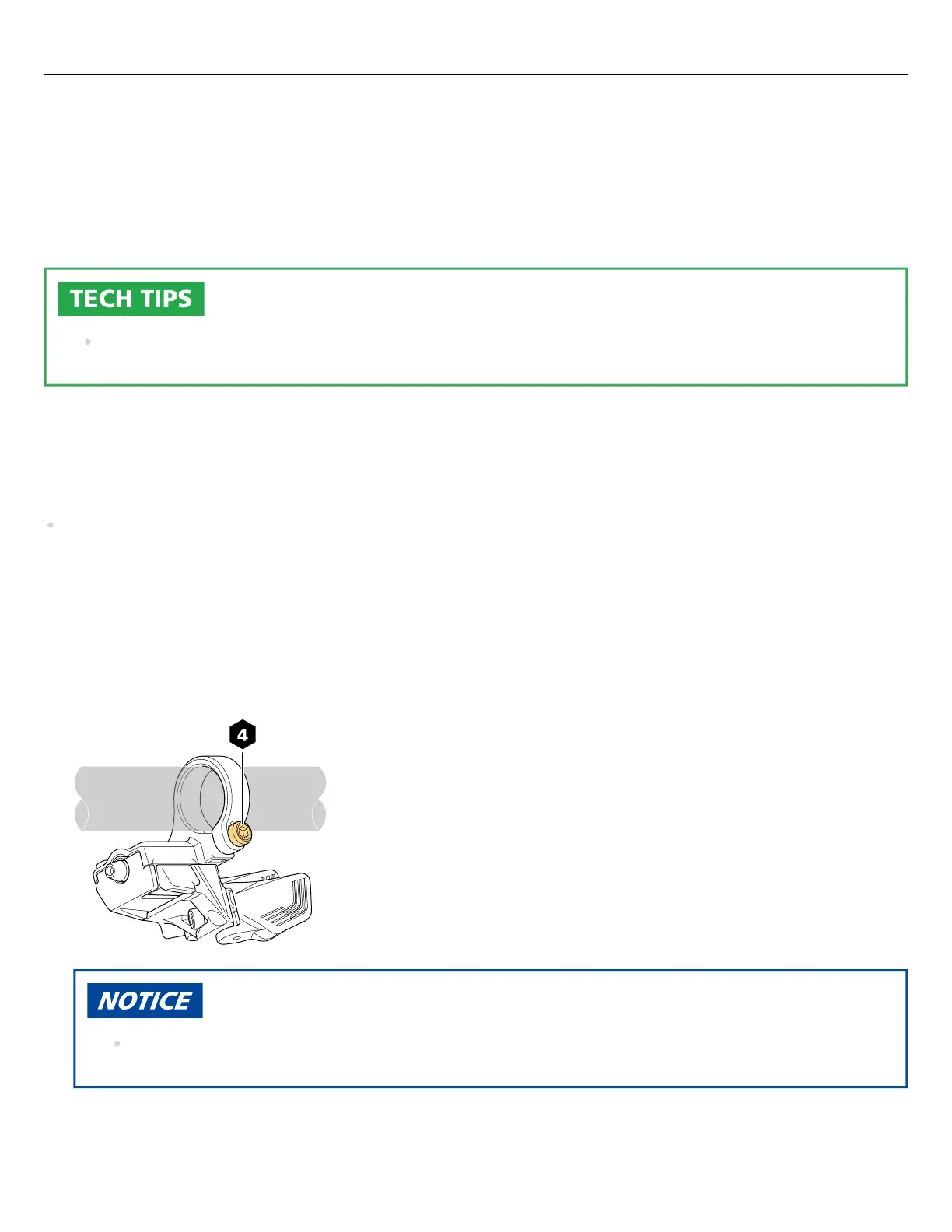

MTB type switch unit
For model: SW-M8150
Standard type
To remove the switch unit, reverse the following procedure.
The MTB type switch unit can be installed to Ø22.2 handlebars.
Tighten the clamp screw.
Use a handle grip with a maximum outer diameter of Ø36 mm or less.
Check that the brake and gear shifting operations are not obstructed.
1.
Installation/removal
Installing the switch unit
26
To Next Page
