Connection with all SHIMANO STEPS components
To connect all SHIMANO STEPS components installed to the assist bicycle, connect the cycle computer to the PC.

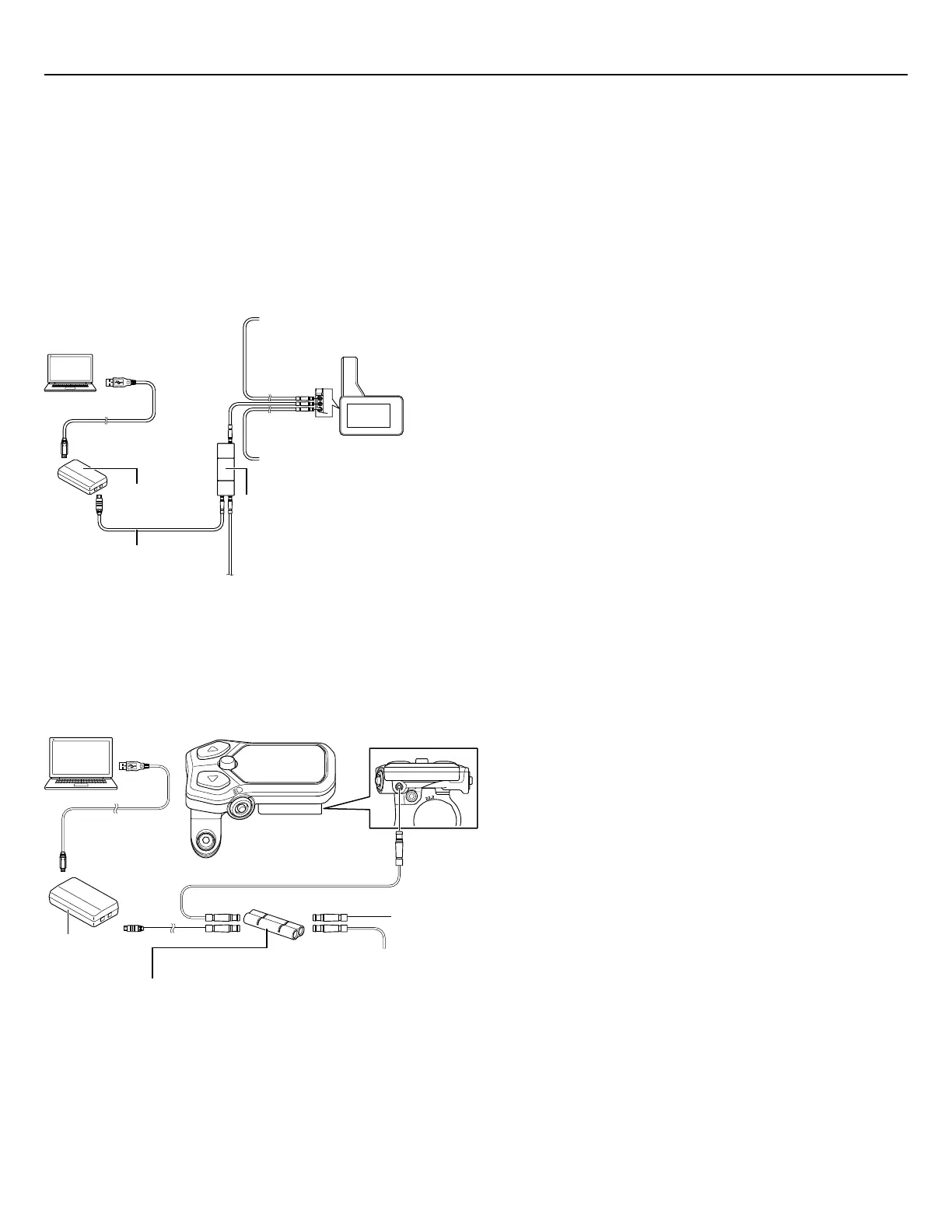

Clamp band type cycle computer
Refer to the figure when connecting.
SM-PCE02
PC link cable
Connect to drive unit or satellite
system ON/OFF switch
Connect to switch unit
Connect to switch unit
EW-JC304
(EW-SD300 type)
Switch unit integrated type cycle computer
Refer to the figure when connecting.
SM-PCE02
EW-JC304 (EW-SD300 type)
Connect to switch unit
Connect to drive unit
Connection and communication with devices
Connection with all SHIMANO STEPS components
46
