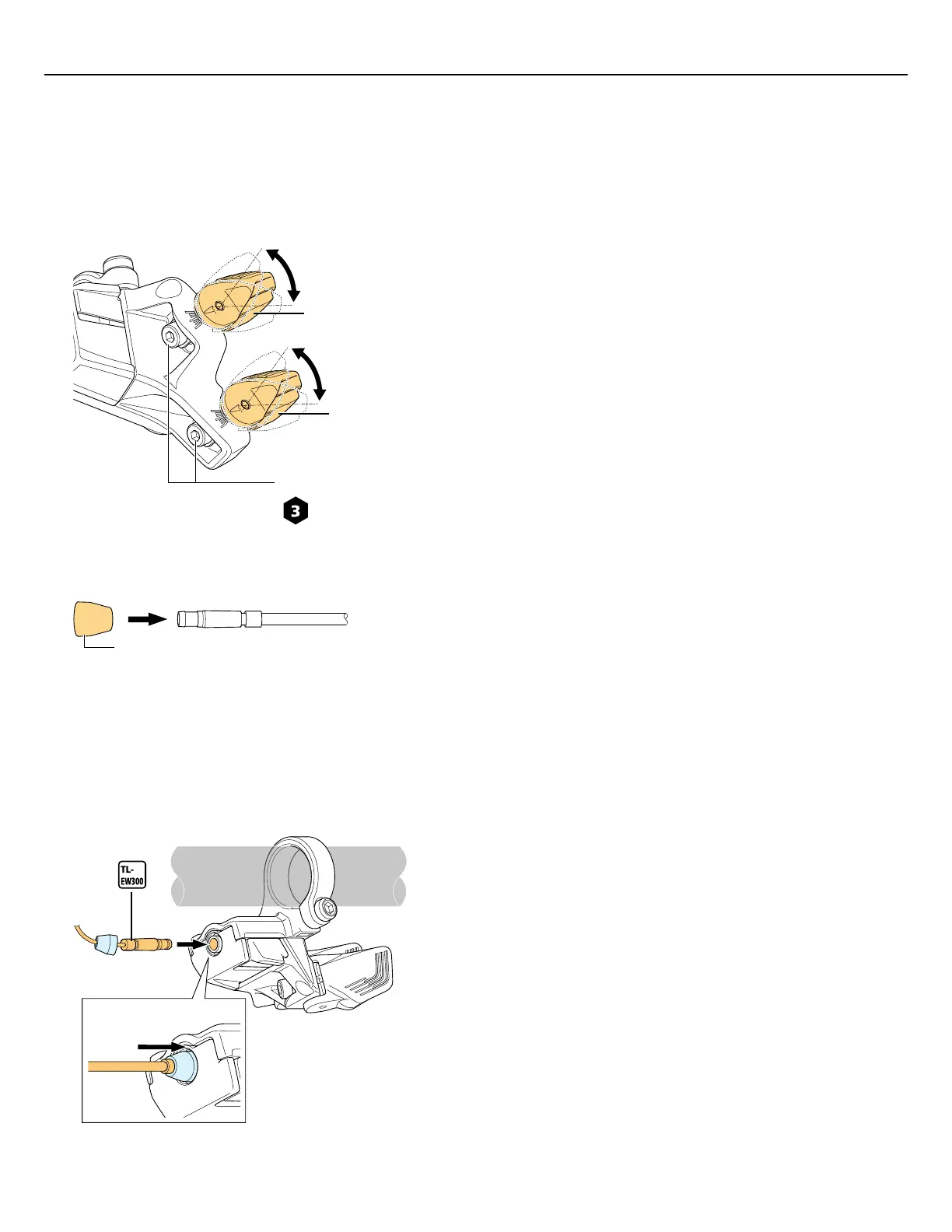

Adjust the installation angles of lever X and lever Y as required.
Lever X
Lever Y
Fixing screw
2 N·m
Loosen the fixing screws.(1)
Adjust the installation angles of lever X and lever Y.(2)
Tighten the fixing screws.(3)
2.
Set the rubber cover over the electric wire.
Rubber cover
3.
Connect the electric wire.
After connecting the electric wire, slide the rubber cover over it.
When internally routing the wire through the handlebar, refer to the manual of the assist bicycle or
handlebar.
(1)
(2)
4.
Installation/removal
Installing the switch unit
27
