Shimano SW-EN600-L Dealer's Manual

I-SPEC EV
For information on brake levers that can be installed, check the compatibility information (
https://productinfo.shimano.com/#/com ).

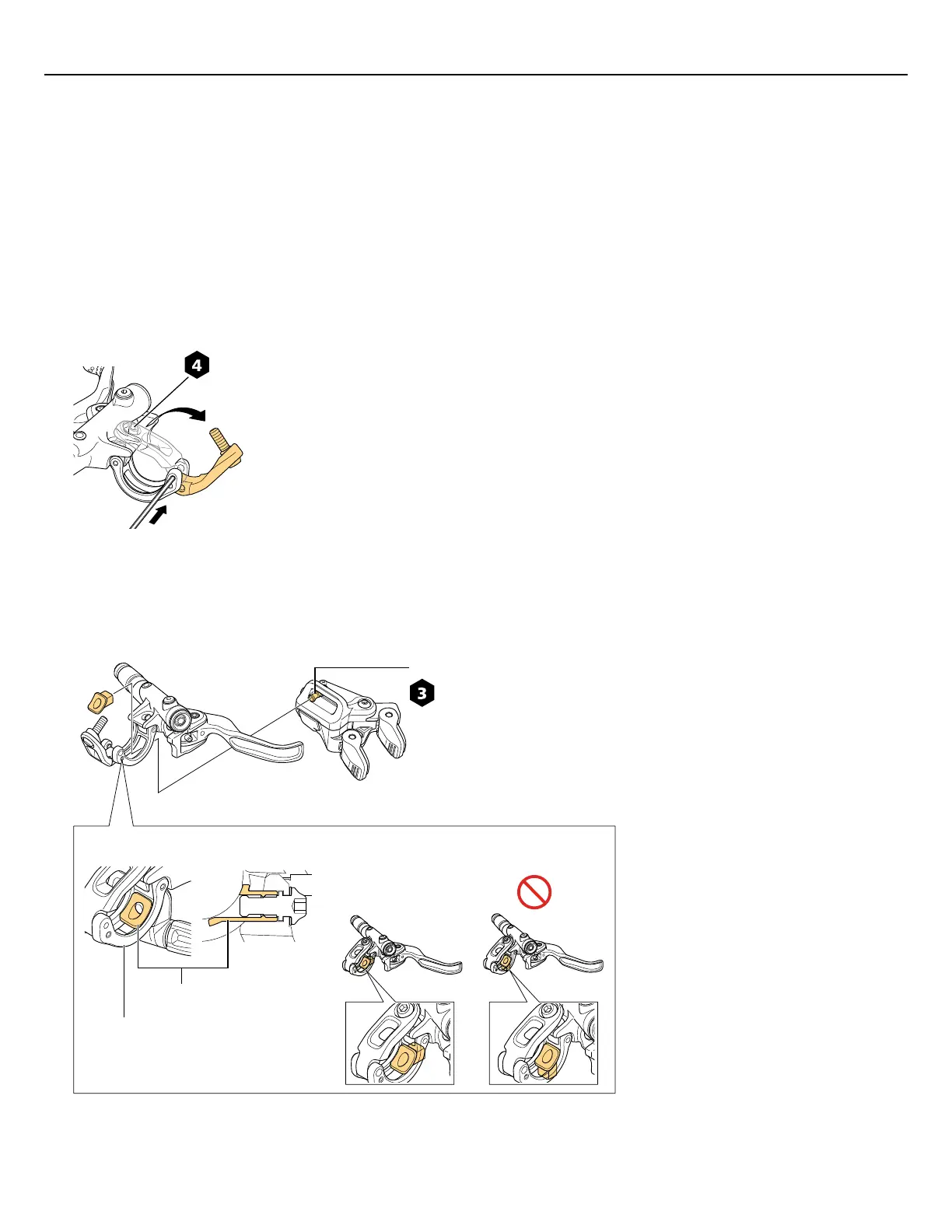

Open the clamp band of the brake lever.
Fixing screw
(1)
(2)
Loosen the fixing screw.(1)
Press the recessed area of the clamp band with a tool such as a 2 mm hexagon wrench to disengage the
safety latch.
(2)
1.
Temporarily attach the switch unit to the clamp band.
Temporarily install with the unit position adjustment bolt as shown in the figure.
Make sure to firmly install the unit position adjustment nut to the clamp band.
Note that the unit position adjustment nut has
an installation direction.
Clamp band
Unit position adjustment nut
Installation state (cross section)
(Temporary)
Unit position adjustment bolt
2.
Installation/removal
Installing the switch unit
28
