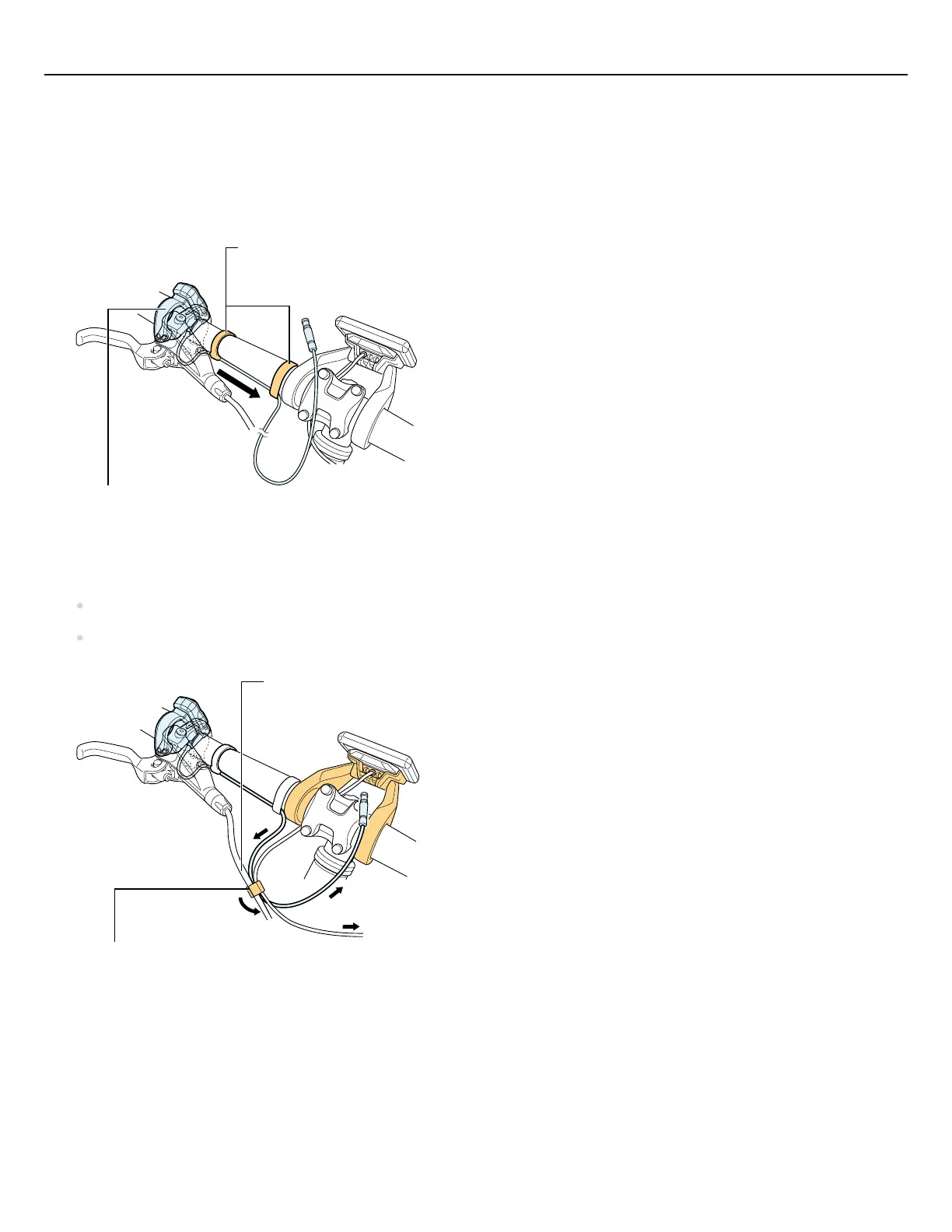

When using cord bands and a cord clip
Secure the switch unit's electric wire.
Determine the locations of the cord bands, then secure the electric wire in place along the handlebar so that
there is no slack.
Switch unit
Cord band
EW-CB300 (EW-SD300 type)
1.
Bind the electric wires and the brake outer casing or brake hose together with a cord clip.
Use a cord clip to bind the brake outer casing or brake hose and the following electric wires:
Brake hose or brake outer
casing
Cord clip
EW-CL300 (EW-SD300 type)
To drive unit
Switch unit's electric wire
Electric wire to connect the cycle computer and drive unit
2.
Installation/removal
Wiring around the cockpit (bracket installation type cycle computer)
42
To Next Page
