Example: Routing the electric wire
Use cord bands and a cord clip to organize the wiring around the cockpit.
When using cord bands
Secure the switch unit's electric wire.

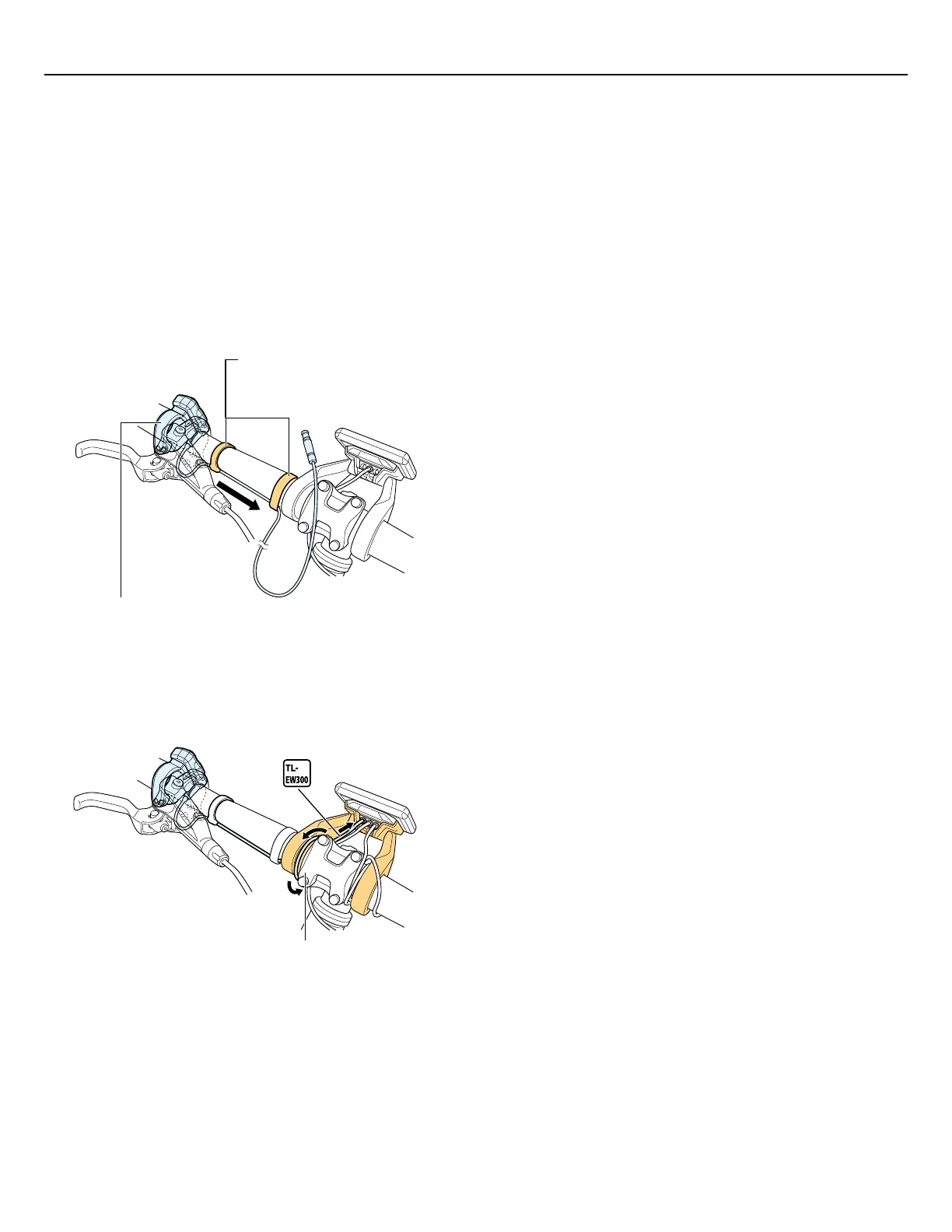

Determine the locations of the cord bands, then secure the electric wire in place along the handlebar so that
there is no slack.
Switch unit
Cord band
EW-CB300 (EW-SD300 type)
1.
Connect the electric wire to the E-TUBE port on the bracket.
Wrap any slack around the portion of the handlebar between the cycle computer and stem prior to
connecting.
2.
Installation/removal
Wiring around the cockpit (bracket installation type cycle computer)
41
To Next Page
